Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

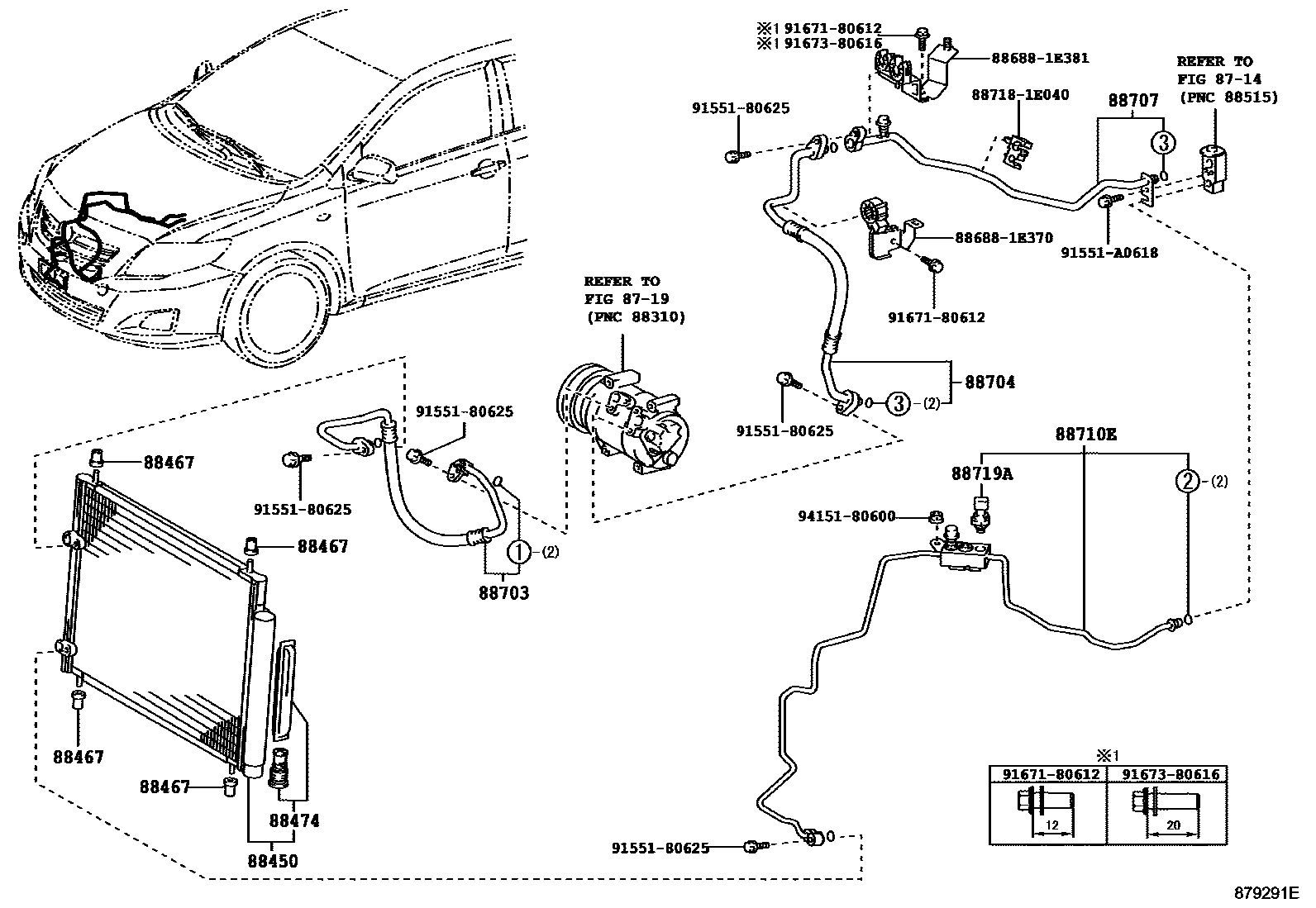

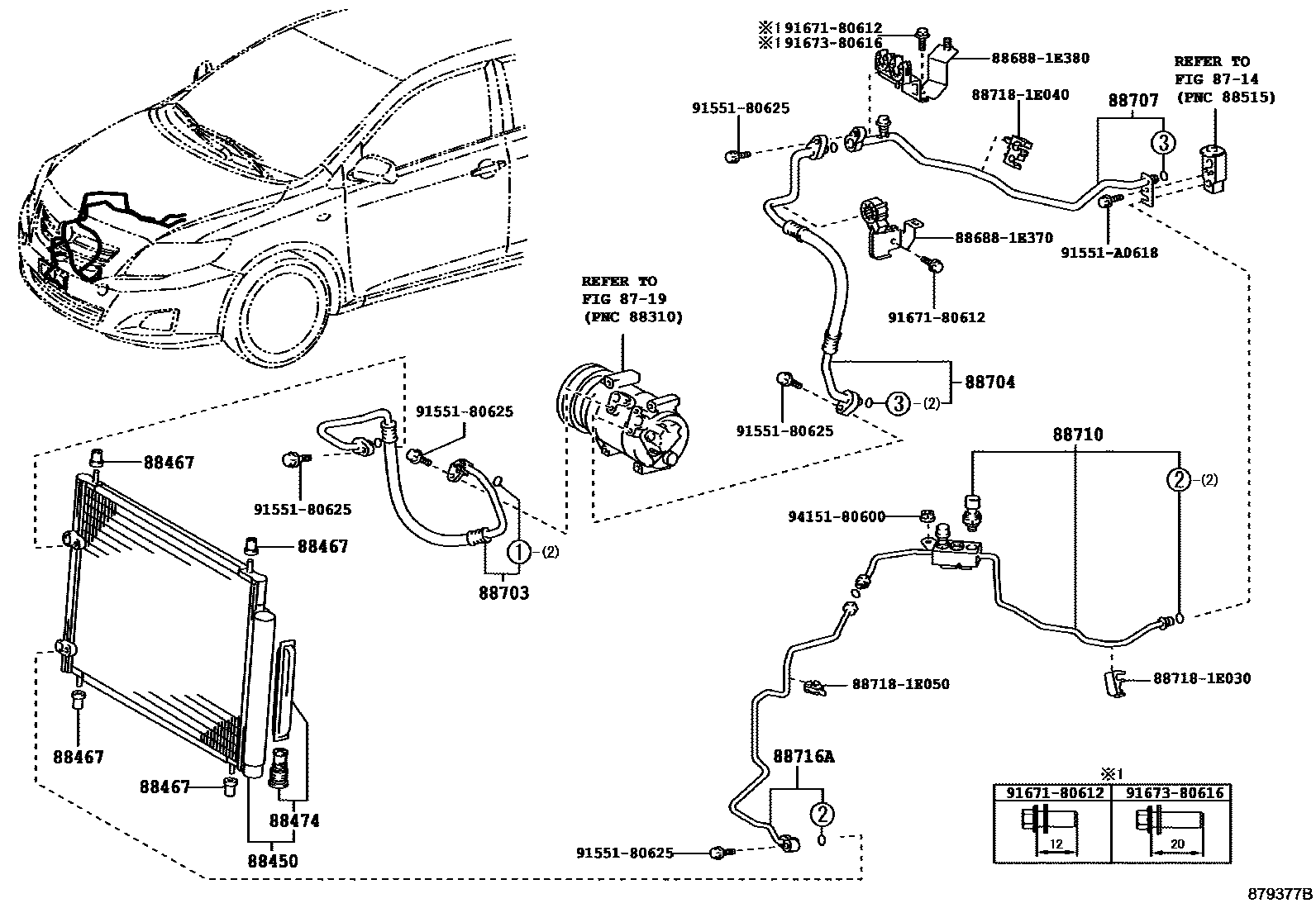

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88450 | Condenser assembly with liquid reservoir | 88450-12280 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12030 |
| 88703 | Discharge hose sub-assembly | 88703-02570 · 88703-12830 |
| 88704 | Oil suction hose sub-assembly | 88704-02820 · 88704-1A181 |
| 88707 | Suction pipe sub-assembly | 88707-12250 |
| 88710 | Air conditioning pipe assembly | 88710-1A020 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-12760 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-1A850 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
