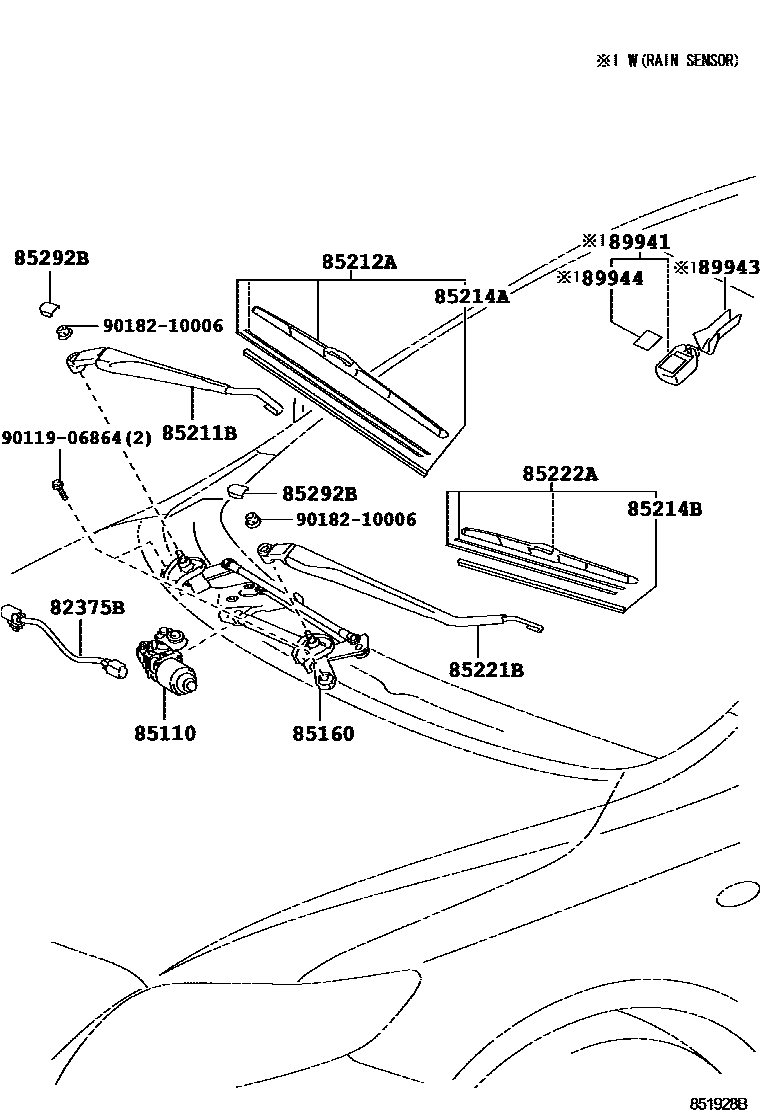

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82375B | Wiper motor wiring harness | 82375-12310 · 82375-12311 |
| 85110 | Windshield wiper motor assembly | 85110-12A40 |
| 85160 | Windshield wiper connecting rod assembly | 85150-12A50 |
| 85211B | Right front wiper arm | 85211-12540 |
| 85212A | Right front wiper blade | 85212-12480 |
| 85214A | Right wiper rubber strip | 85214-68020 |
| 85214B | Left wiper rubber strip | 85214-68030 |
| 85221B | Left front wiper arm | 85221-12470 |
| 85222A | Left front wiper blade | 85222-12860 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-42010 |
| 89943 | Rain sensor cover | 89943-42010 |
| 89944 | Rain sensor tape | 89944-42010 |
