Toyota COROLLA 电子燃油喷射系统 — Figure 8404

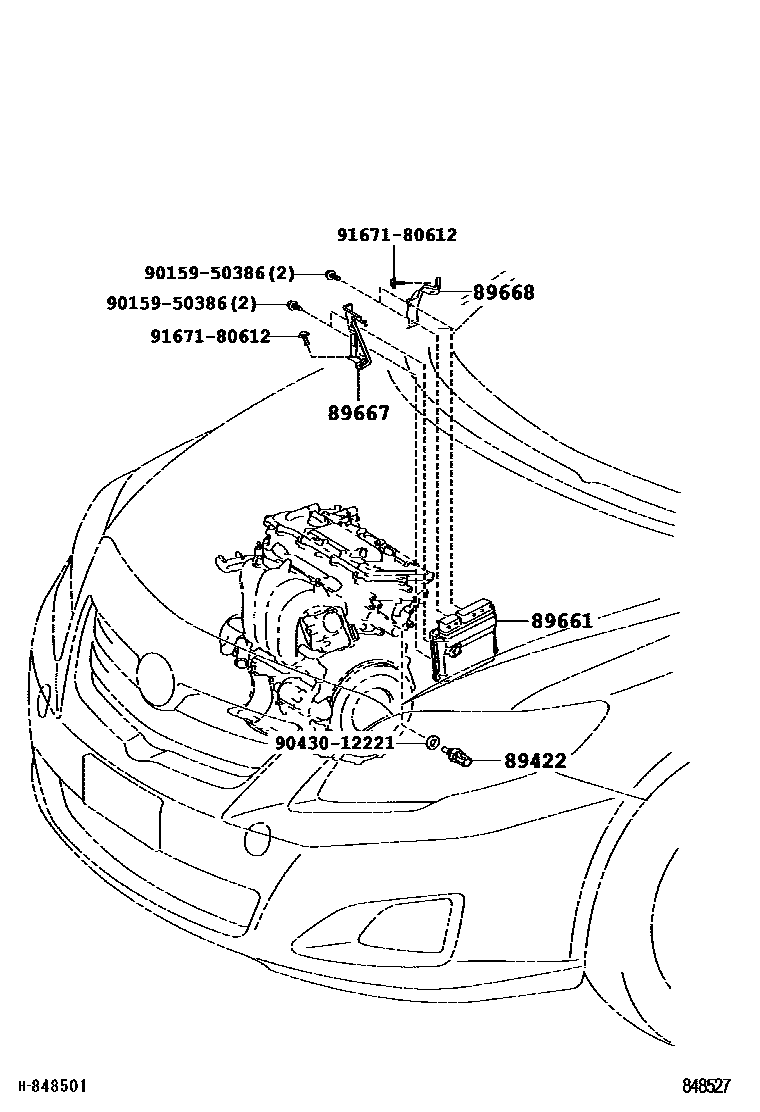

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89661-12C50 · 89661-12C60 · 89661-12K30 · 89661-12K31 · 89661-12K40 · 89661-12K41 · 89661-12K80 · 89661-12K81 |
| 89667 | Engine control ECU bracket | 89667-12210 |
| 89668 | No. 2 engine control ECU bracket | 89668-12120 |
