Toyota COROLLA 仪表 — Figure 8301

Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.

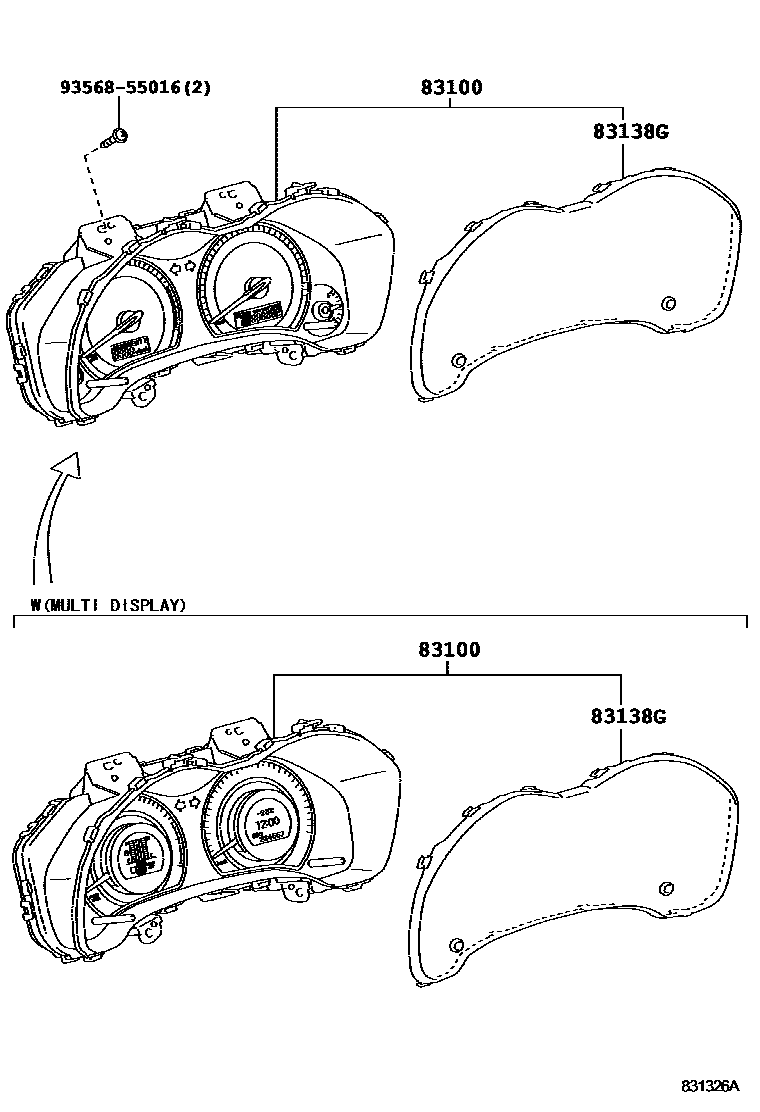

Toyota COROLLA 仪表 EPC diagram — 831326A
仪表 — 831326A (200703 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-0W490 · 83800-0W581 · 83800-0W582 · 83800-0W591 · 83800-0W592 · 83800-0W602 · 83800-0W603 · 83800-0W612 · 83800-0W613 · 83800-0W660 · 83800-0W670 · 83800-0W680 · 83800-0W690 · 83800-0W750 · 83800-0W760 · 83800-0W770 · 83800-0W780
83138GInstrument cluster glass83852-02N90 · 83852-02P50
