Toyota COROLLA 线束和卡夹 — Figure 8202

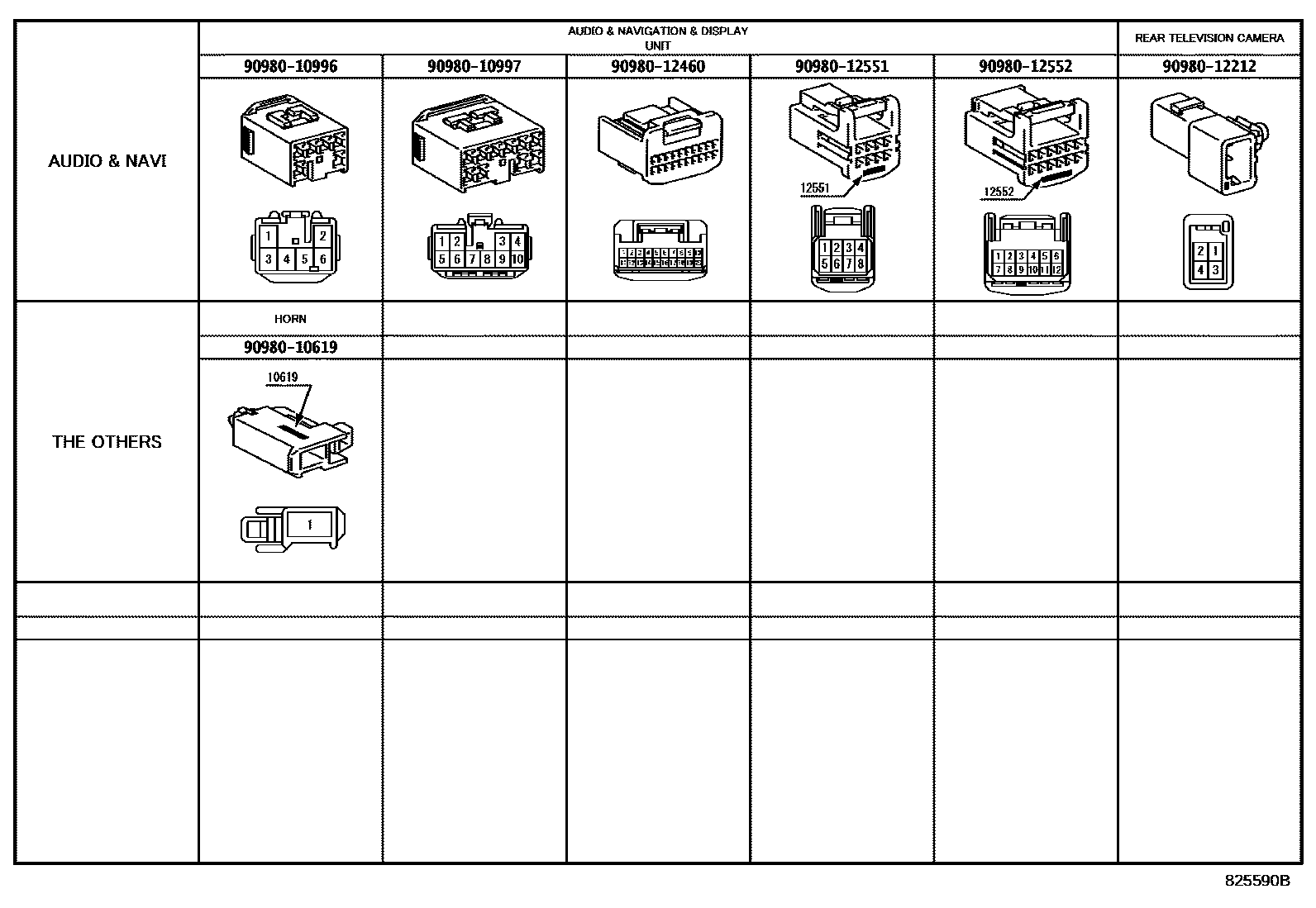

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 9 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

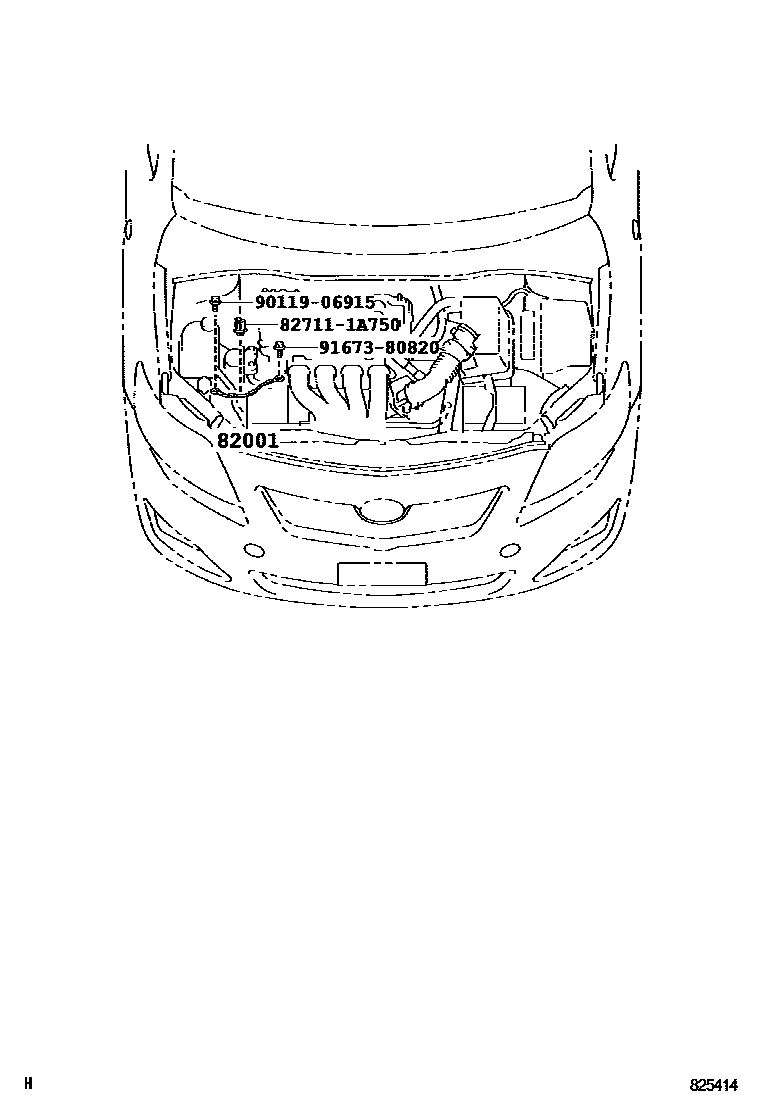

| 82001 | Connection cable No. 1 | 90980-07431 |

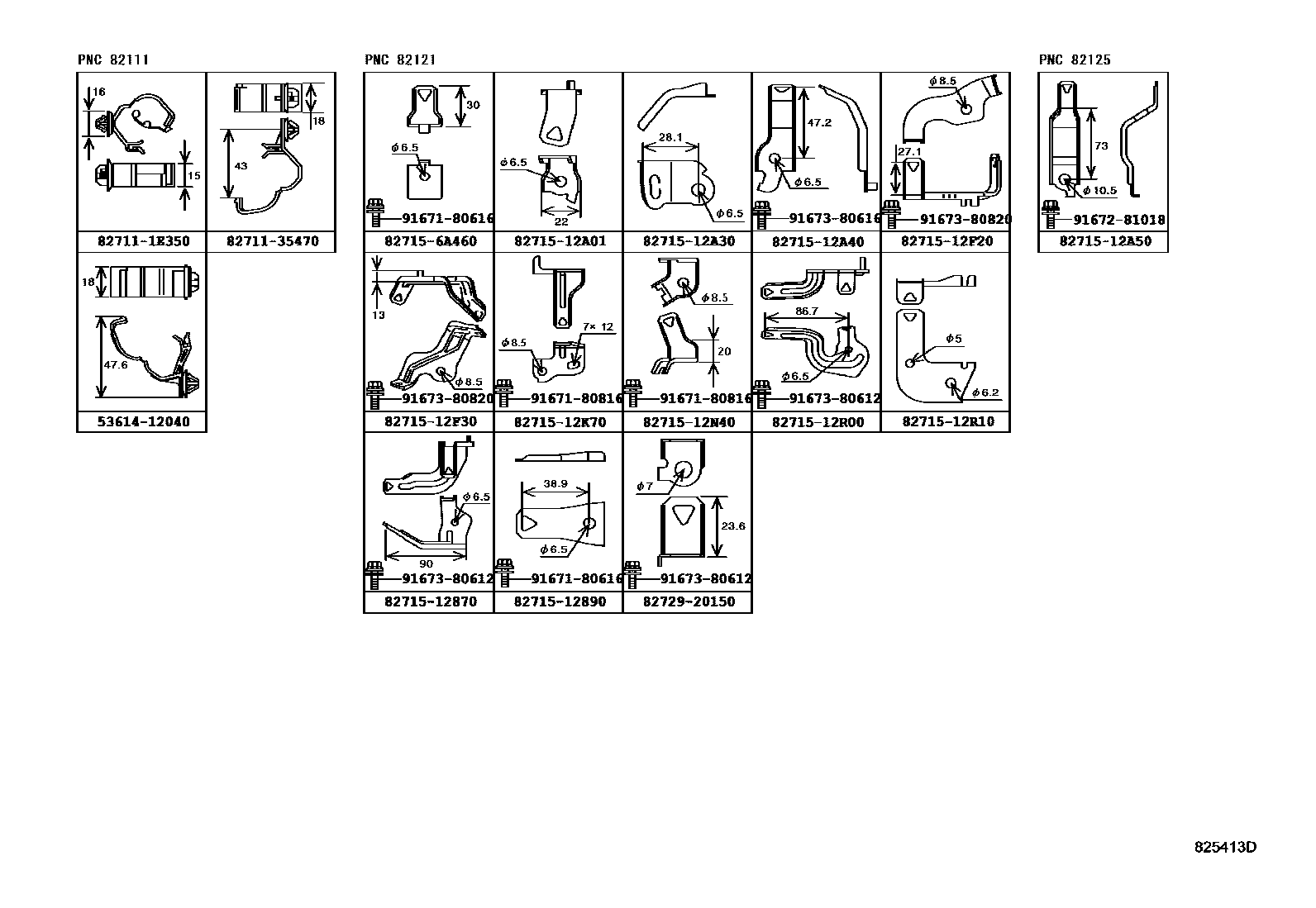

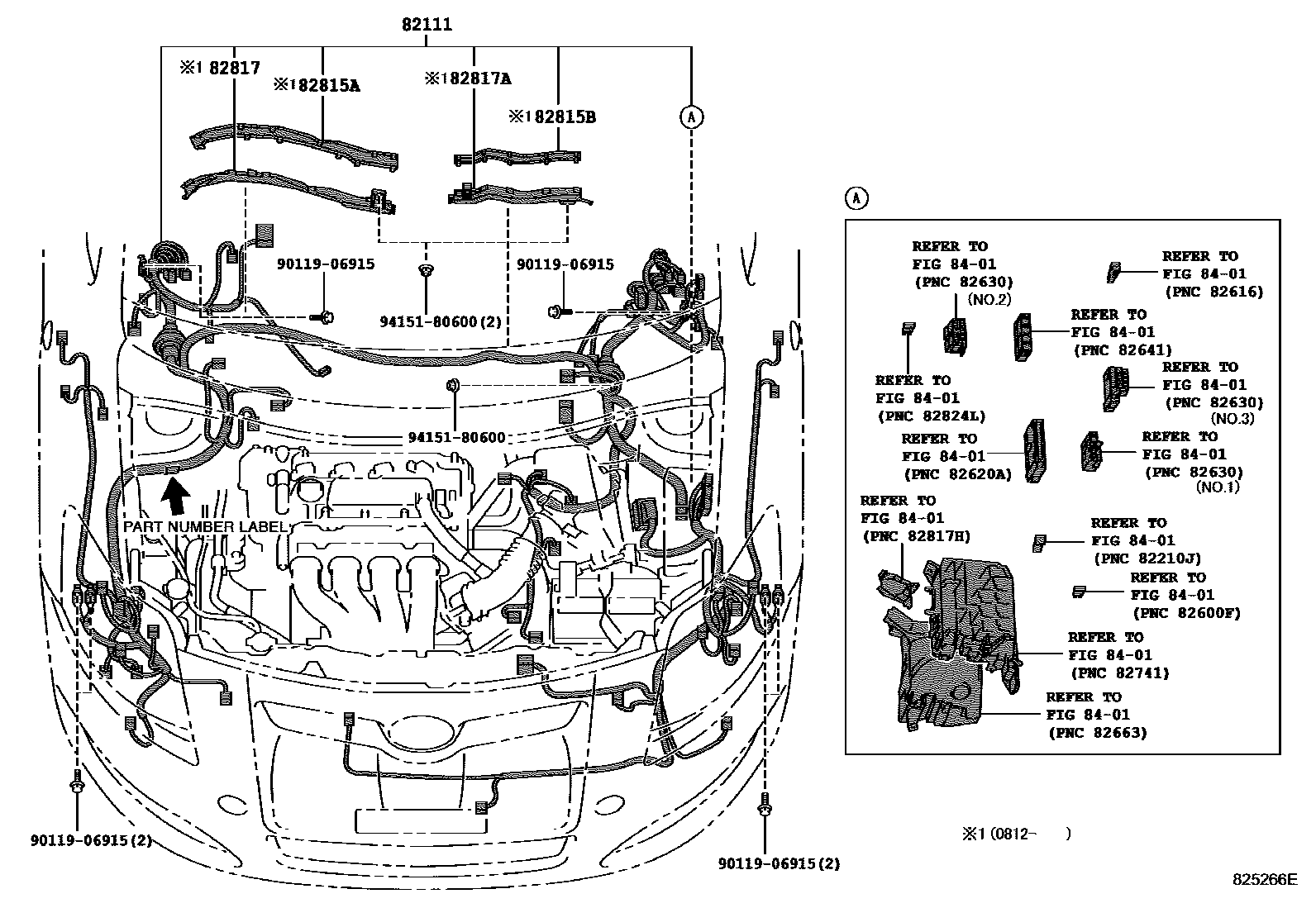

| 82111 | Engine room main wiring harness | 82111-1AB50 · 82111-1AB60 · 82111-1AB90 · 82111-1AC00 · 82111-1AR80 · 82111-1AR90 · 82111-1AZ40 · 82111-1AZ60 · 82111-1AZ70 · 82111-1AZ80 · 82111-1EA00 · 82111-1EA10 · 82111-1EX40 · 82111-1EX41 · 82111-1EX50 · 82111-1EX51 · 82111-1EX60 · 82111-1EX61 · 82111-1EX80 · 82111-1EX81 · 82111-1EX90 |

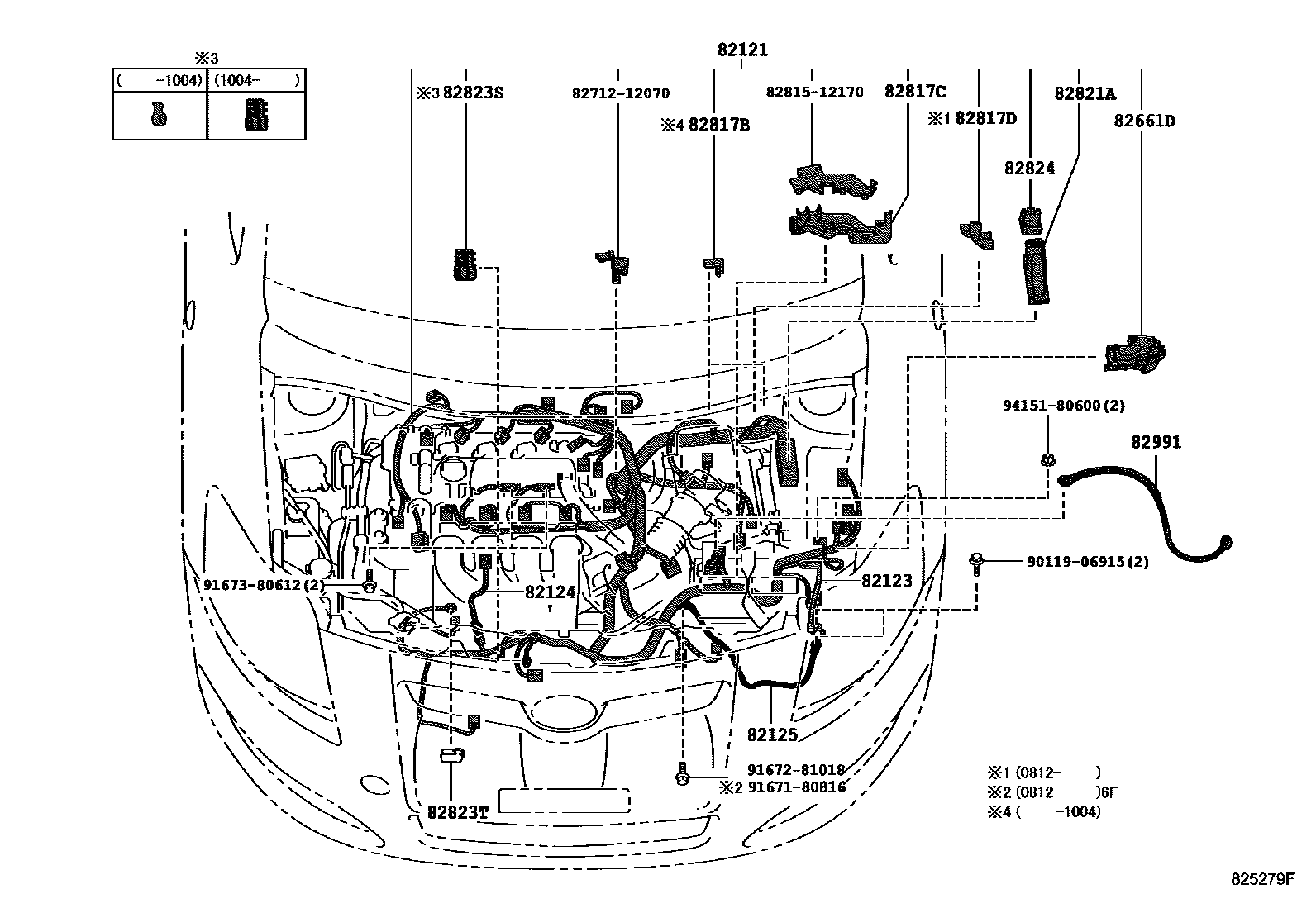

| 82121 | Engine wiring harness | 82121-12D80 · 82121-12D90 · 82121-12E70 · 82121-12J70 · 82121-12J80 |
| 82123 | Engine No. 3 wiring harness | 82123-12460 |
| 82124 | Engine No. 4 wiring harness | 82124-02090 · 82124-12160 |
| 82125 | Transmission wiring harness | 82125-12440 · 82125-12460 · 82125-12590 · 82125-12620 |

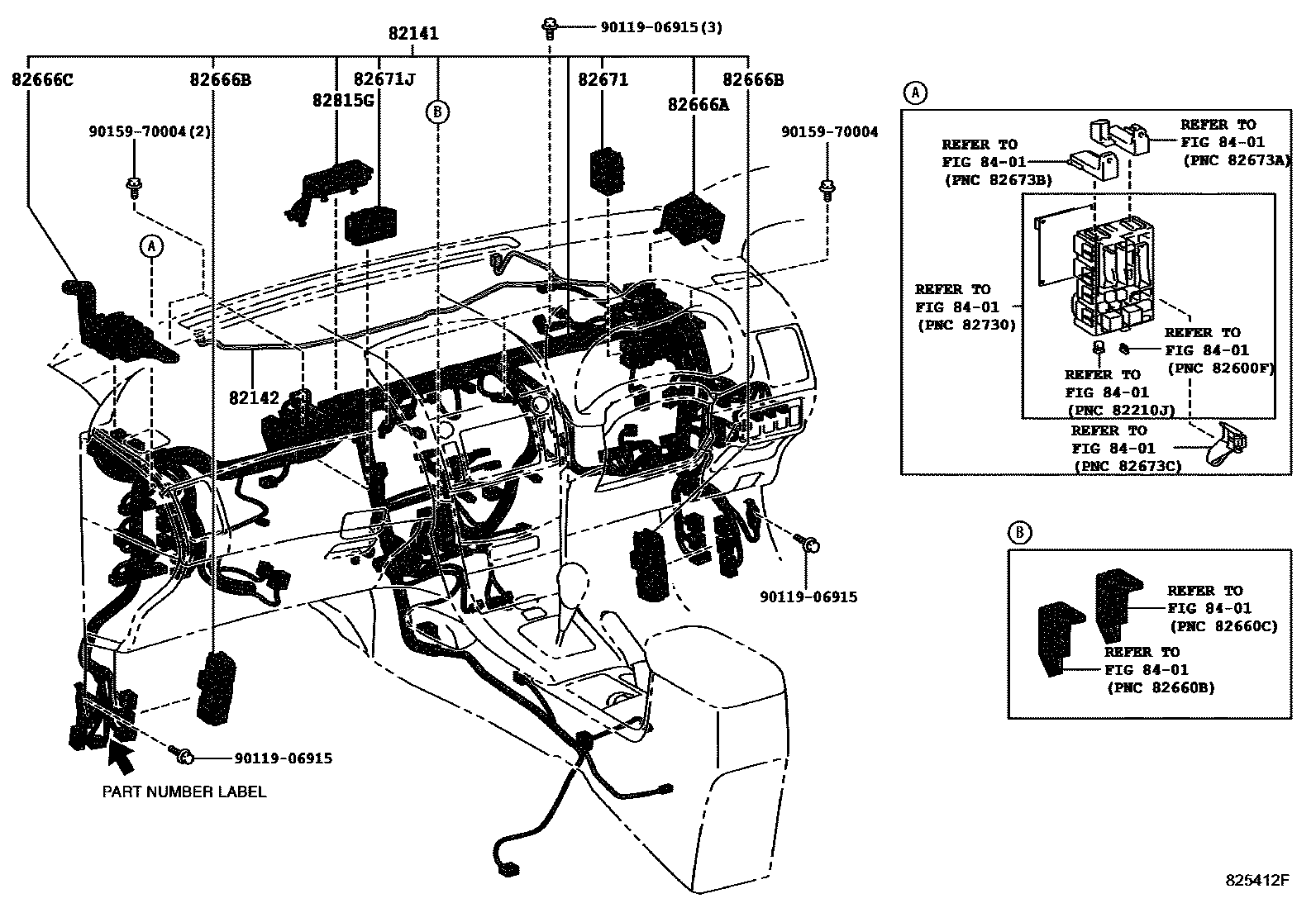

| 82141 | Dashboard wiring harness | 82141-1HL60 · 82141-1HL70 · 82141-1HL80 · 82141-1HL90 · 82141-1HM00 · 82141-1HM10 · 82141-1KT40 · 82141-1KT50 · 82141-1KT60 · 82141-1KT70 · 82141-1KT80 · 82141-1KT90 · 82141-1LZ30 · 82141-1LZ31 · 82141-1LZ32 · 82141-1LZ40 · 82141-1LZ50 · 82141-1TE90 · 82141-1TE91 · 82141-1TF00 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12380 · 82142-12400 |

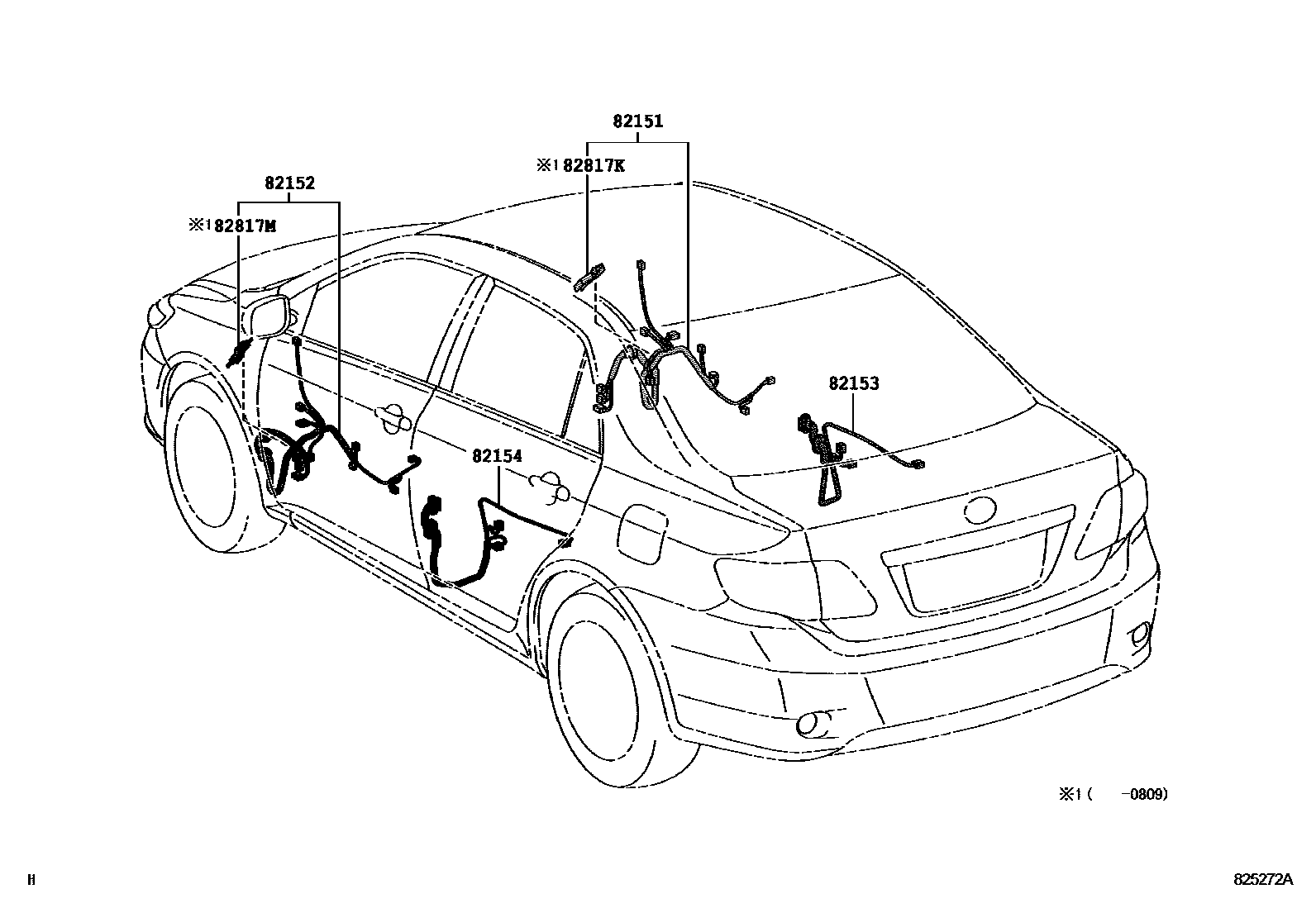

| 82151 | Right front door wiring harness | 82151-12E50 · 82151-12E70 · 82151-12E80 · 82151-12F40 · 82151-12F50 · 82151-12P40 · 82151-12P60 · 82151-12P70 · 82151-12P80 · 82151-12P90 · 82151-12T00 · 82151-12T10 · 82151-12T20 · 82151-12V50 |
| 82152 | Left front door wiring harness | 82152-12E60 · 82152-12E70 · 82152-12F10 · 82152-12F20 · 82152-12P60 · 82152-12P70 · 82152-12P80 · 82152-12P90 · 82152-12S20 · 82152-12S30 · 82152-12S40 |
| 82153 | Rear door wiring harness No. 1 | 82153-12580 · 82153-12590 · 82153-12610 · 82153-12820 · 82153-12830 · 82153-12840 |
| 82154 | Rear door wiring harness No. 2 | 82154-12530 · 82154-12540 · 82154-12560 · 82154-12770 · 82154-12780 · 82154-12790 |

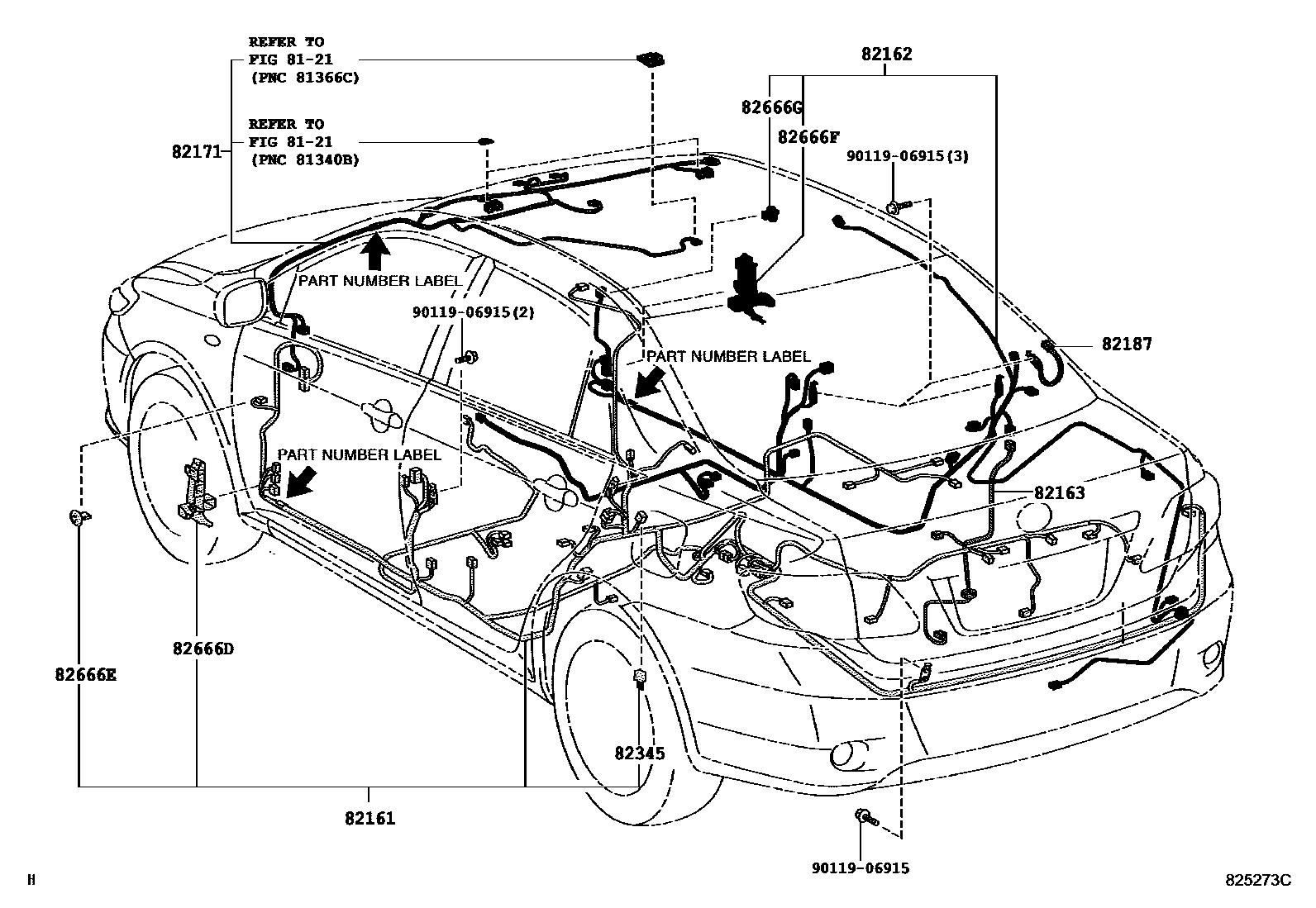

| 82161 | floor wiring harness | 82161-12F30 · 82161-12F40 · 82161-12J30 · 82161-12N20 · 82161-12N40 · 82161-12T30 · 82161-12T40 |
| 82162 | Floor wiring harness No. 2 | 82162-12A00 · 82162-12A10 · 82162-12A30 · 82162-12C50 · 82162-12K60 · 82162-12K70 · 82162-12K80 · 82162-12K81 · 82162-12K90 · 82162-12P60 · 82162-12P70 · 82162-12P80 |
| 82163 | Floor wiring harness No. 3 | 82163-12170 · 82163-12200 |
| 82171 | Roof No. 1 wiring harness | 82171-12F30 · 82171-12F50 · 82171-12N40 · 82171-12N50 · 82171-12N60 · 82171-12N61 · 82171-12N70 · 82171-12N71 |
| 82187 | Rear window wiring harness No. 2 | 82187-12210 |
| 82345 | diode | 82345-12050 |
| 82661D | No. 1 relay box side cover | 82661-12280 |
| 82666A | Connector holder No. 2 | 82666-12350 |
| 82666B | No. 3 connector holder | 82666-12360 |
| 82666C | No. 4 connector holder | 82666-12430 |
| 82666D | No. 5 connector holder | 82666-12400 |
| 82666E | No. 6 connector holder | 82666-20280 |
| 82666F | No. 7 connector holder | 82666-12370 |
| 82666G | No. 8 connector holder | 82666-20280 |
| 82671 | junction box | 82671-12270 |
| 82671J | No. 2 junction box | 82671-12280 · 82671-12330 |
| 82815A | Wiring harness protector cover | 82815-12150 |
| 82815B | Wiring harness protector cover | 82815-12160 |
| 82815G | No. 5 wire harness protector cover | 82815-12310 |
| 82817 | No. 1 wire harness protection device | 82817-12B10 |
| 82817A | No. 2 wire harness protection device | 82817-12B20 |
| 82817B | No. 3 wire harness protection device | 82817-12860 |
| 82817C | No. 4 wire harness protection device | 82817-12B90 |
| 82817D | No. 5 wire harness protection device | 82817-12J10 |
| 82817K | No. 10 wire harness protection device | 82817-12F30 |
| 82817M | No. 12 wire harness protection device | 82817-12F40 |
| 82821A | Connector cover | 82821-12560 |
| 82823S | starter terminal cover | 82823-12090 · 82823-12110 |
| 82823T | Generator terminal cover | 82823-22050 |

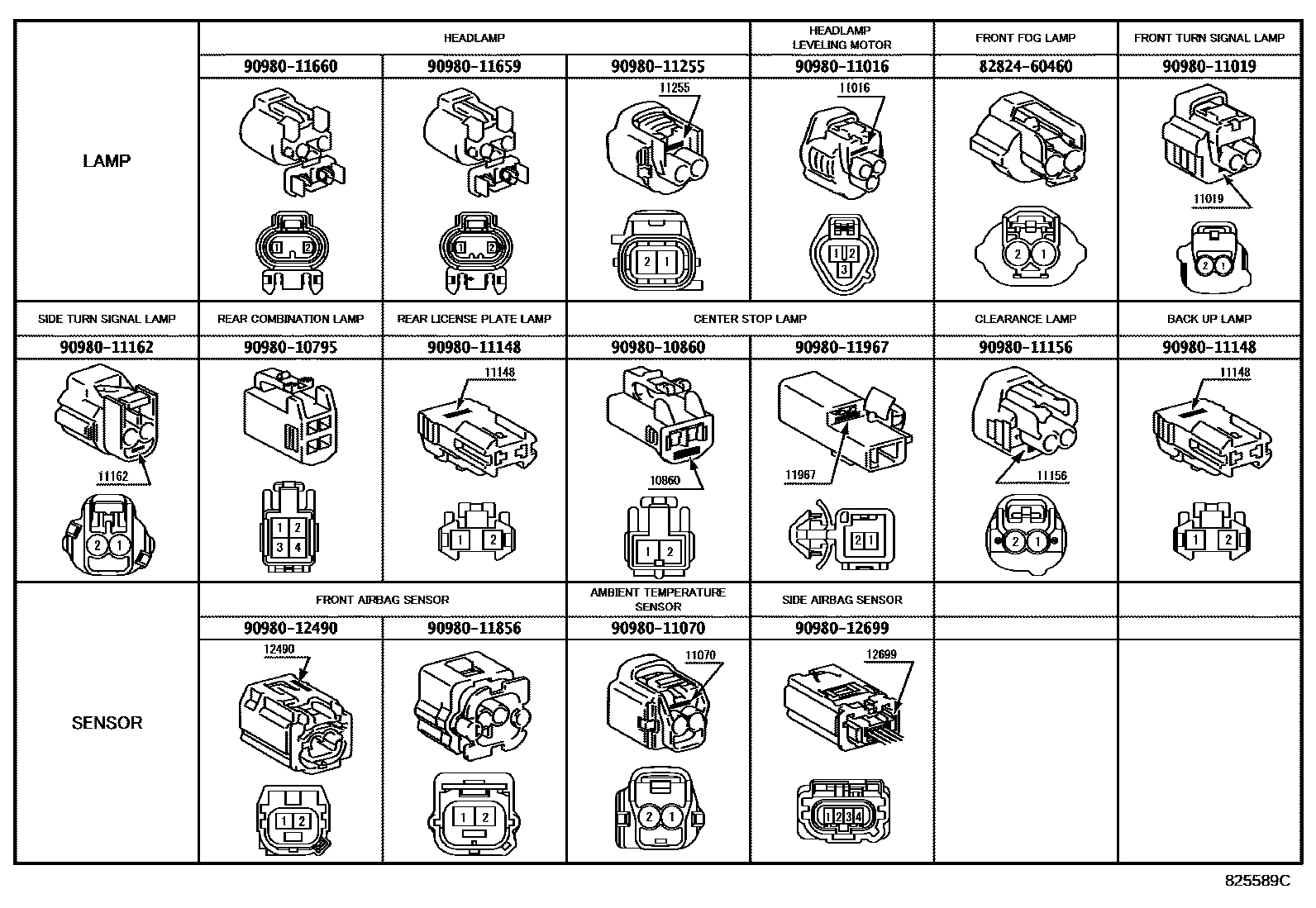

| 82824 | Harness connector | 82824-34100 |
| 82991 | Fuse repair line | 82991-12110 |
