Toyota COROLLA 挡泥板和扰流板 — Figure 7601

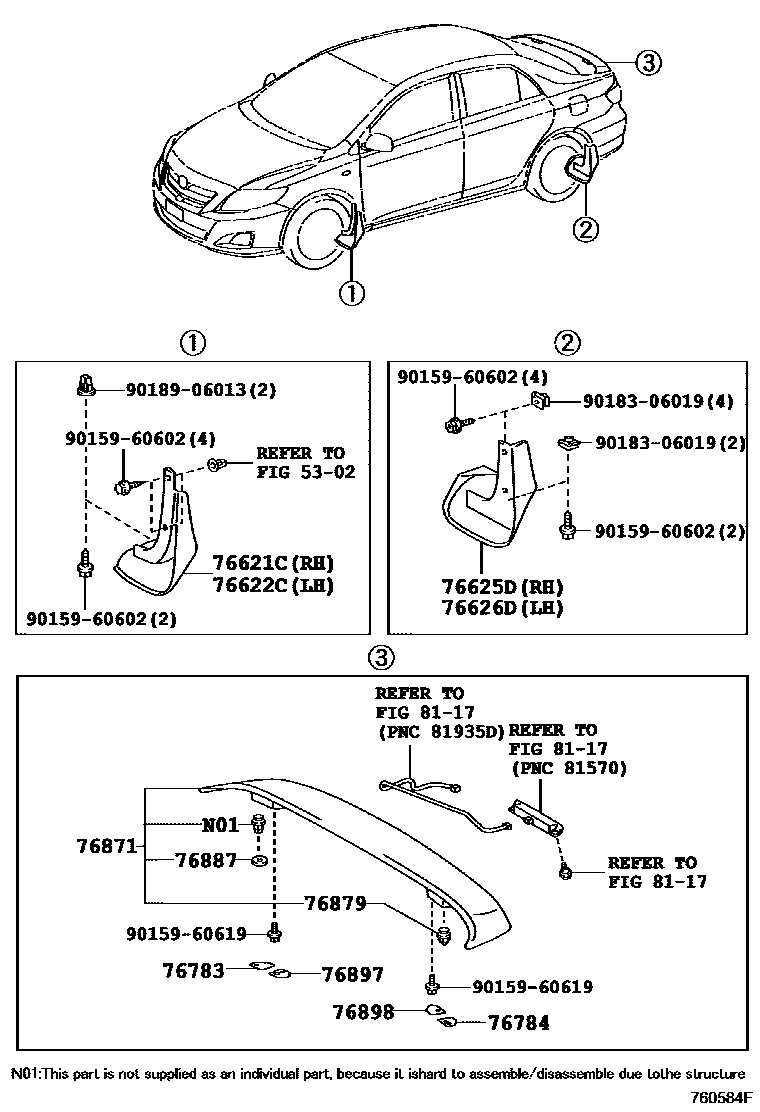

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76621C | Right front fender fender | 76621-12260 |
| 76622C | Left front fender fender | 76622-12260 |
| 76625D | Right rear side fender | 76625-12530 · 76625-12580 |
| 76626D | Left rear side fender | 76626-12530 · 76626-12580 |
| 76783 | Right rear lower spoiler tape | 76783-12090 |
| 76784 | Left rear lower spoiler tape | 76784-12090 |
| 76879 | No. 1 rear spoiler clip | 76879-12060 |
| 76887 | Rear spoiler seal | 76887-12040 |
| 76897 | Right rear spoiler protection strip | 76897-12170 |
| 76898 | Left rear spoiler protection strip | 76898-12170 |
