Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

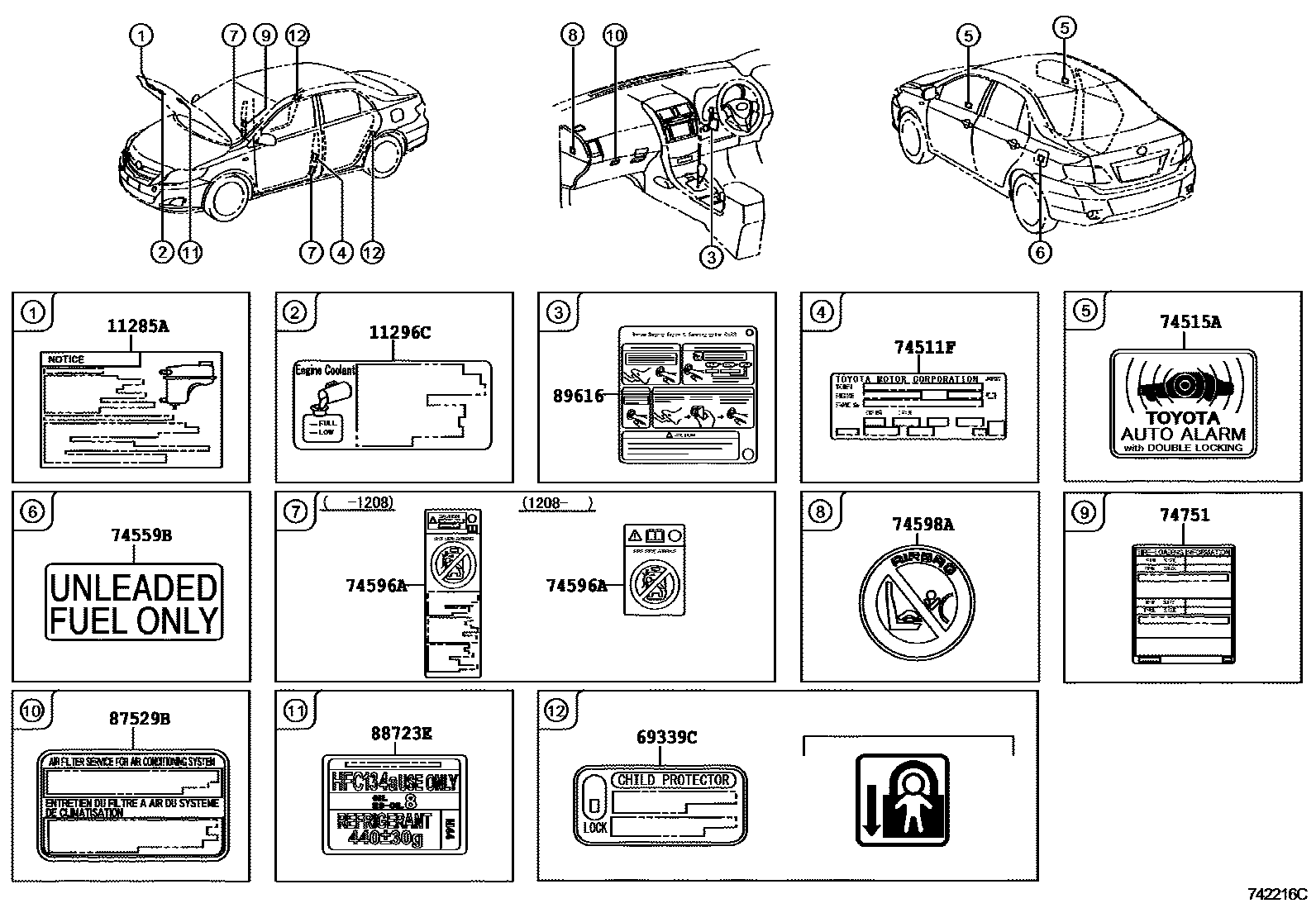

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-22080 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-48030 |
| 74515A | Anti-theft warning nameplate | 74515-42010 |
| 74559B | fuel information label | 74559-14050 |
| 74596A | Side air bag warning label | 74596-53010 · 74596-53011 · 74596-53012 |
| 74598A | Passenger air bag warning label | 74598-20010 · 74598-30040 |
| 74751 | tire pressure information label | 42661-12D60 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88733-20020 |
| 89616 | Launch information labels with one click | 89616-30031 · 89616-53010 |
