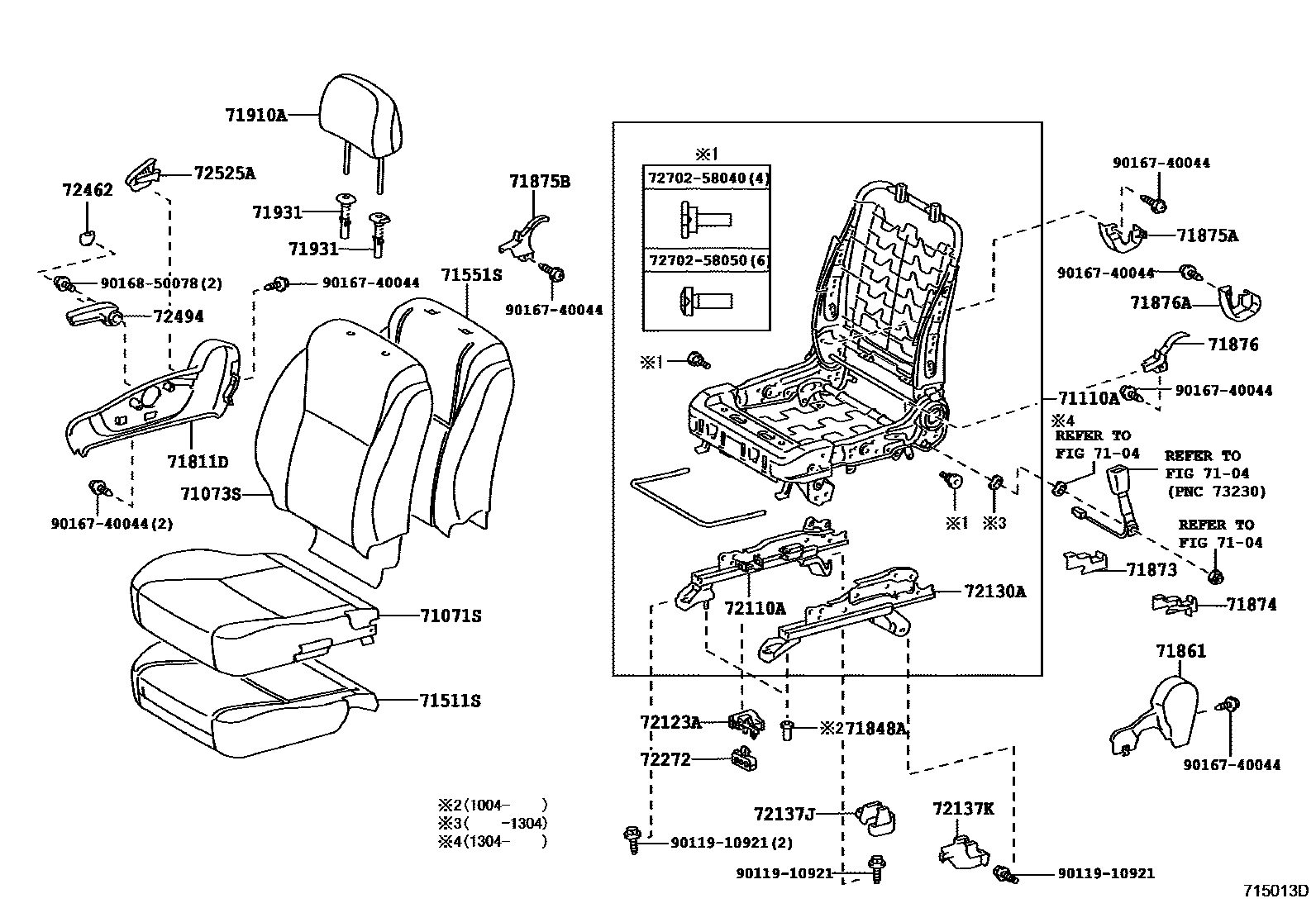

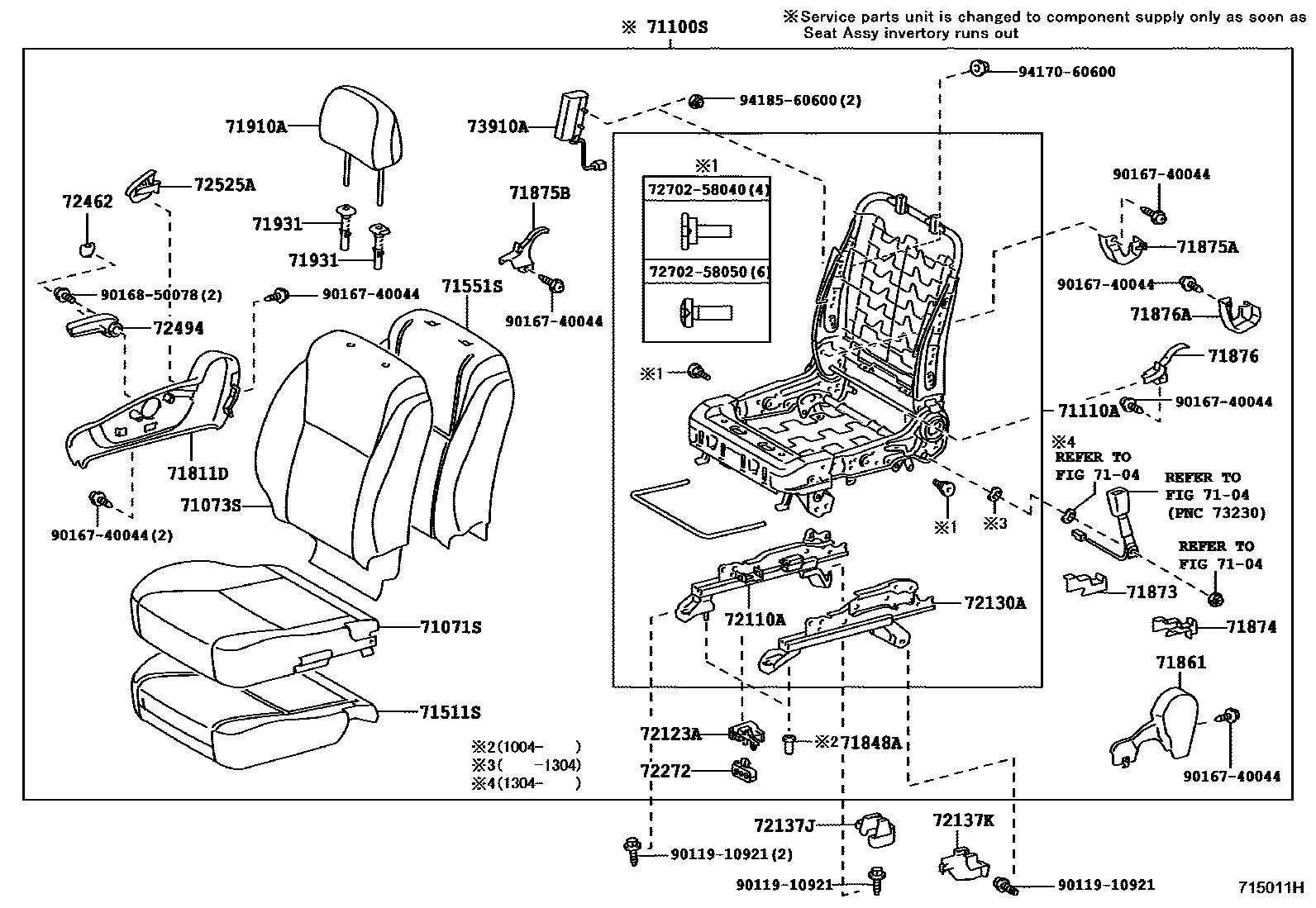

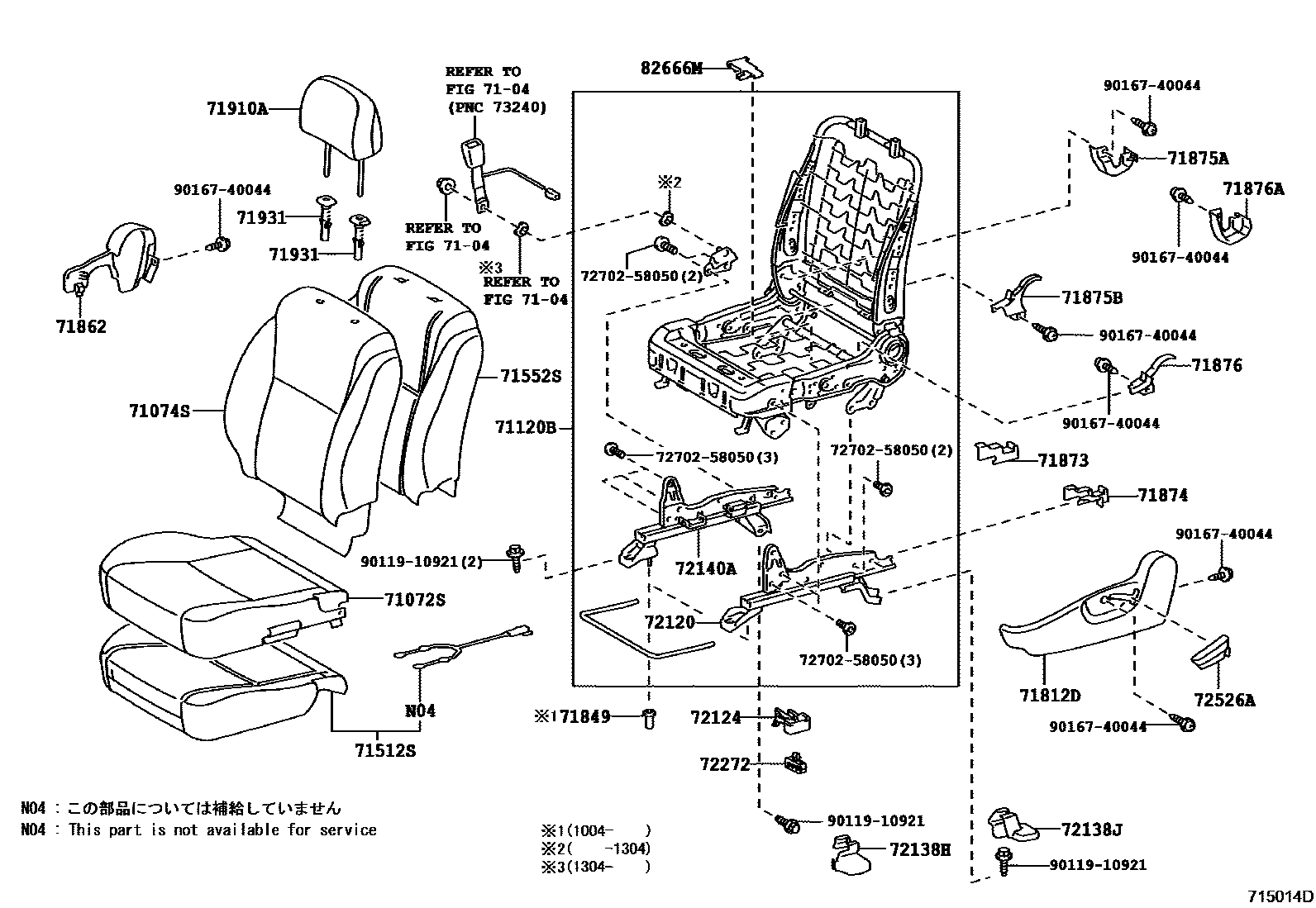

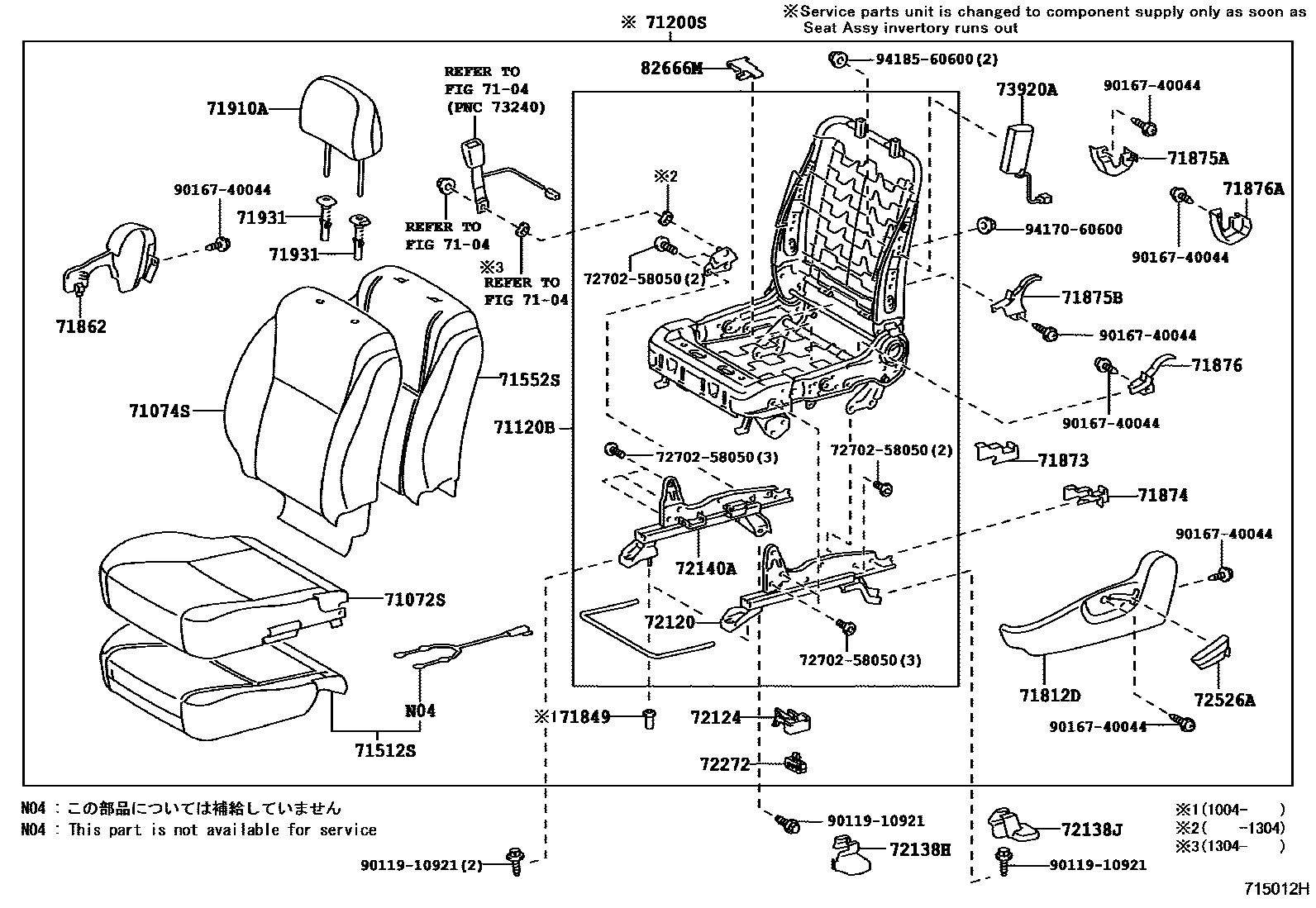

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-12130 · 71110-12131 · 71110-12140 · 71110-12141 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-12100 · 71120-12101 · 71120-12110 · 71120-12111 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12B10 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-12100 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12A60 · 71551-12A70 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12420 · 71552-13170 |
| 71848A | Right seat adjuster cover | 71848-26010 |
| 71849 | left seat adjuster cover | 71848-26010 |
| 71873 | Front right seat cushion lower guard panel | 71873-12060 · 71873-53030 |
| 71874 | Front left seat cushion lower guard | 71874-12060 · 71874-53010 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-58060 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-58060 |
| 72110A | Front right seat outer slide rail assembly | 72110-12210 |
| 72120 | Front left seat outer slide rail assembly | 72120-12170 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-12140 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-12120 |
| 72130A | Front right seat inner slide rail assembly | 72130-12800 |
| 72140A | Front left seat inner slide rail assembly | 72140-12670 |
| 72272 | Seat rail control cable clip | 72272-12020 |
| 73910A | Front right seat airbag assembly | 73910-12040 · 73910-12041 |
| 73920A | Front left seat airbag assembly | 73920-12030 · 73920-12031 |
| 82666M | Connector holder | 82666-12420 |
