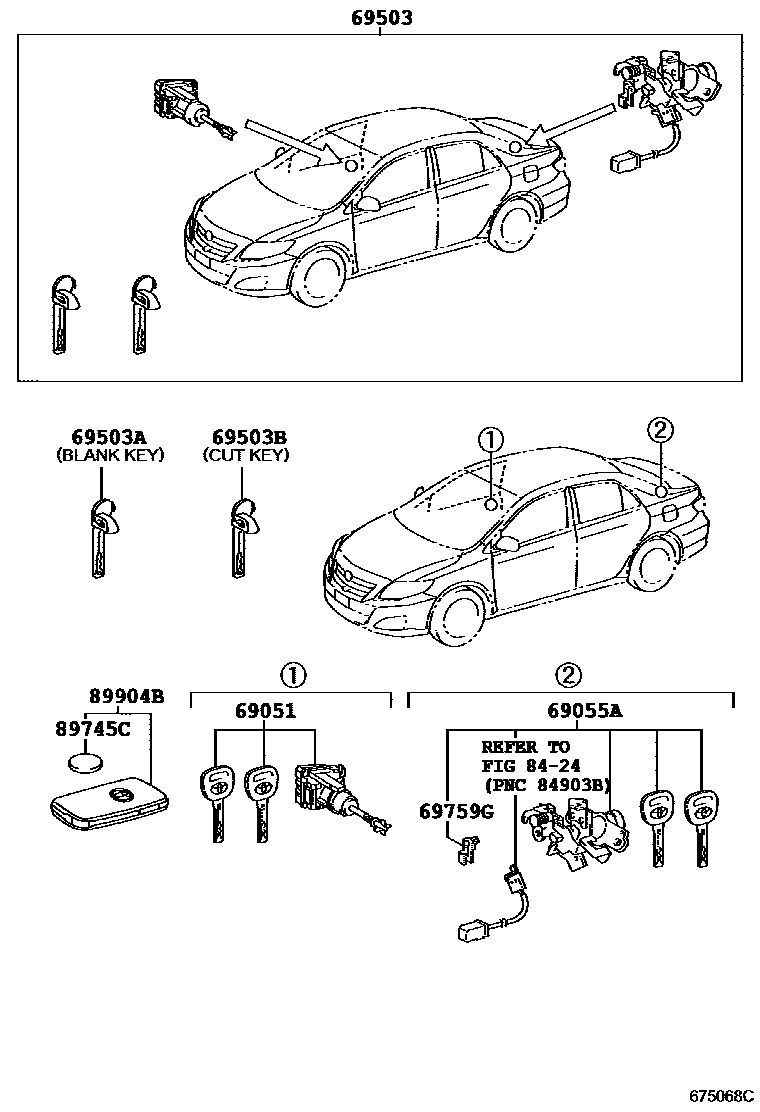

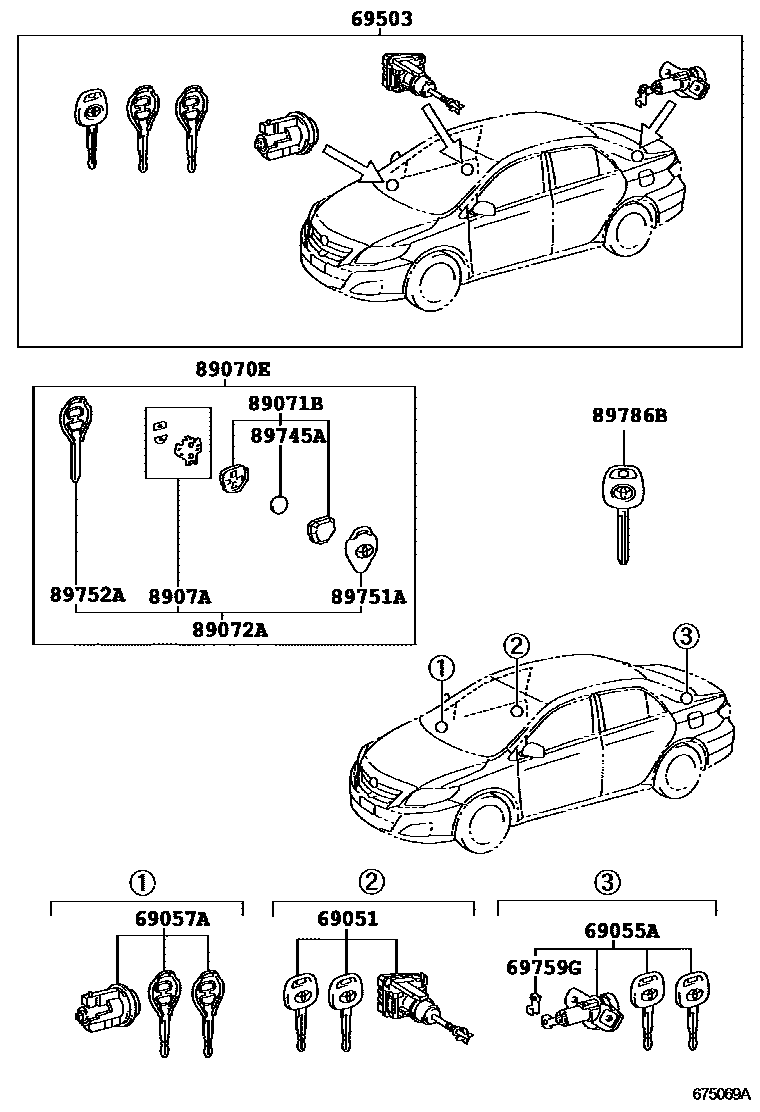

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12650 · 69051-12680 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12A20 · 69055-12A30 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12800 · 69057-28370 |
| 69503 | Door lock cylinder components | 69005-12C20 · 69005-12C50 · 69005-12E60 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-12740 · 89070-26300 · 89070-28850 |
| 89071B | Remote key sub-assembly module assembly | 89071-28240 |
| 89072A | Remote key shell assembly | 89072-12181 · 89072-26080 · 89072-28300 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52030 |
| 89751A | Transmitter housing cover | 89751-28070 · 89751-52140 |
| 89752A | transmitter housing | 89752-12140 · 89752-28050 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12140 · 89904-12240 |
