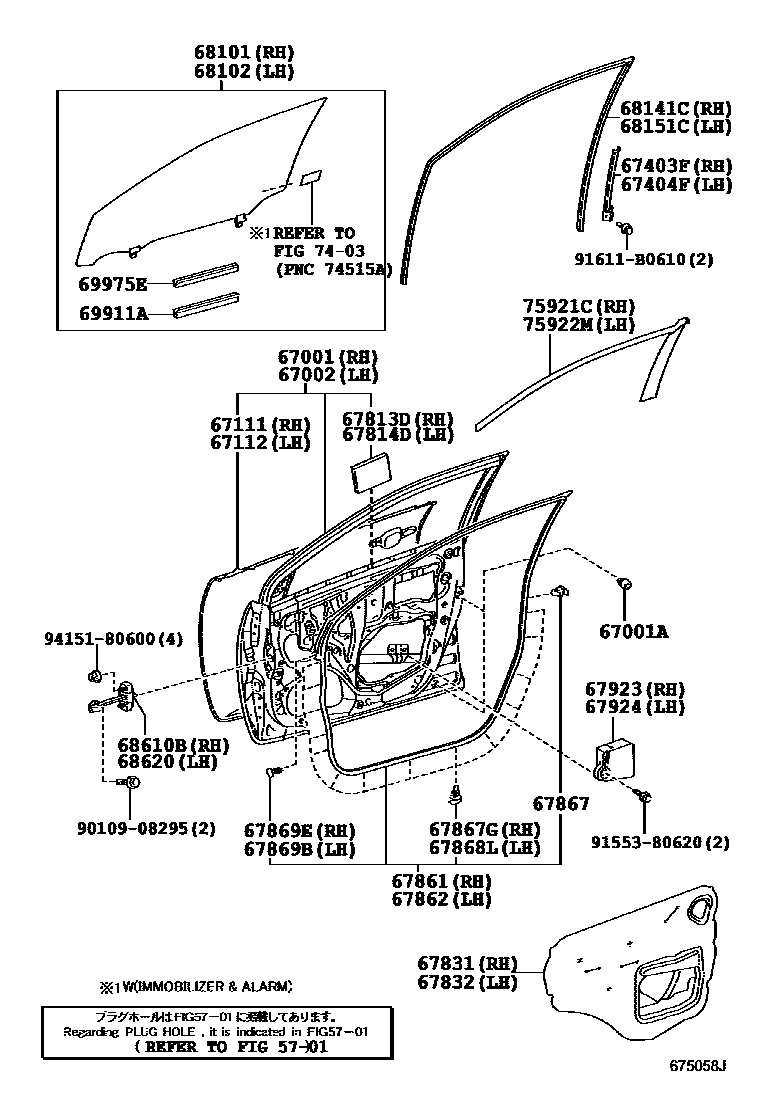

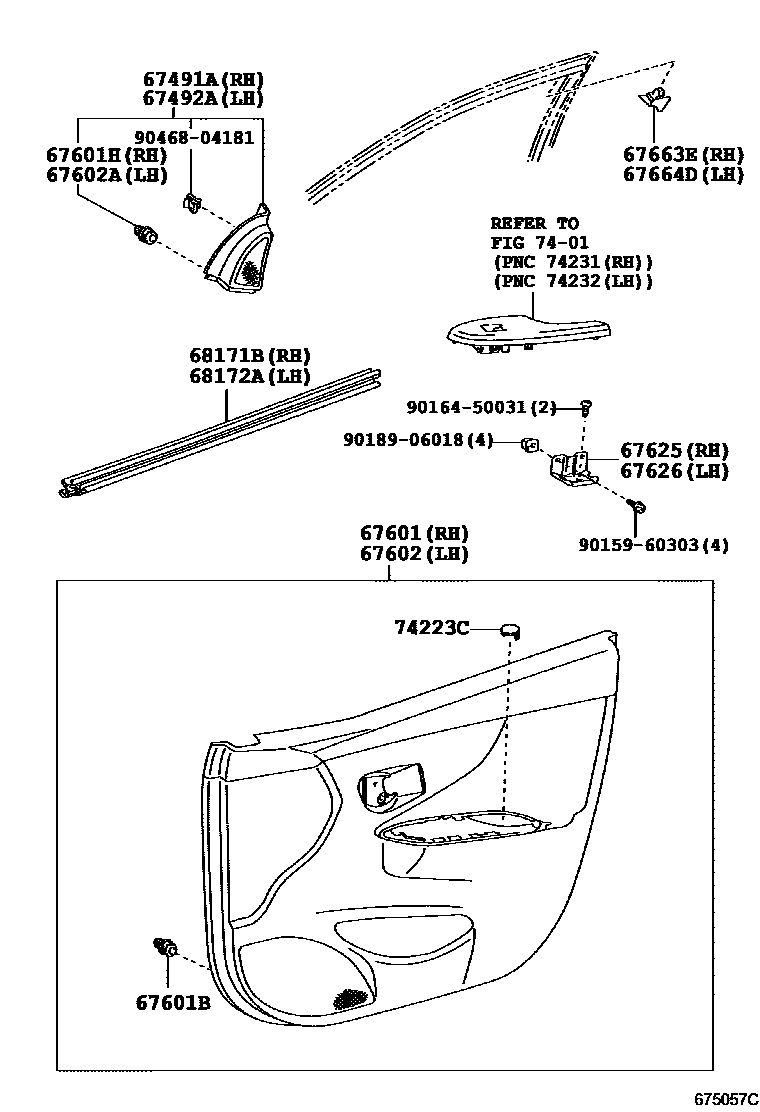

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12A30 · 67001-12A31 |
| 67001A | Front door panel cushion | 90541-09124 · 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-12A30 · 67002-12A31 |
| 67111 | Outer right front door panel | 67111-12700 |
| 67112 | Outer left front door panel | 67112-12690 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12260 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12250 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12510 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12510 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67601H | Right door trim panel fixing | 67771-12060 |
| 67602A | Left door trim panel fixing | 67771-12060 |
| 67625 | Right front door trim panel bracket | 67625-12180 · 67625-12210 |
| 67626 | Left front door trim panel bracket | 67625-12180 · 67625-12210 |
| 67663E | Right door frame decorative strip | 67663-48010 |
| 67664D | Left door frame decorative strip | 67664-48010 |
| 67813D | Right side enclosure silencer panel | 67817-47010 |
| 67814D | Left side enclosure silencer panel | 67817-47010 |
| 67831 | Right front door access hole cover | 67831-12670 · 67831-12671 |
| 67832 | Left front door access hole cover | 67832-12450 · 67832-12451 |
| 67861 | Right front door seal | 67861-12A20 |
| 67862 | Left front door seal | 67862-12A20 |
| 67867 | Car door seal strip clip | 90467-04034 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 67869E | Front door seal strip clip | 67869-20030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-12040 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-12040 |
| 68101 | Right front door glass sub-assembly | 68101-12A70 · 68101-12A71 · 68101-12A72 · 68101-12A80 · 68101-12A81 · 68101-12A82 |
| 68102 | Left front door glass sub-assembly | 68102-12A70 · 68102-12A71 · 68102-12A72 · 68102-12A80 · 68102-12A81 · 68102-12A82 |
| 68141C | Right front door glass lift channel | 68141-12560 |
| 68151C | Left front door glass lift channel | 68151-12260 |
| 68171B | Right front door glass inner sealing strip | 68171-12340 |
| 68172A | Left front door glass inner sealing strip | 68172-12260 |
| 68610B | Right front door opening limiter assembly | 68610-12200 · 68610-12201 |
| 68620 | Left front door opening limiter assembly | 68610-12200 · 68610-12201 |
| 69911A | No. 1 front door glass slot | 69911-13010 · 69955-47010 |
| 69975E | No. 1 front door glass groove filler | 69975-16020 · 69975-47010 |
| 75921C | No. 1 right side light-shielding film | 75921-12080 |
| 75922M | No. 1 left shading film | 75922-12080 |
