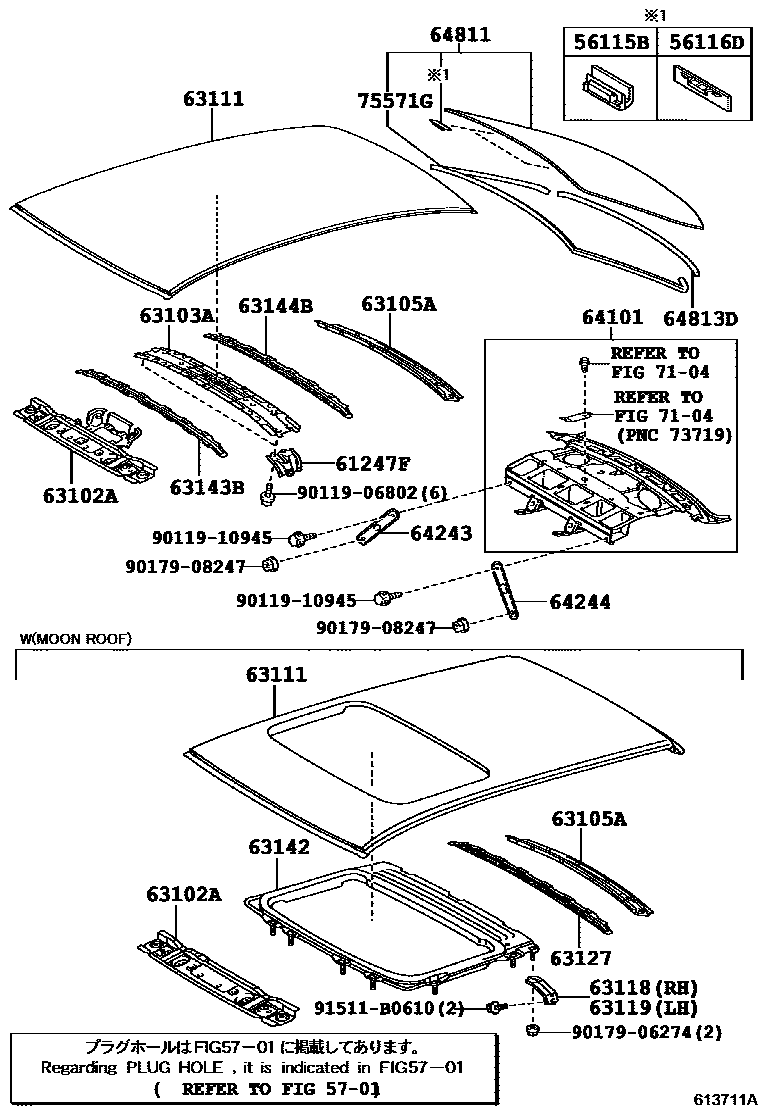

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12050 |
| 63102A | Windshield roof sub-assembly | 63102-12230 · 63102-12240 |
| 63103A | Roof panel reinforcement sub-assembly | 63141-12290 |
| 63105A | Back door opening frame sub-assembly | 63105-12290 |
| 63111 | roof panel | 63111-12870 · 63111-12880 |
| 63118 | Right roof panel bracket | 63118-12120 |
| 63119 | Left roof panel bracket | 63118-12120 |
| 63127 | No. 5 roof panel reinforcement | 63127-12010 |
| 63142 | No. 2 roof panel reinforcement | 63142-12140 |
| 63143B | No. 3 roof panel reinforcement | 63143-12130 |
| 63144B | No. 4 roof panel reinforcement | 63144-12110 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-13050 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12170 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48010 |
| 63217G | Right sliding sunroof trim | 63217-48030 |
| 63218G | Sliding sunroof trim, left | 63218-48030 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-12010 |
| 63249E | Sliding skylight drain hose | 63249-12400 · 63249-12410 |
| 63249F | Sliding skylight drain hose | 63249-12340 |
| 63251H | Sliding skylight seal | 63251-63010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12140 |
| 63669B | Sliding skylight drain seal | 90480-26020 |
| 64101 | Upper back panel sub-assembly | 64101-12840 |
| 64243 | No. 2 right compartment partition | 64243-12010 |
| 64244 | No. 2 left compartment partition | 64244-12010 |
| 64811 | back window glass | 64801-12540 · 64801-12541 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-12A10 |
