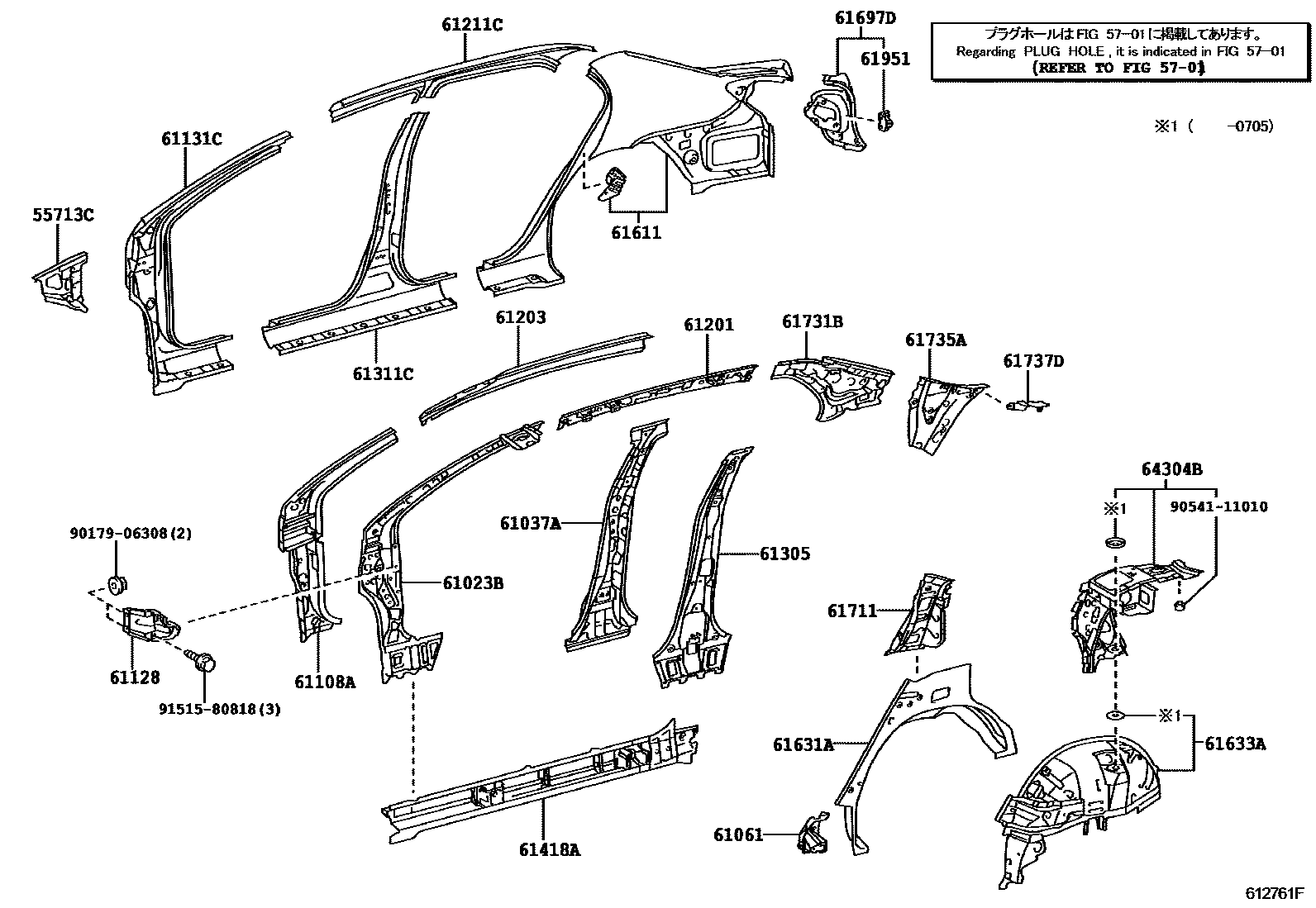

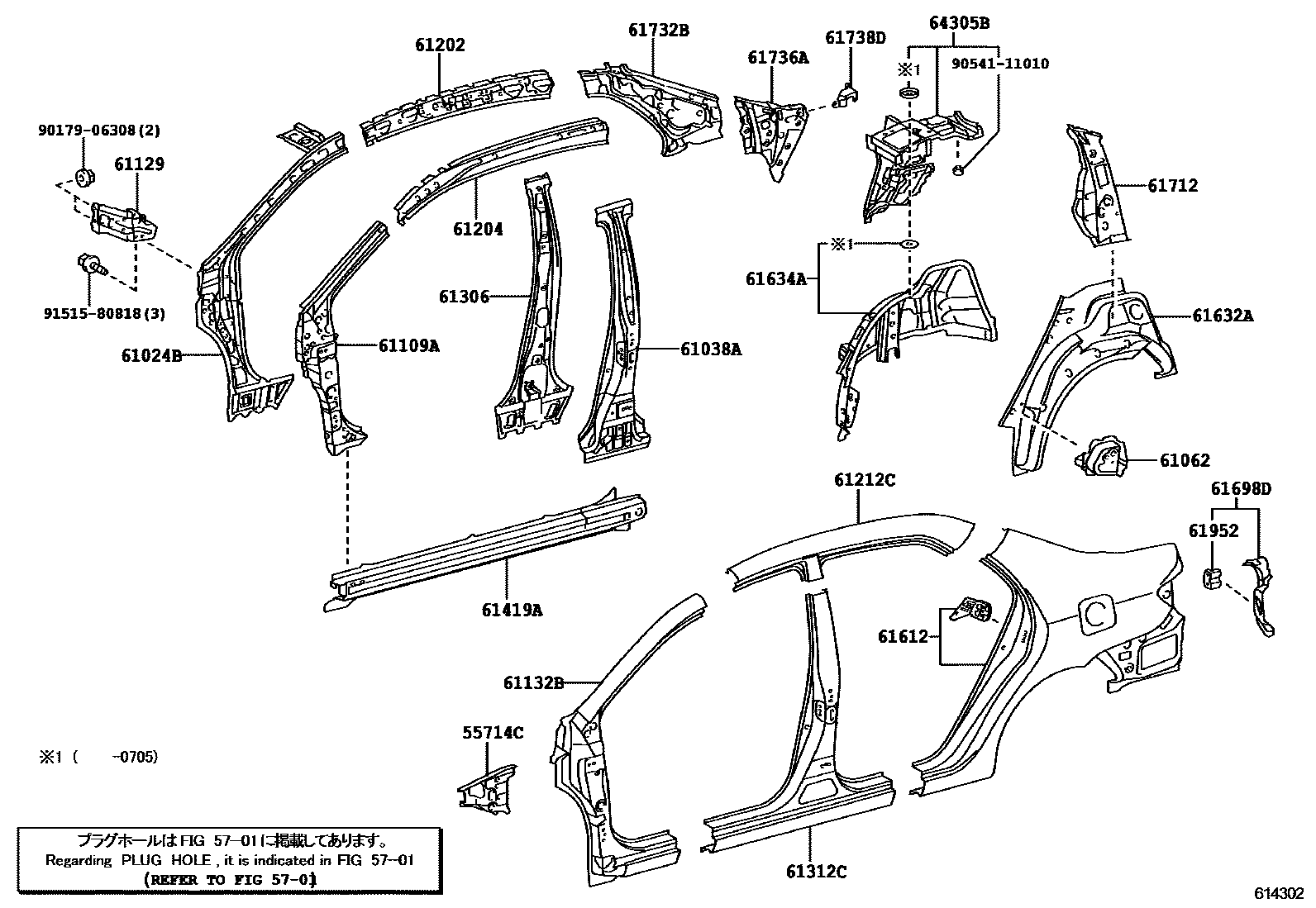

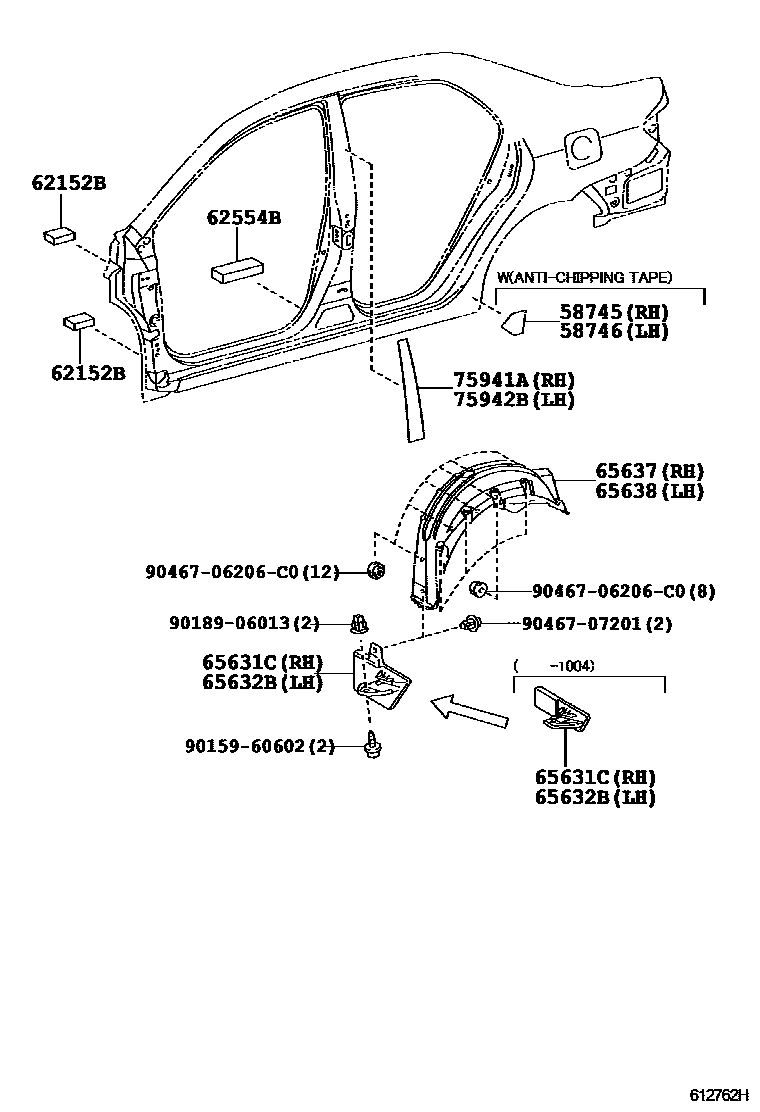

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55713C | Right front wall upper side panel | 55713-12130 |
| 55714C | Left front wall upper side panel | 55714-12130 |
| 58745 | Right front side panel protector | 58741-12170 |
| 58746 | Left front side panel protector | 58742-12160 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12370 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12370 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12912 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12912 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-12010 · 61615-12010 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-12010 · 61616-12020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12260 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12250 |
| 61128 | Right front wall side panel reinforcement | 61103-12230 |
| 61129 | Left front wall side panel reinforcement | 61104-12260 |
| 61131C | Right body outer front pillar | 61131-12760 |
| 61132B | Left body outer front pillar | 61132-12740 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12210 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12200 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-12310 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-12290 |
| 61211C | Roof right side rail | 61211-12510 |
| 61212C | Roof left side rail | 61212-12510 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12150 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12150 |
| 61311C | Right rear body front outer panel | 61311-12440 |
| 61312C | Left rear body front outer panel | 61312-12480 |
| 61418A | Right side door sill panel reinforcement | 61403-12070 · 61403-12071 |
| 61419A | Left side rocker panel reinforcement | 61404-12080 · 61404-12081 |
| 61611 | Right side hoarding | 61601-12A40 |
| 61612 | left side panel | 61602-12A40 |
| 61631A | Right wheel cover outer panel | 61631-12450 · 61631-12451 |
| 61632A | Left side wheel cover outer panel | 61632-12460 · 61632-12461 |
| 61633A | Right wheel housing lining panel | 61607-12954 · 61607-12955 |
| 61634A | Left side wheel housing lining panel | 61608-12949 · 61608-12950 |
| 61697D | Right side enclosure end cover | 61697-12913 |
| 61698D | Left side enclosure end cover | 61698-12913 |
| 61711 | Roof right side outer panel | 61711-12330 |
| 61712 | Roof left outer panel | 61712-12360 |
| 61731B | Roof right inner panel | 61731-12790 |
| 61732B | Roof left inner panel | 61732-12740 |
| 61735A | Right rear roof inner panel | 61735-12390 |
| 61736A | Left rear roof inner panel | 61736-12390 |
| 61737D | Roof right inner reinforcement | 61737-12140 |
| 61738D | Roof left inner reinforcement | 61738-12150 |
| 61951 | Right trim part bracket | 61951-12010 |
| 61952 | Right trim part bracket | 61952-12010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12081 · 64304-12082 · 64304-12083 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12091 · 64305-12092 · 64305-12093 |
| 65631C | Right rear wheel house front panel | 65631-12050 · 65631-12080 |
| 65632B | Left rear wheel house front panel | 65632-12050 · 65632-12080 |
| 65637 | Right rear wheel house lining | 65637-12030 |
| 65638 | Left rear wheel house lining | 65638-12030 |
| 75941A | Right center pillar trim | 75941-12040 |
| 75942B | Left center pillar trim | 75942-12040 |
