Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

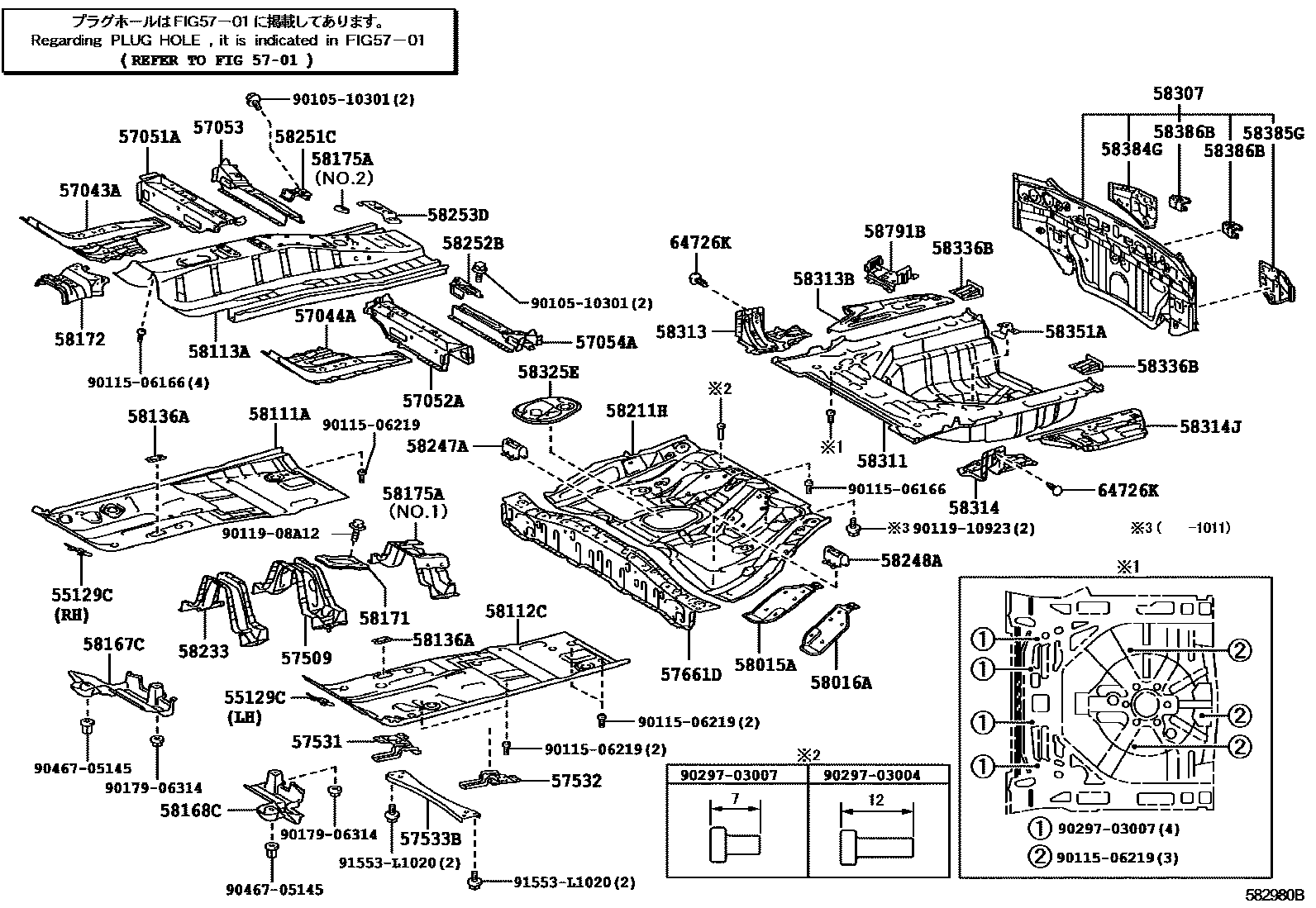

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129C | Front panel hole cover | 55129-12040 · 55139-12050 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-12020 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-12020 |
| 57051A | Front floor right cross member sub-assembly | 57051-12060 |
| 57052A | Front floor left cross member sub-assembly | 57052-12010 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-12010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-12010 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-12060 · 57509-12061 · 58161-12231 |
| 57531 | Front floor center bracket right bracket | 57531-12010 |
| 57532 | Front floor center bracket left bracket | 57532-12010 |
| 57533B | Front floor center bracket | 57533-12010 |
| 57661D | rear floor front cross member | 57407-12120 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12091 · 58015-47041 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12061 · 58016-47031 |
| 58111A | Front floor right bottom panel | 58111-12915 |
| 58112C | Front floor left bottom panel | 58112-12901 |
| 58113A | front floor center panel | 58113-12901 |
| 58136A | Front floor access hole cover | 58136-12040 |
| 58167C | Front floor center right cover | 58167-12010 |
| 58168C | Front floor center left cover | 58168-12010 |
| 58171 | Parking brake base reinforcement | 58171-12120 |
| 58172 | No. 3 ECU mounting bracket | 58173-12020 |
| 58175A | No. 1 parking brake base reinforcement | 57805-12150 · 57805-12151 · 58176-12020 |
| 58211H | central floor base | 58211-12933 |
| 58233 | Exhaust pipe mounting bracket | 58203-12070 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12090 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12090 |
| 58251C | Front floor right bracket | 58251-12040 |
| 58252B | Front floor left bracket | 58252-12040 |
| 58253D | Parking brake cable bracket | 58253-12060 |
| 58307 | Body lower back panel sub-assembly | 58307-12A40 |
| 58311 | rear floor pan | 58311-12310 |
| 58313 | Rear floor right panel | 58305-12040 |
| 58313B | Rear floor right panel | 58313-12320 |
| 58314 | rear floor left panel | 58306-12030 |
| 58314J | rear floor left panel | 58314-12320 |
| 58325E | Rear floor access hole cover | 58325-12130 |
| 58336B | Rear floor pan reinforcement | 58336-12090 |
| 58351A | Spare tire rack bracket | 58351-12060 |
| 58384G | Body lower back panel upper right corner panel | 58384-12170 |
| 58385G | Body lower back panel upper left corner panel | 58385-12150 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-12020 |
| 58791B | jack bracket | 58791-12230 |
| 64726K | Luggage rear trim clip | 64726-12040 |
