Toyota COROLLA 仪表板和手套箱 — Figure 5501

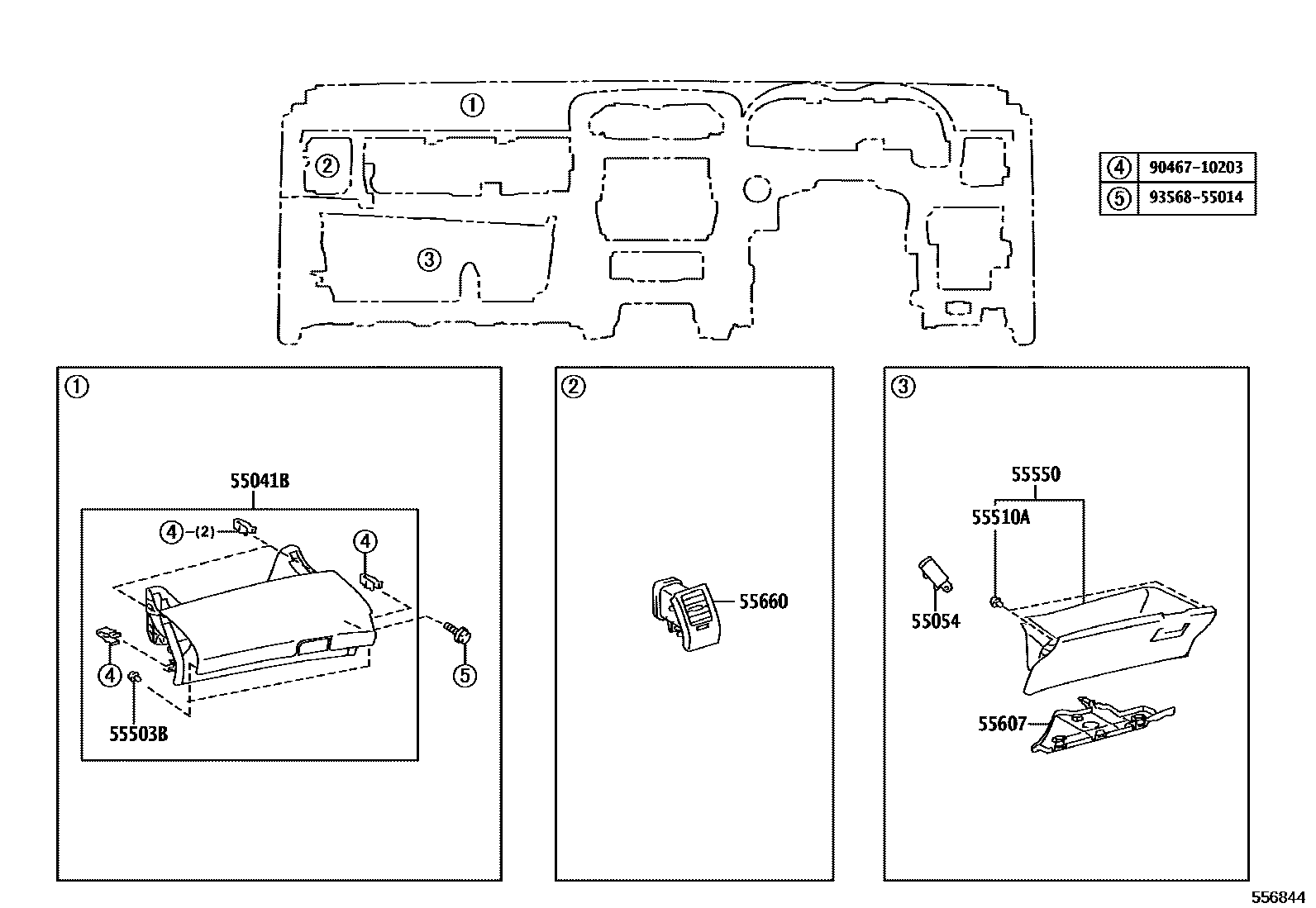

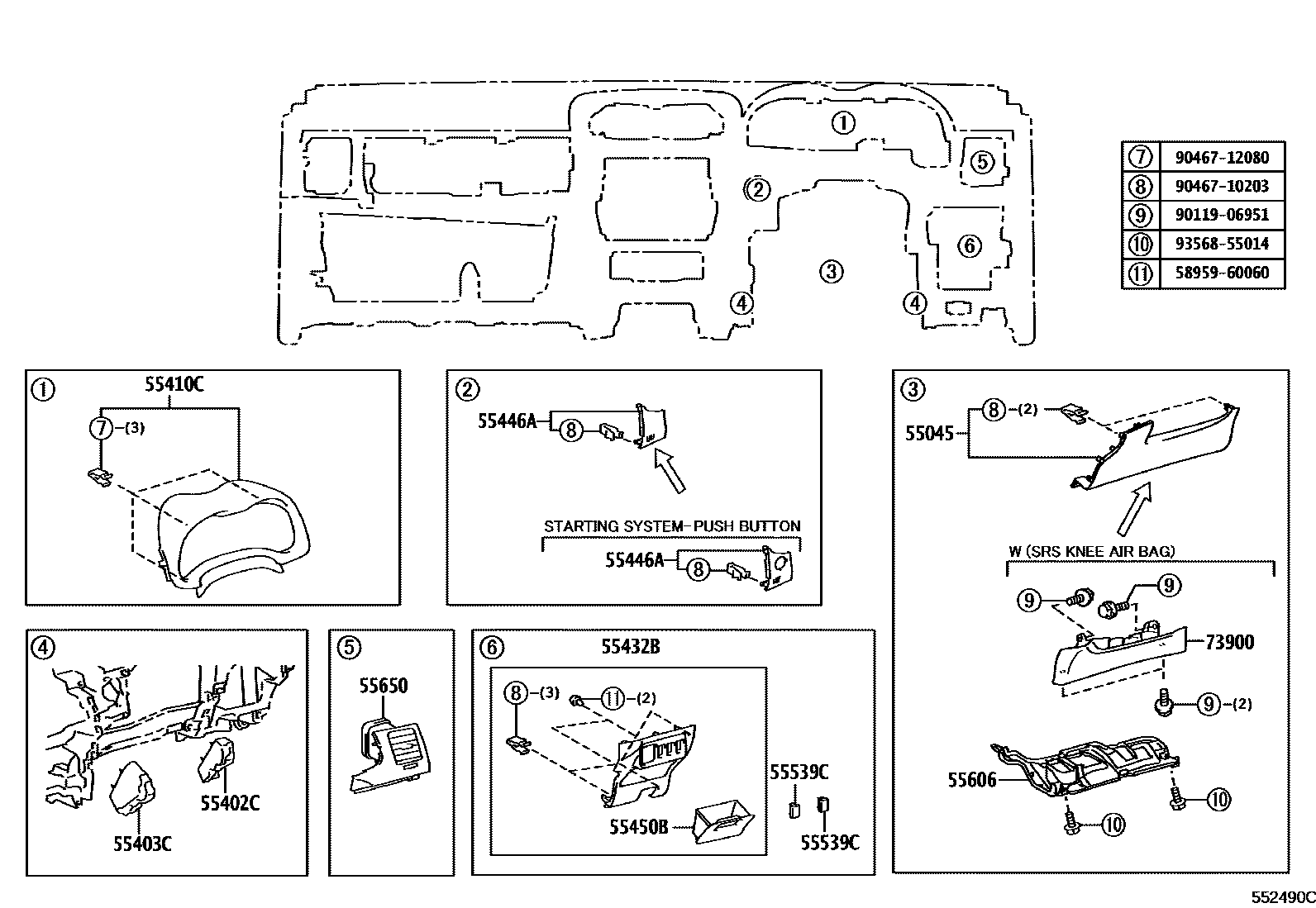

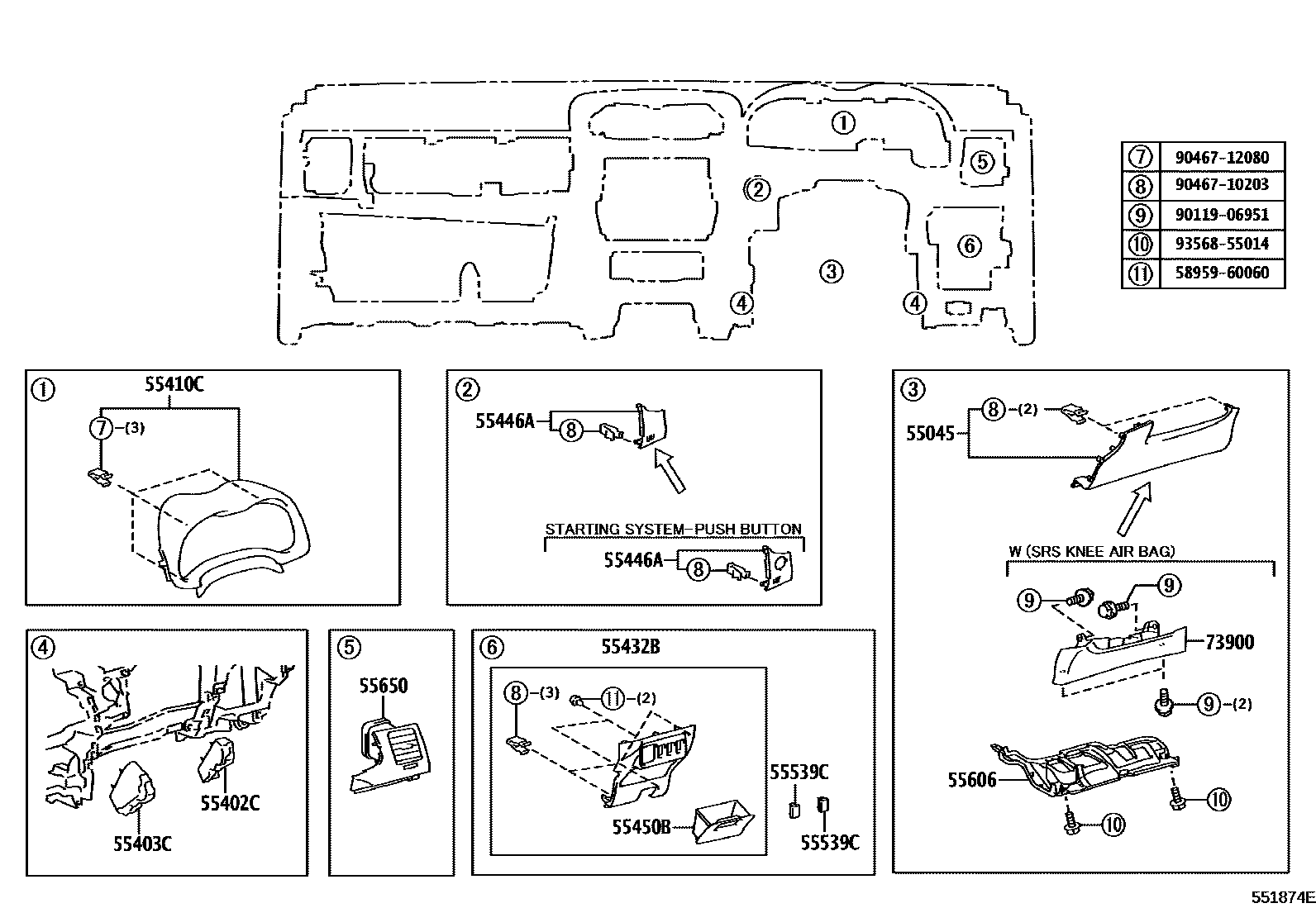

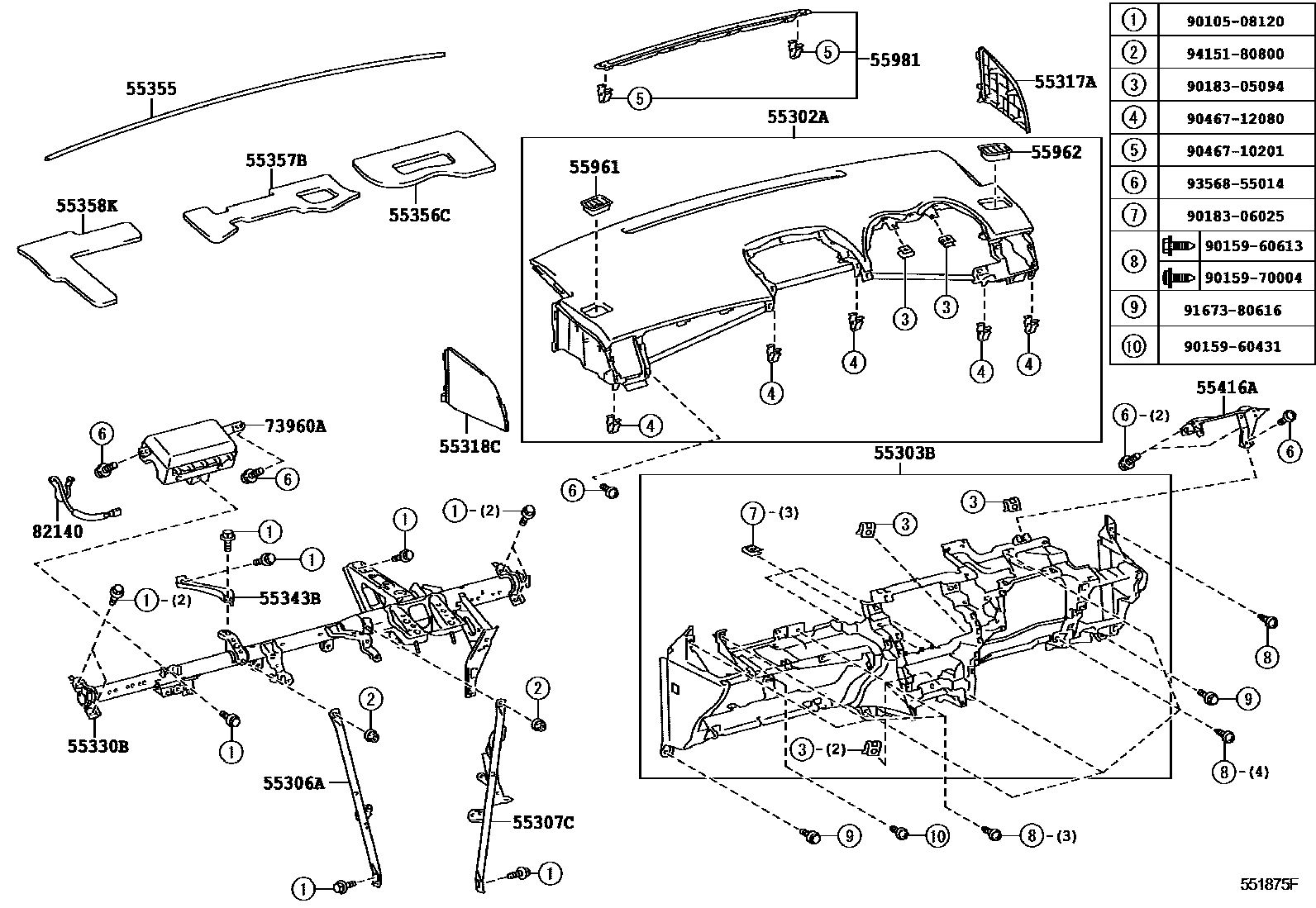

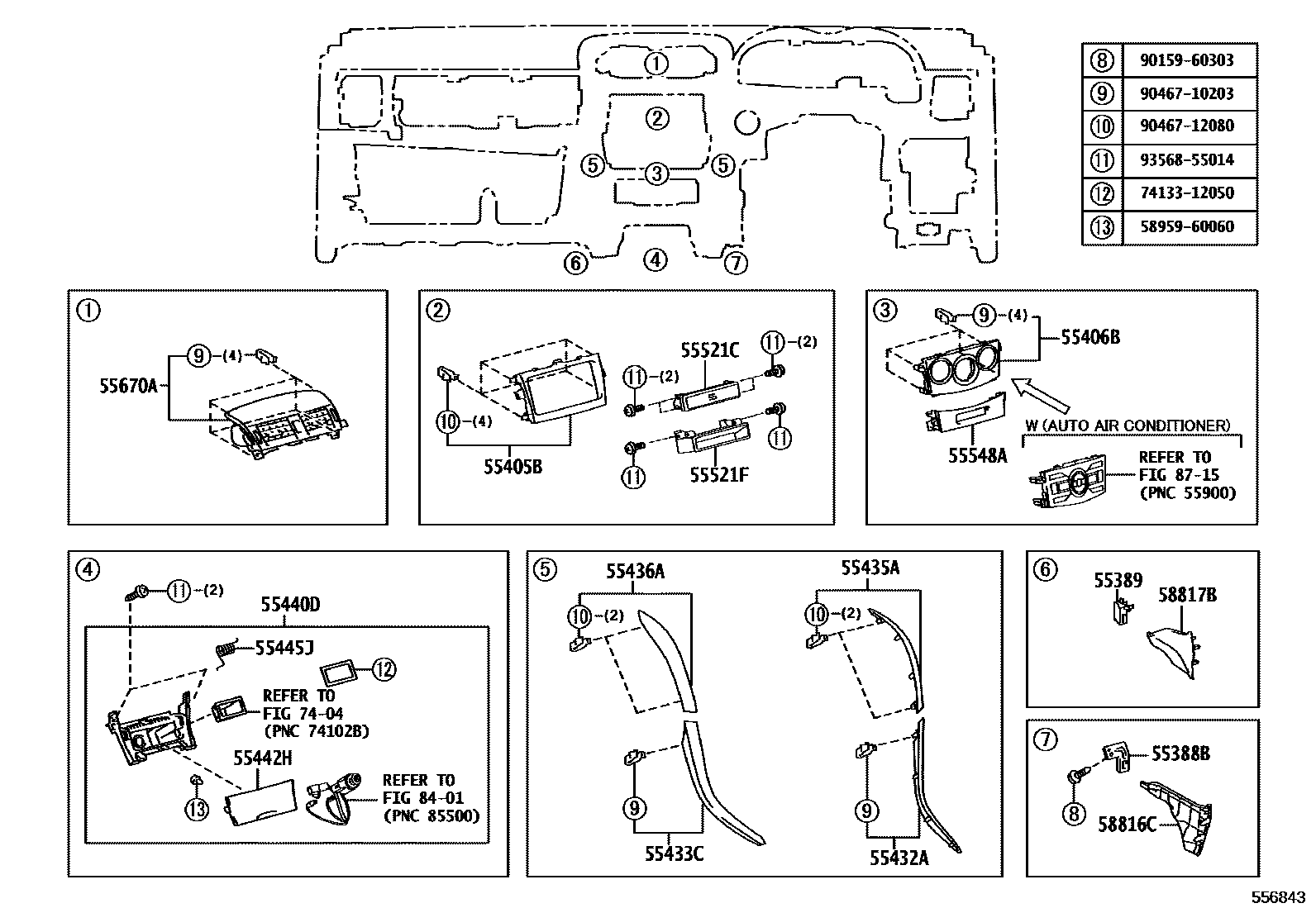

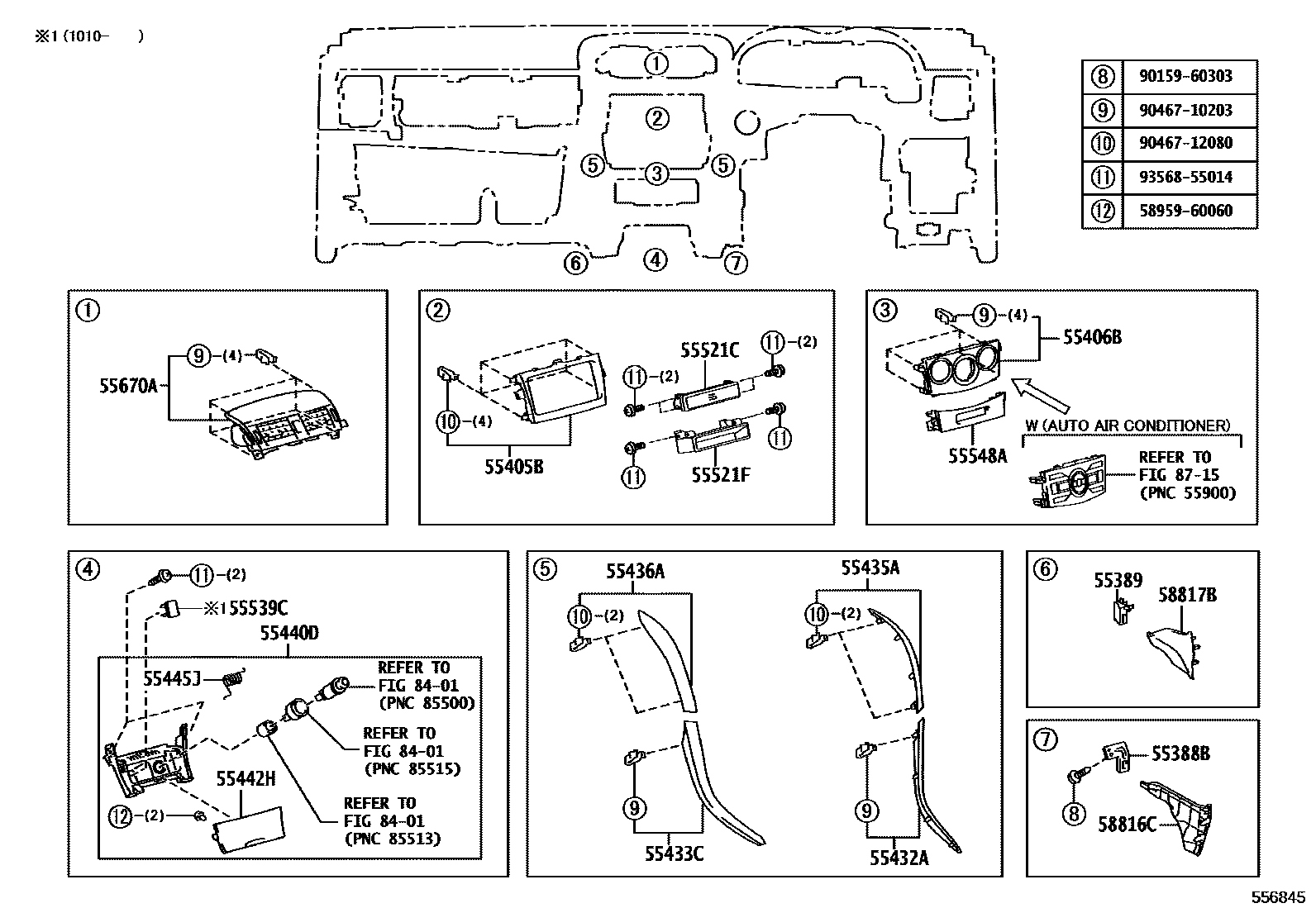

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 7 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12370 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12320 · 55307-12330 · 55307-12420 · 55307-12430 |
| 55330B | Instrument panel reinforcement assembly | 55330-12710 · 55330-12720 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12070 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12110 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-12150 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-12090 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-12080 |
| 55388B | Mounting bracket on the right side of the console | 55389-42020 |
| 55389 | Console left side mounting bracket | 55388-42020 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-12020 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-12070 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-12A30 · 55405-12A31 · 55405-12A70 · 55405-12A71 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12440 · 55406-12480 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-12080 |
| 55432A | Dashboard lower right decorative panel | 55432-12480 · 55432-12570 |
| 55433C | Instrument panel lower left decorative panel | 55433-12220 · 55433-12270 |
| 55435A | Dashboard right end decorative panel | 55435-12120 · 55435-12160 |
| 55436A | Instrument panel left end decorative panel | 55436-12090 · 55436-12130 |
| 55440D | Dashboard storage box assembly | 55440-12110 · 55440-12150 · 55440-12260 · 55440-12270 |
| 55442H | Dashboard storage box cover | 55442-12100 · 55442-12160 · 55442-12380 · 55442-12390 |
| 55445J | Dashboard storage box spring | 55445-12100 · 55445-12130 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-52020 |
| 55548A | Dashboard hole cover | 55548-12110 · 55548-12170 · 55548-12260 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-12090 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-12060 |
| 55670A | Instrument panel central air register assembly | 55670-12370 · 55670-12380 · 55670-12590 · 55670-12591 · 55670-12600 · 55670-12601 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-12110 · 55981-12150 · 55981-12170 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12140 |
| 82140 | Instrument panel wiring harness assembly | 82140-1A200 |
