Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 2 images and 6 PNC and OE references.

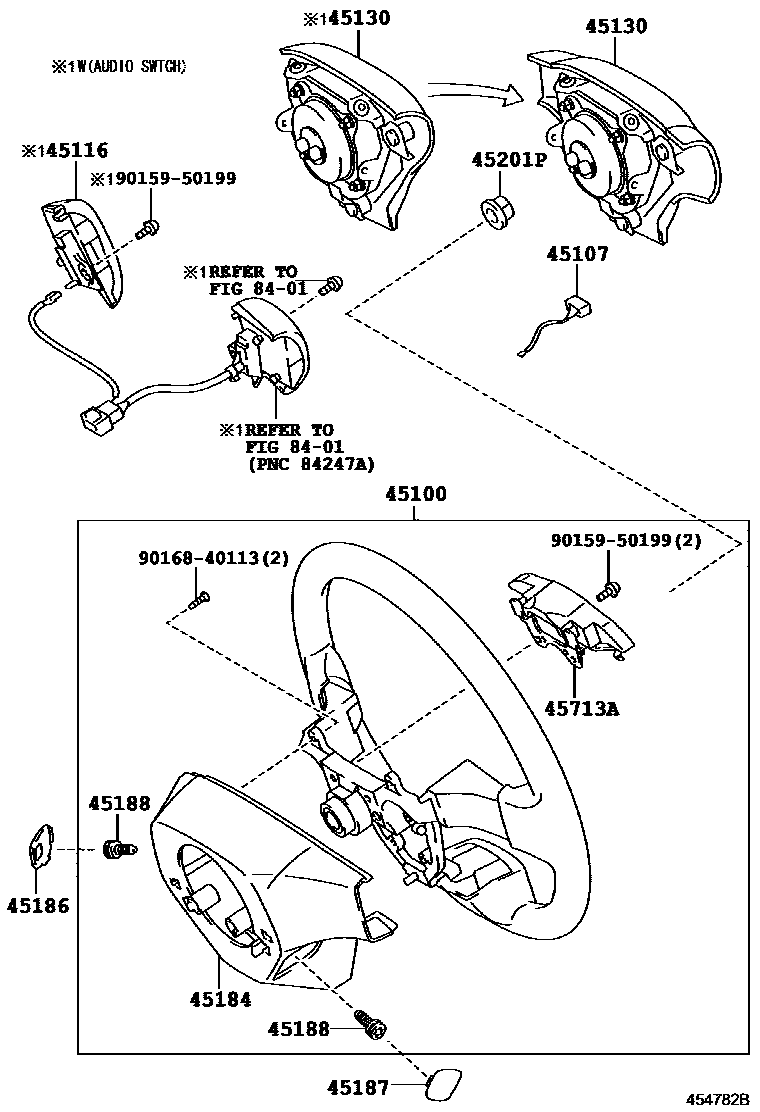

Toyota COROLLA Steering Wheel EPC diagram — 454782B
Steering Wheel — 454782B (200703 – 201004)

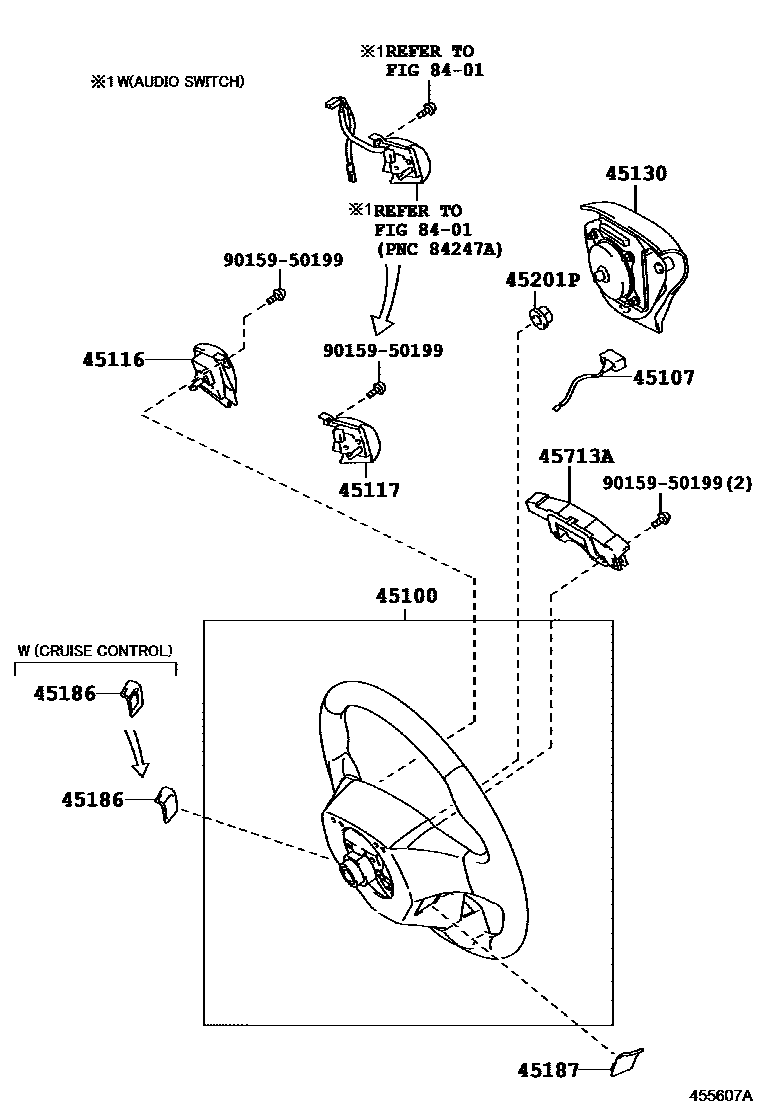

Toyota COROLLA Steering Wheel EPC diagram — 455607A
Steering Wheel — 455607A (201004 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-48010
45116No. 1 steering wheel decorative parts45116-12120 · 45116-52030
45117No. 2 steering wheel decorative parts45117-12020
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
45713Asteering damper45713-12080 · 45713-12110
