Toyota COROLLA Front Drive Shaft — Figure 4302

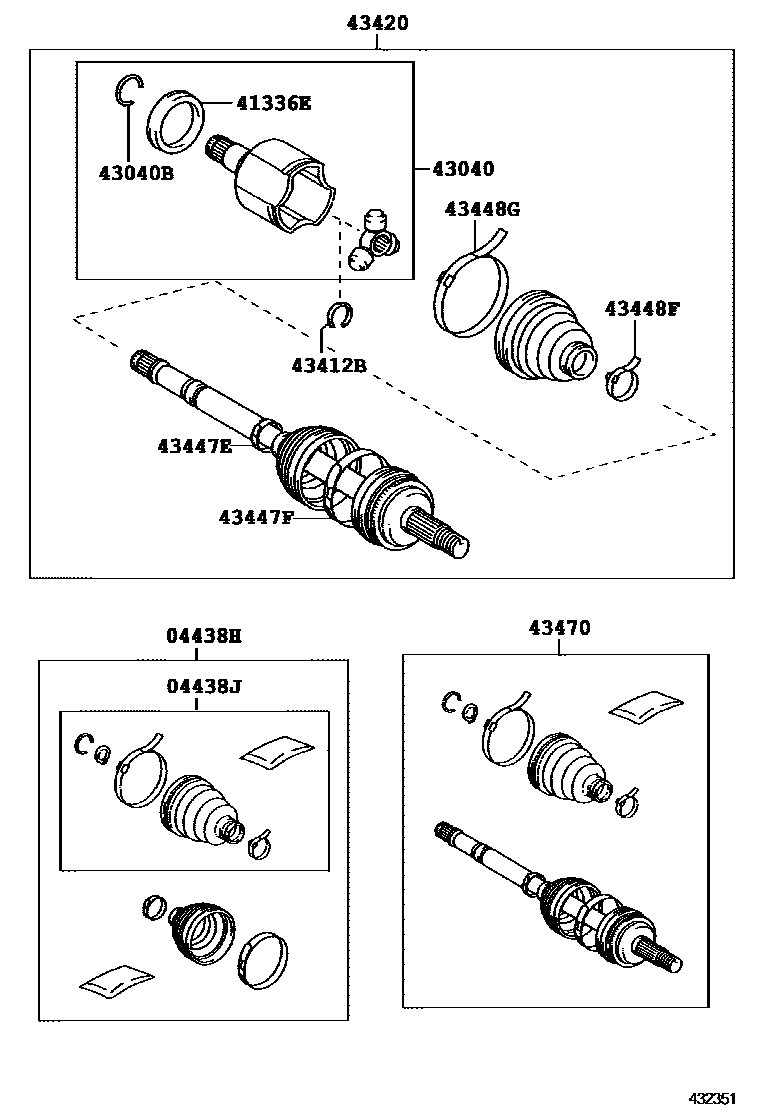

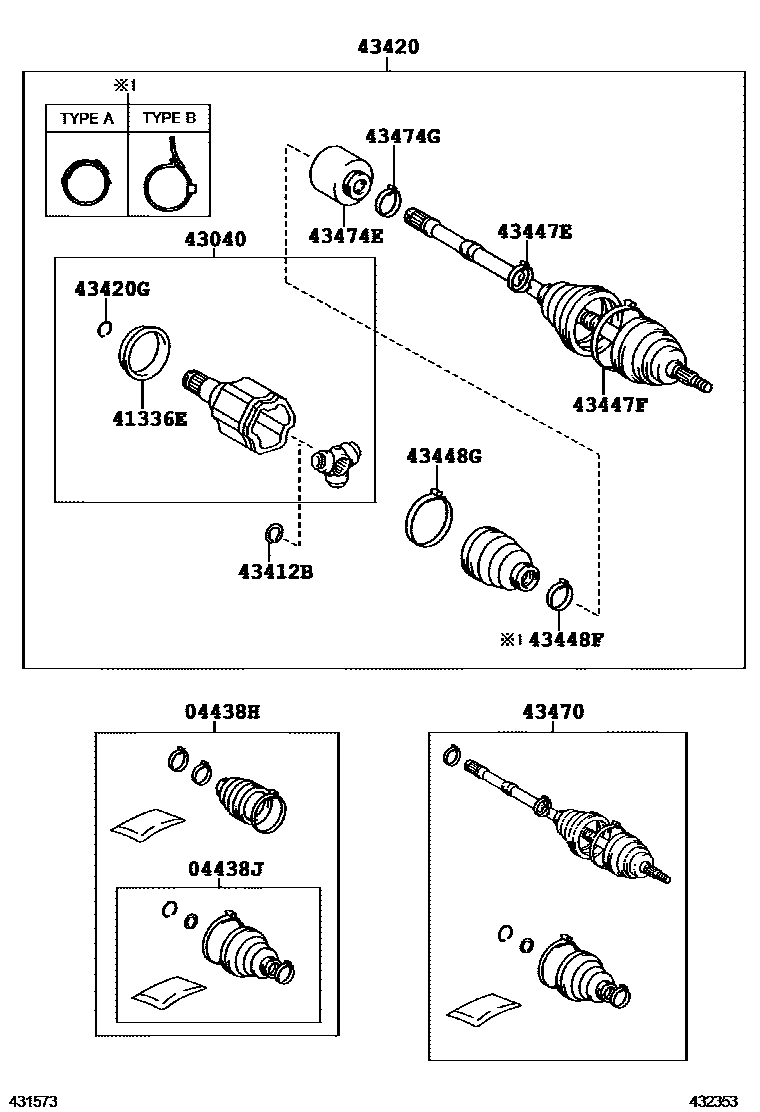

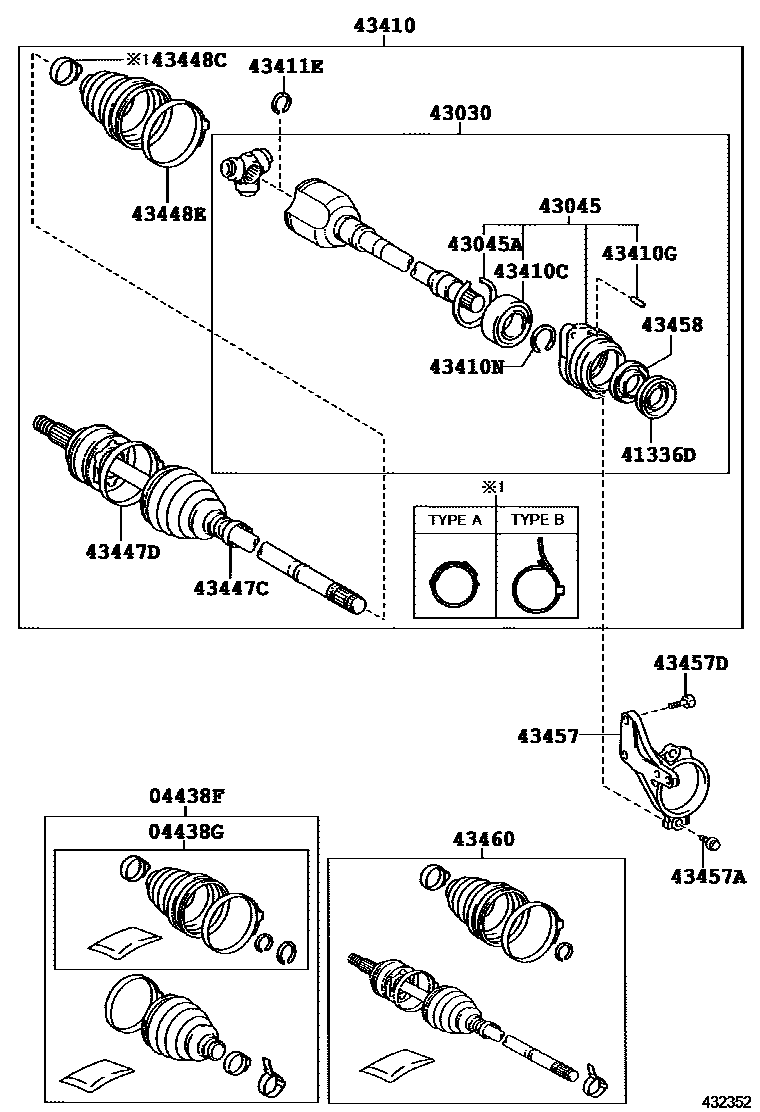

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-44050 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02280 · 04438-42180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02410 · 04428-42110 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02280 · 04438-42180 |
| 41336D | Right front driveshaft dust cover | 41336-05140 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-05140 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-44021 · 43040-05110 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90080-52055 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-05110 · 43040-28011 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90080-52055 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-02580 · 43410-02581 · 43410-12820 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-02620 · 43420-02621 · 43420-42160 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-05140 · 42345-42100 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02220 · 42345-42090 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-05140 · 42345-42100 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02220 · 42345-42090 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02240 · 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-05030 · 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02240 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-05030 · 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-28060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09R30 · 43460-09R31 · 43470-49645 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09S50 · 43470-09S51 · 43470-49645 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02230 |
| 43474D | Right front driveshaft shock absorber | 43474-02150 |
| 43474E | Left front driveshaft shock absorber | 43474-42020 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-14010 |
