Toyota COROLLA 燃油喷射系统 — Figure 2211

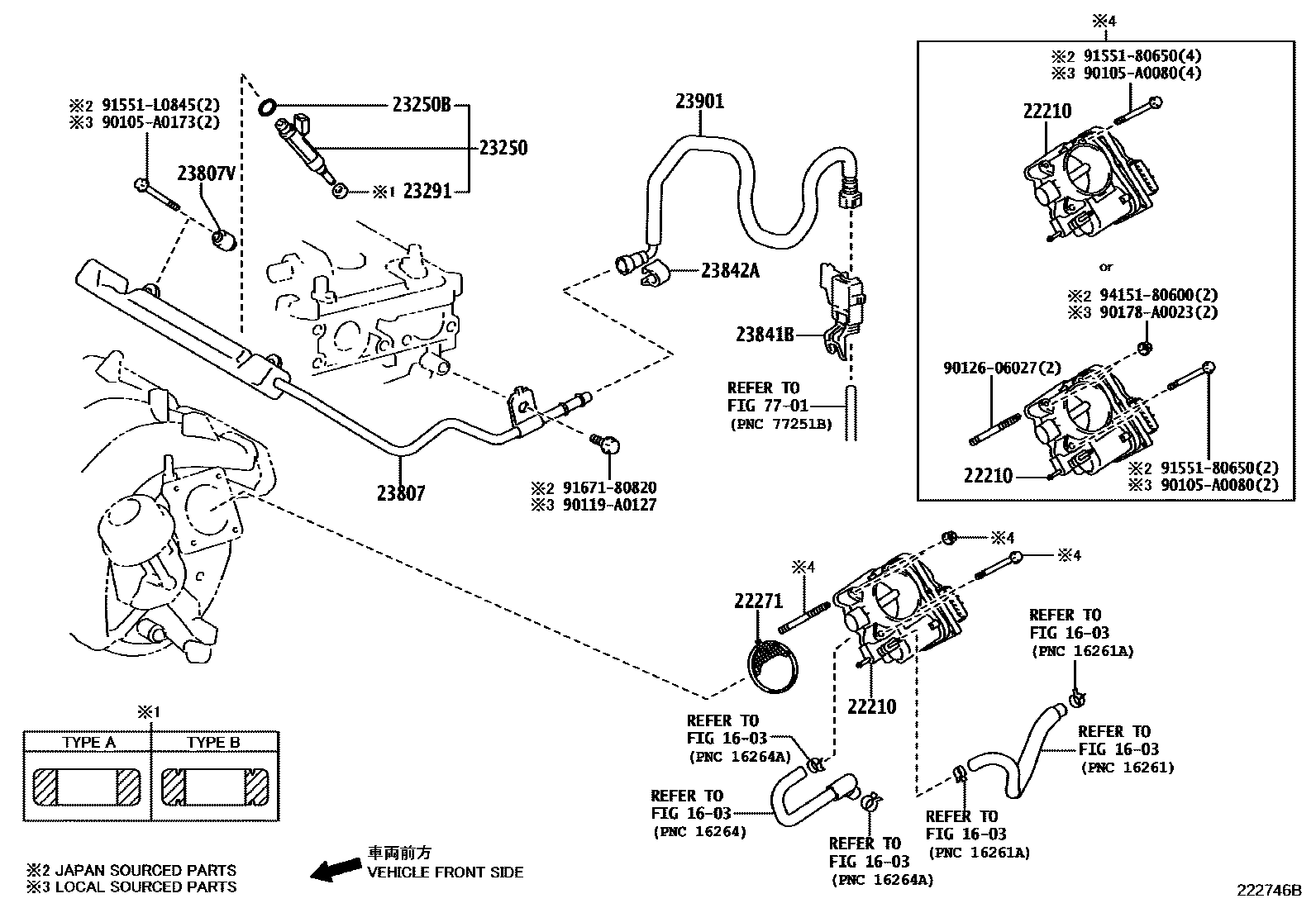

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22030-0T080 · 22030-37010 · 22030-37050 |
| 22271 | Throttle body gasket | 22271-0D051 · 22271-75031 |
| 23250 | Fuel injector assembly | 23209-09140 · 23209-39145 · 23209-39146 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-A0036 |
| 23291 | Injector vibration isolation pad | 23291-23010 · 23291-28020 · 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23814-37050 · 23814-37051 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21040 · 23841-37090 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-28010 |
| 23901 | Fuel pipe sub-assembly | 23901-22180 · 23901-37080 |
