Toyota COROLLA 起动机 — Figure 1904

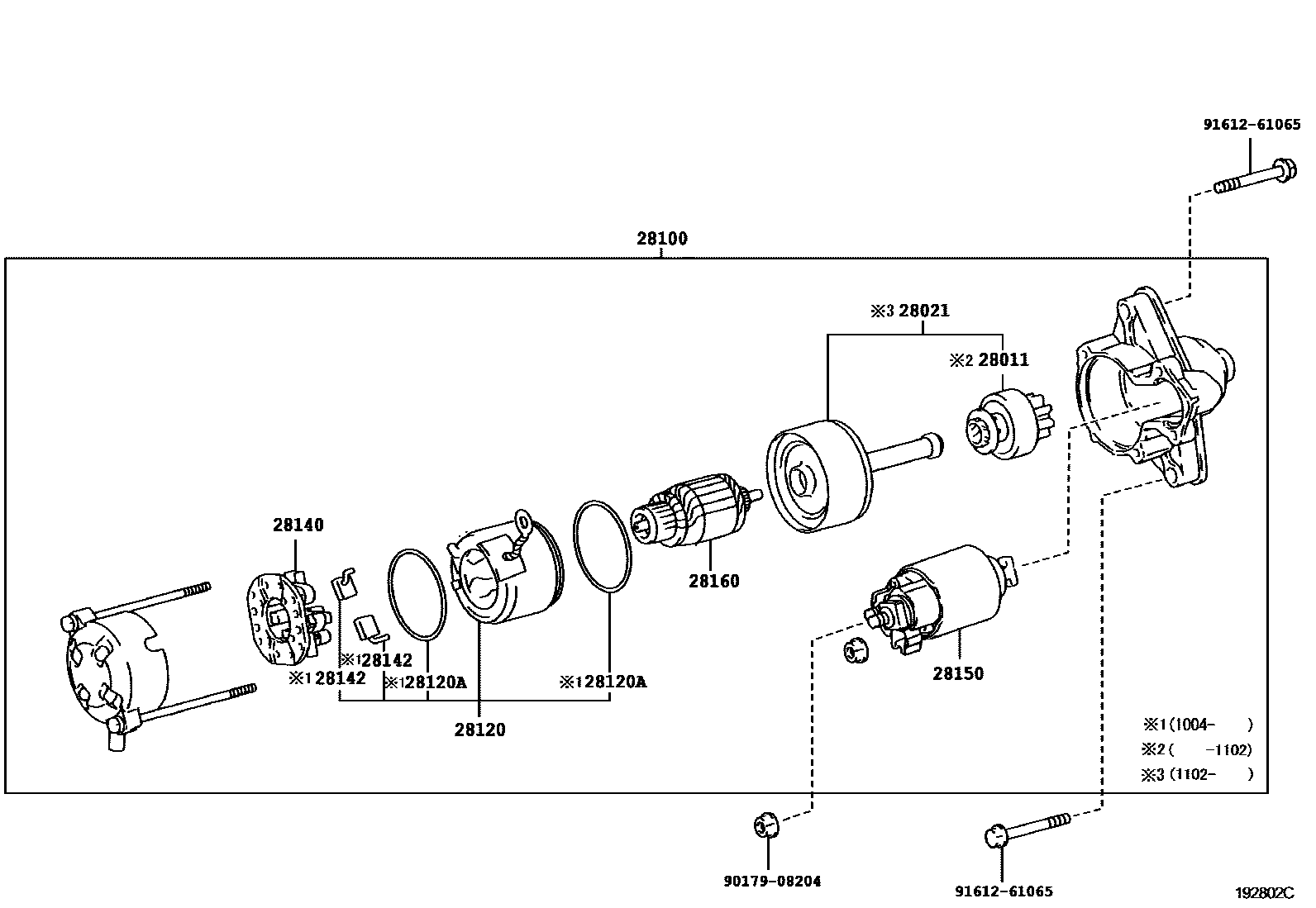

Toyota COROLLA EPC diagram 1904, 起动机, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-70020 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-70020 |
| 28100 | Starter assembly | 28100-37020 · 28100-37021 · 28100-37031 |
| 28120 | Starter yoke assembly | 28120-40130 · 28120-47120 · 28120-70020 |
| 28120A | O-ring (for starter yoke) | 90099-14092 |
| 28140 | Starter brush holder assembly | 28140-70020 |
| 28142 | starter brush | 28142-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-22100 |
| 28160 | Starter armature assembly | 28160-70021 · 28160-70050 |
