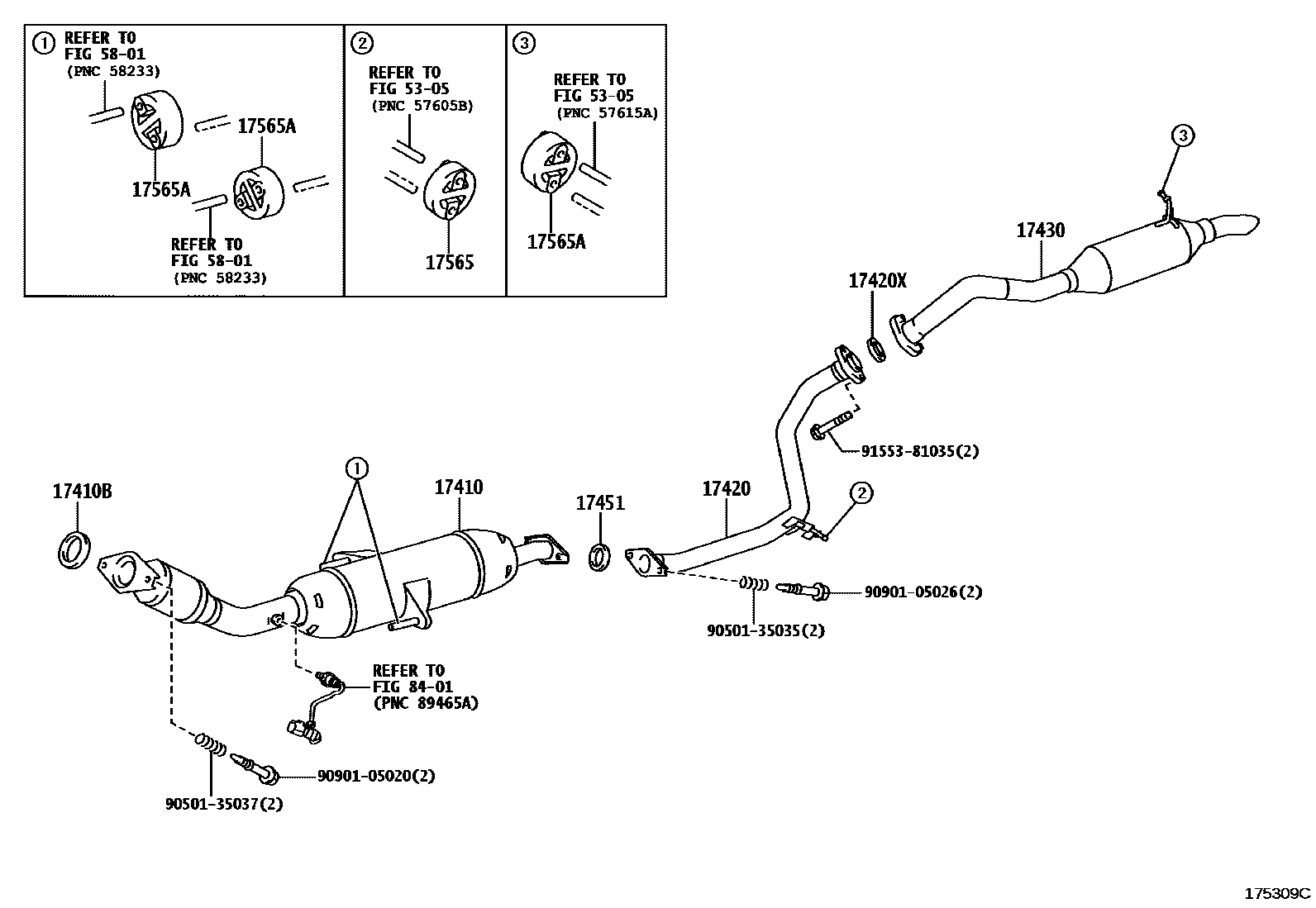

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-22600 · 17410-37380 |
| 17410B | Exhaust pipe gasket | 17451-28040 |
| 17420 | Central exhaust pipe assembly | 17420-22110 |
| 17420X | Center exhaust pipe liner | 90917-06089 |
| 17430 | Exhaust tailpipe assembly | 17430-37170 |
| 17451 | Exhaust pipe gasket | 17451-28030 · 17451-28031 · 17451-28032 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 |
