Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 11 PNC and OE references.

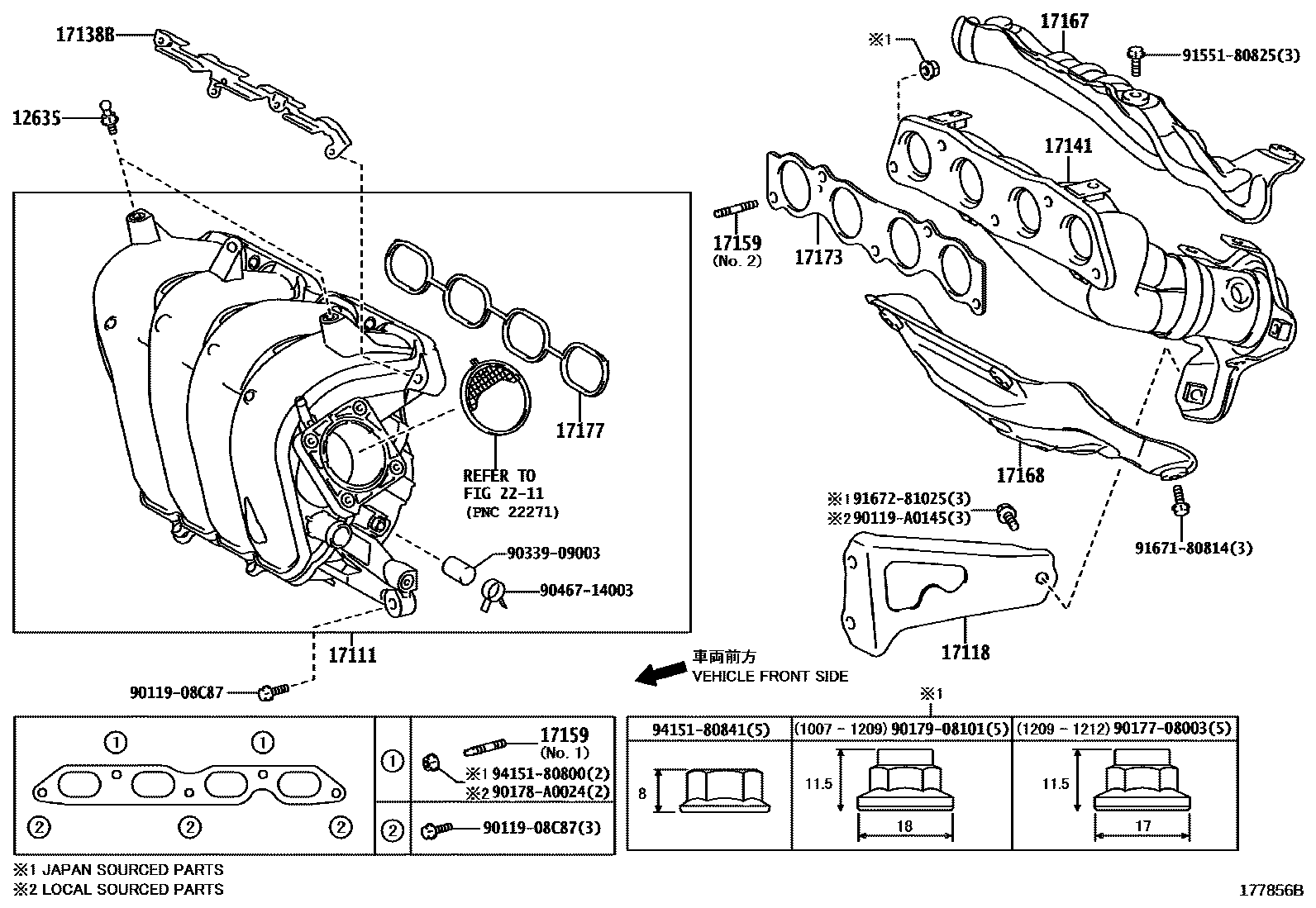

Toyota COROLLA Manifold EPC diagram — 177856B
Manifold — 177856B (201004 – 999999)

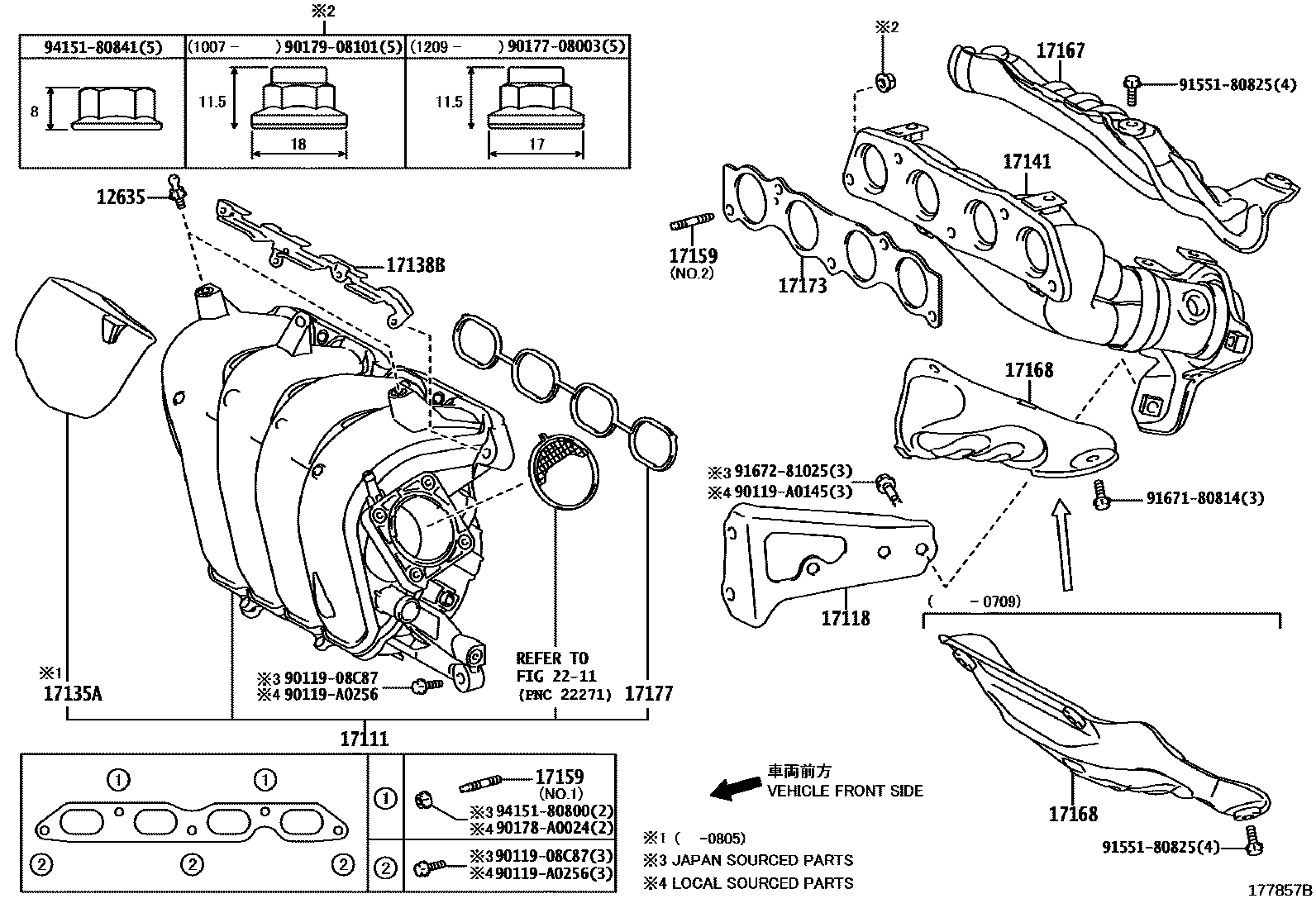

Toyota COROLLA Manifold EPC diagram — 177857B
Manifold — 177857B (200703 – 999999)

PNC and OE references

PNCPart nameOE numbers
12635hood connector90109-06385
17111Intake Manifold17120-0T012 · 17120-37020 · 17120-37021 · 17120-37022 · 17120-37031
17118Manifold stays17118-0T060 · 17118-37010 · 17118-37050
17135AIntake manifold No. 1 heat shield17135-37010
17138BIntake manifold stay17138-0T010 · 17138-37010 · 17138-37011
17141exhaust manifold17141-37051 · 17141-37080
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08052 · 90126-A0006 · 90126-A0019
17167Exhaust manifold No. 1 heat shield17167-37011 · 17167-37050
17168Exhaust manifold No.2 insulation pad17168-37030 · 17168-37070 · 17168-37100
17173Gasket (exhaust manifold to cylinder head)17173-0T030 · 17173-37010
17177No. 1 gasket (intake manifold to cylinder head)17177-0T020 · 17177-37030
