Toyota COROLLA Camshaft & Valve — Figure 1302

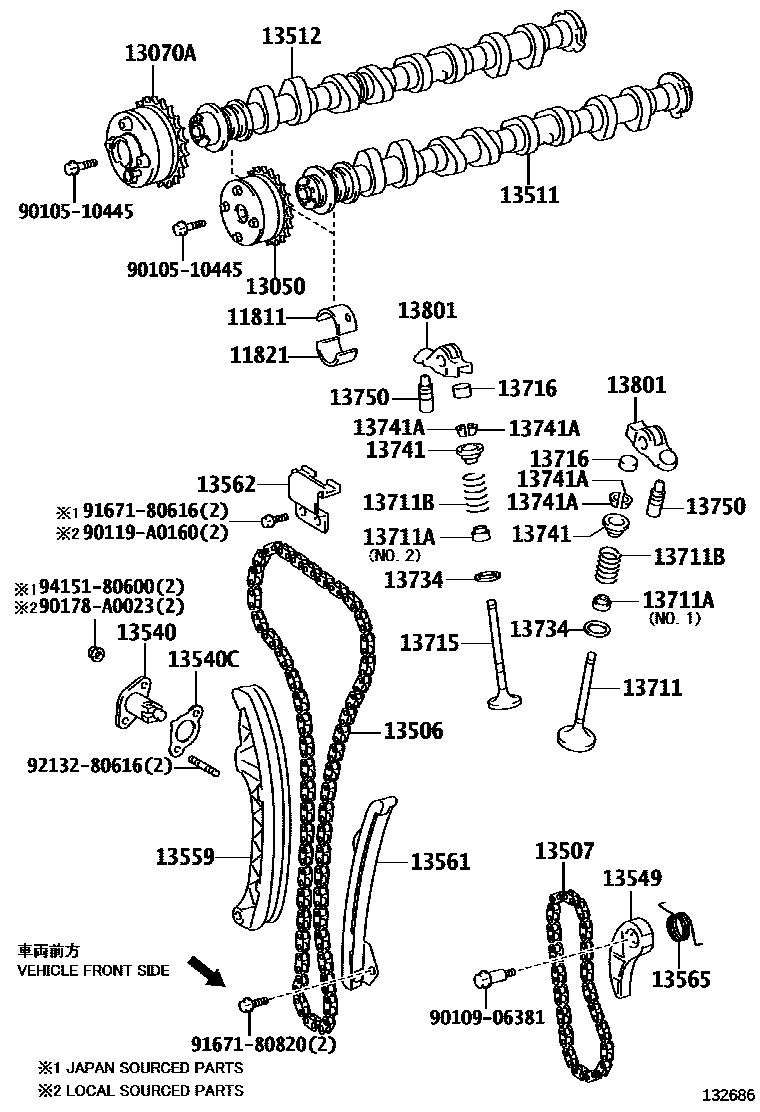

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 1 images and 25 PNC and OE references.

Toyota COROLLA Camshaft & Valve EPC diagram — 132686 — Camshaft & Valve — 132686 (200703 – 999999)

PNC and OE references

PNC	Part name	OE numbers
11811	No. 1 camshaft bearing	11811-0T020 · 11811-37010
11821	No. 2 camshaft bearing	11821-0T020 · 11821-37010
13050	Camshaft timing gear assembly	13050-0T010 · 13050-0T011 · 13050-0T021 · 13050-0T022 · 13050-0T050 · 13050-37012 · 13050-37030 · 13050-37060
13070A	Exhaust camshaft timing gear assembly	13070-0T011 · 13070-37010
13506	Chain sub-assembly	13506-0T020 · 13506-37010 · 13506-37020
13507	No. 2 chain sub-assembly	13507-28010
13511	camshaft	13501-0T010 · 13501-0T030 · 13501-37010 · 13501-37011
13512	Camshaft No. 2	13502-0T010 · 13502-0T030 · 13502-37010
13540	No. 1 chain tensioner assembly	13540-0T020 · 13540-37020 · 13540-37030
13540C	Pad (for chain tensioner)	13552-0T020 · 13552-37010
13549	chain tensioner pressure plate	13549-0T020 · 13549-37010
13559	chain tensioner guide plate	13559-0T020 · 13559-37010 · 13559-37020 · 13559-37030
13561	No. 1 chain shock absorber	13561-0T020 · 13561-37020
13562	No. 2 chain shock absorber	13562-0T020 · 13562-37010
13565	chain damper spring	13565-0T020 · 13565-37010
13711	intake valve	13711-0T010 · 13711-37020
13711A	Oil seal or O-ring (for valve stem)	90080-31043 · 90080-31101 · 90913-02101 · 90913-02112
13711B	Compression spring (for inner side)	90501-31024 · 90501-31027 · 90501-A0058 · 90501-A0093
13715	exhaust valve	13715-0T010 · 13715-37030
13716	valve stem cover	13716-75020
13734	Valve spring seat	13734-0P010 · 13734-62020
13741	Valve spring seat ring	13741-0V010 · 13741-20021
13741A	Valve spring seat lock plate	90913-03028 · 90913-A3001
13750	Valve lash adjuster assembly	13750-0P010 · 13750-75020
13801	No. 1 valve rocker arm sub-assembly	13801-0P010 · 13801-23011
