Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 6 PNC and OE references.

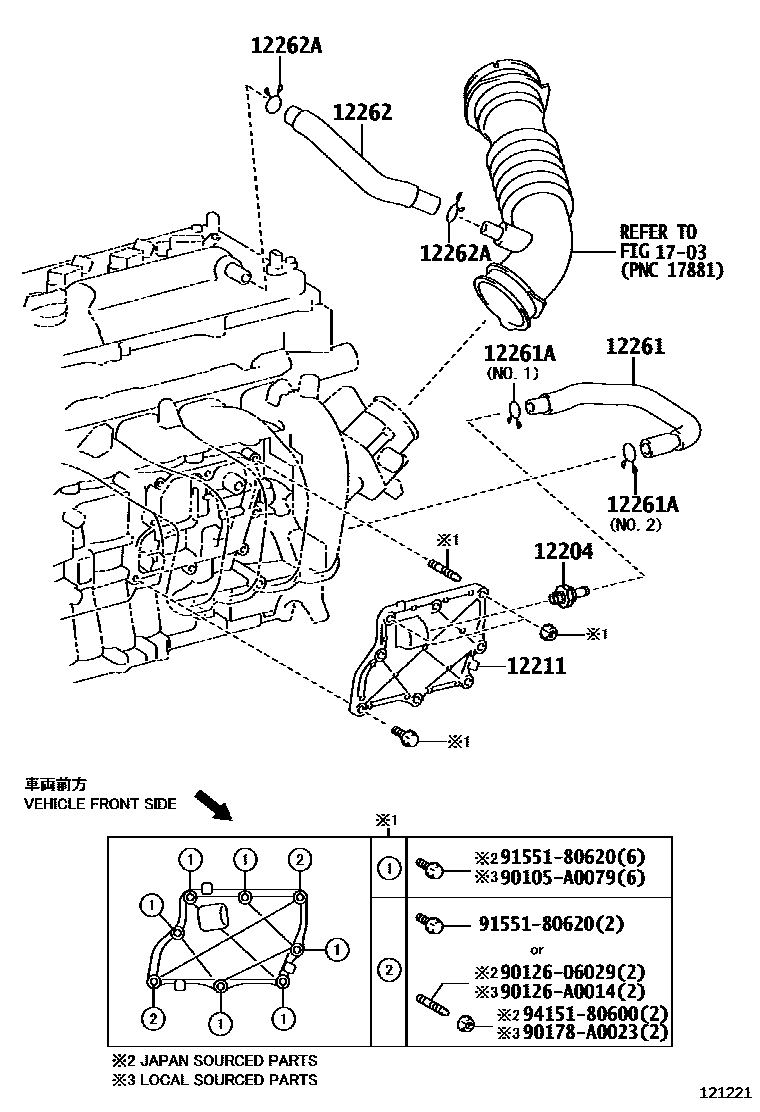

Toyota COROLLA Ventilation Hose EPC diagram — 121221
Ventilation Hose — 121221 (200703 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010
12211Ventilation box No. 112211-0T020 · 12211-37010
12261Ventilation Hose12261-37040 · 12261-37080
12261AClip or clip (for vent hose)90466-22005 · 90467-15120 · 90467-22010 · 90467-23002
12262Ventilation hose No. 212262-37020
12262AClamp (for vent hose No. 2)90467-21004
