Toyota COROLLA Engine Mounting — Figure 1107

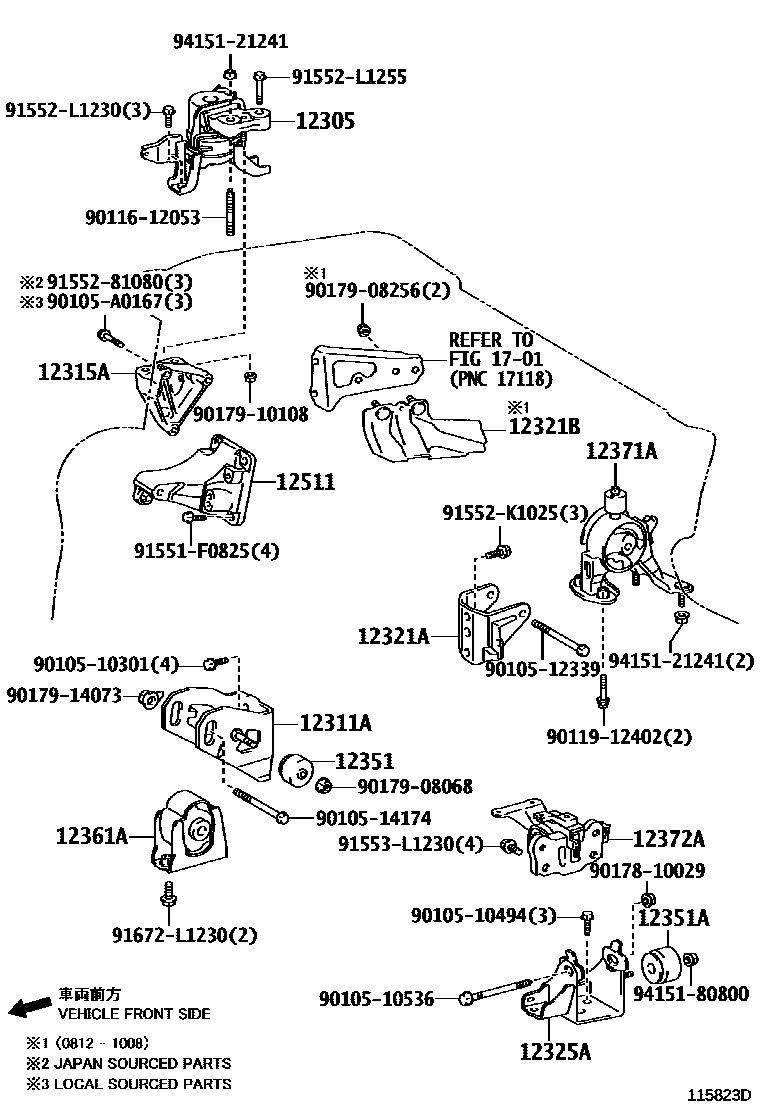

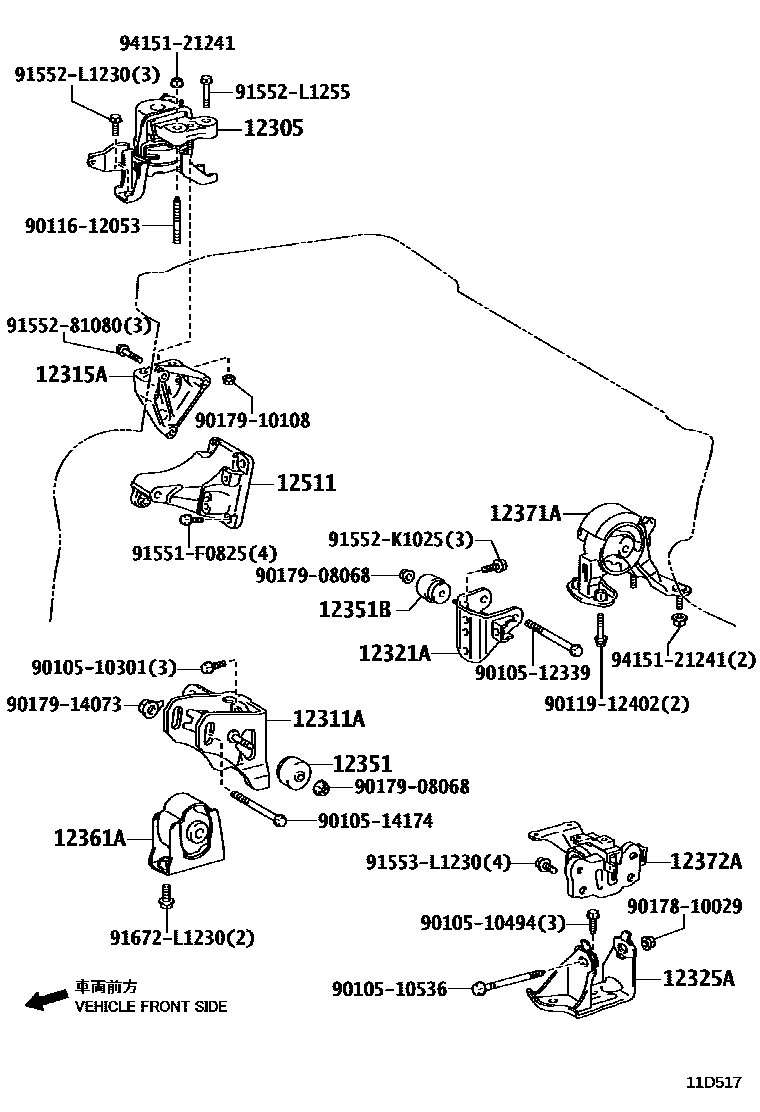

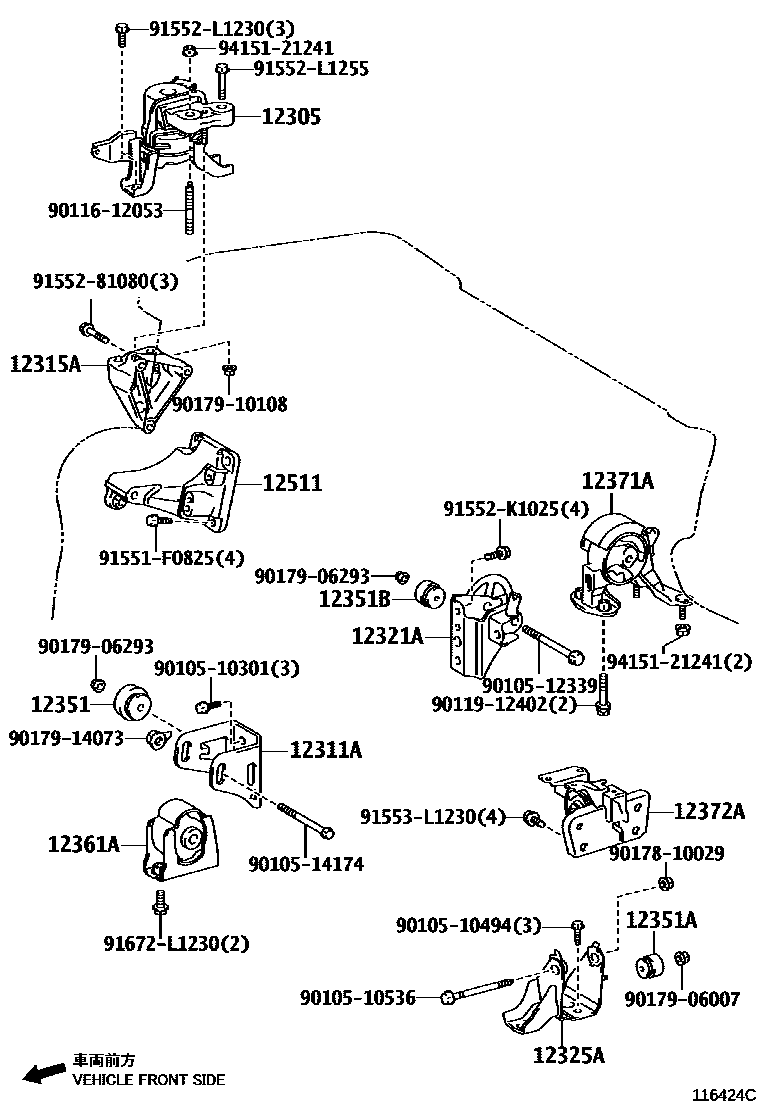

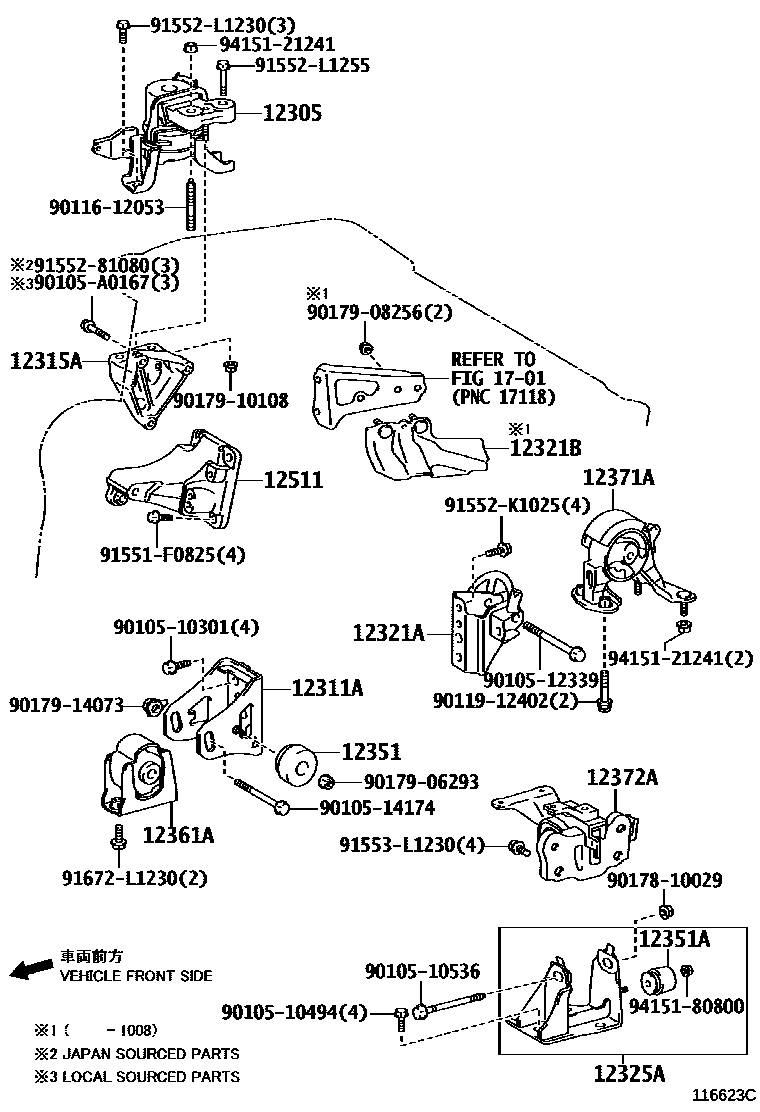

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-22360 · 12305-22361 · 12305-37210 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-22230 · 12311-22260 · 12311-37120 · 12311-37140 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-22200 · 12321-22230 · 12321-37100 · 12321-37150 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-20031 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-37100 · 12325-22280 · 12325-22310 · 12325-37140 |
| 12351 | engine mount shock absorber | 12351-27050 · 12351-37020 · 12351-37060 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-26010 · 12351-37030 · 12351-37110 |
| 12351B | engine mount shock absorber | 12351-26010 · 12351-37070 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-28230 · 12361-28240 |
| 12371A | Engine rear mount vibration isolation pad | 12371-22220 · 12371-22240 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-22150 · 12372-22180 · 12372-37150 · 12372-37170 |
| 12511 | No. 1 generator bracket | 12511-0T030 · 12511-37010 |
