Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

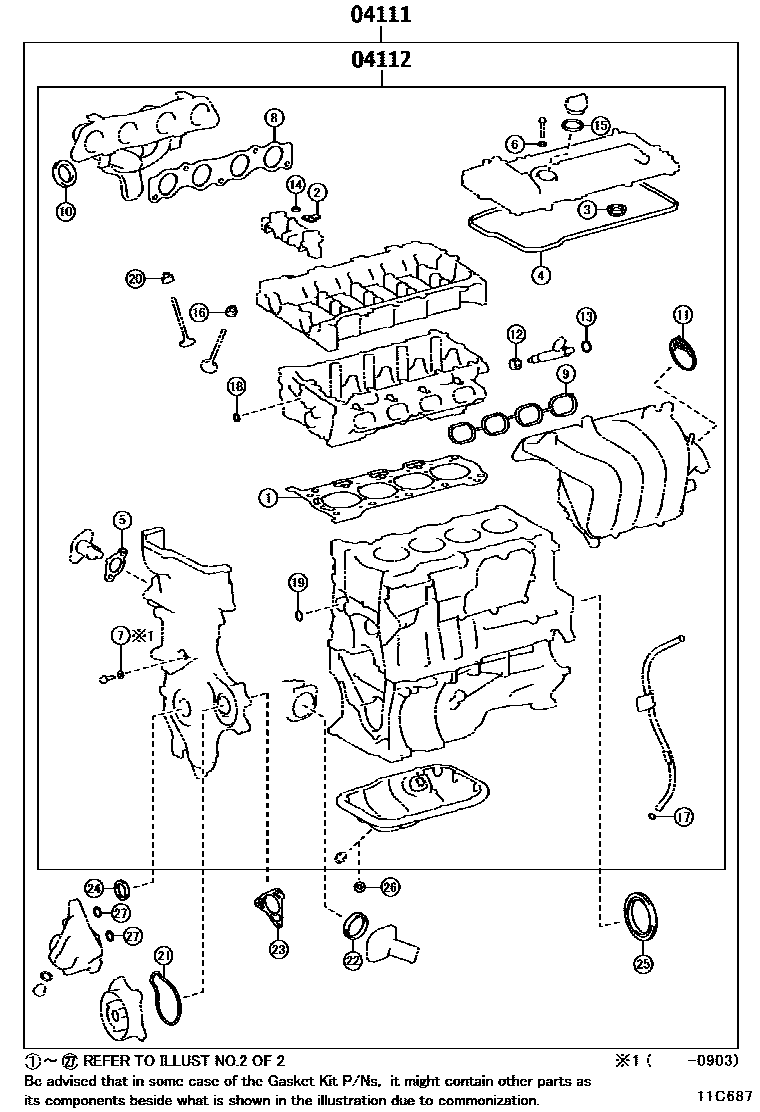

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C687
Engine Overhaul Gasket Kit — 11C687 (200703 – 999999)

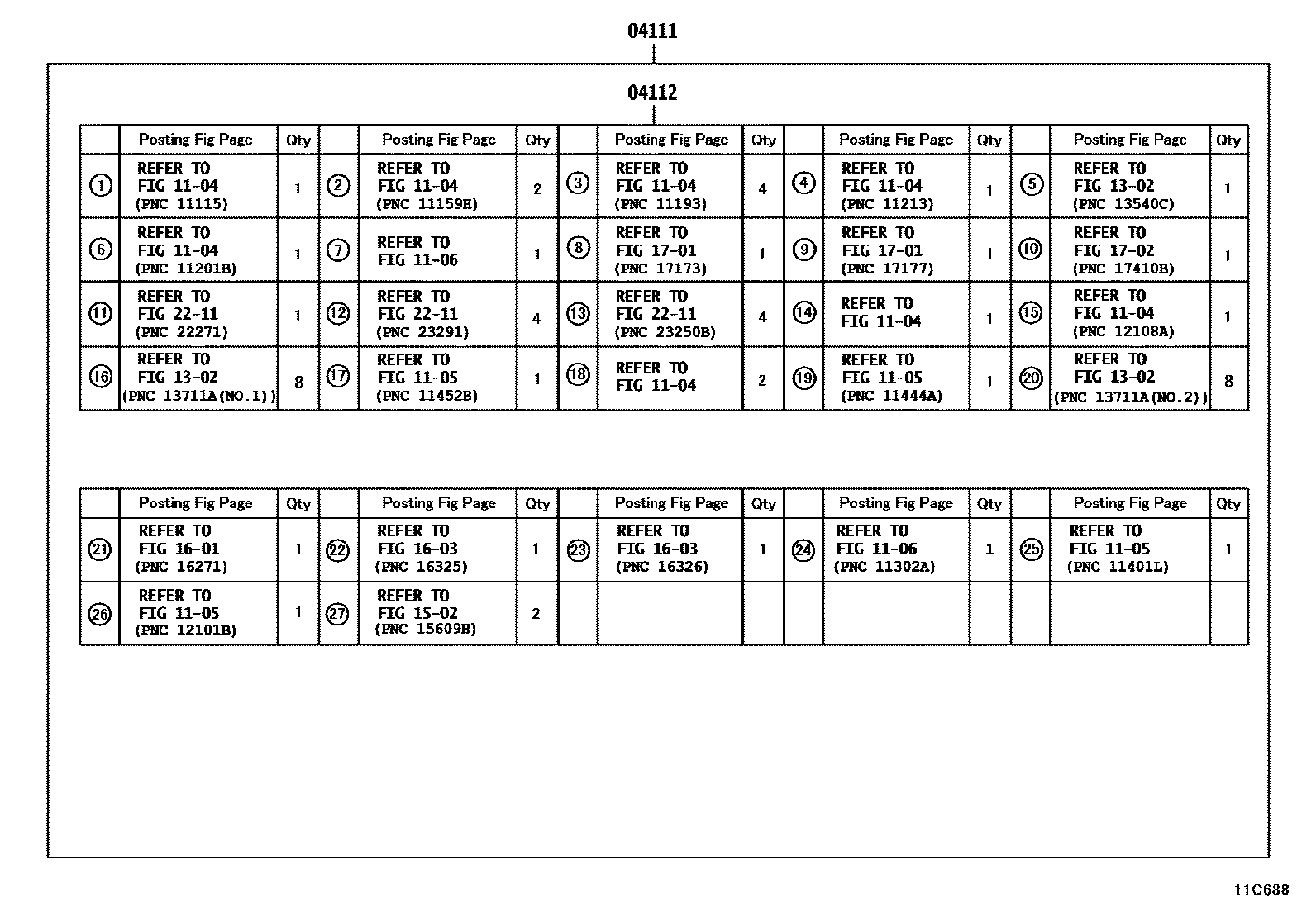

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C688
Engine Overhaul Gasket Kit — 11C688 (200703 – 999999)

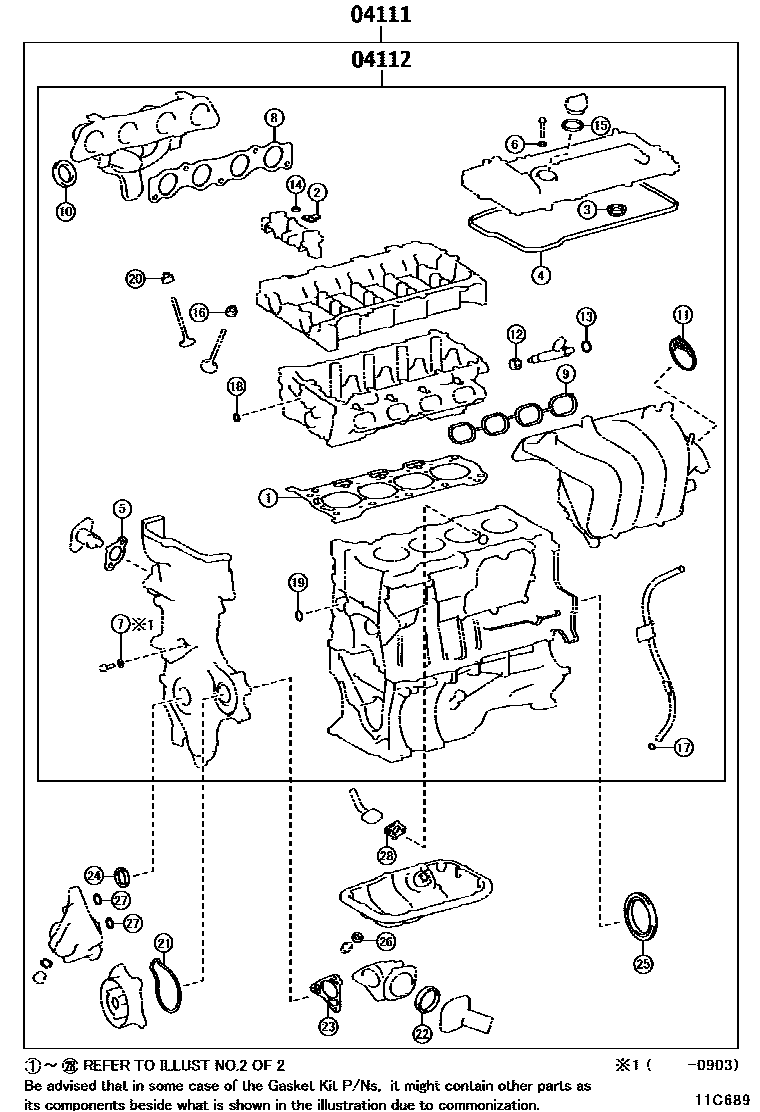

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C689
Engine Overhaul Gasket Kit — 11C689 (201004 – 999999)

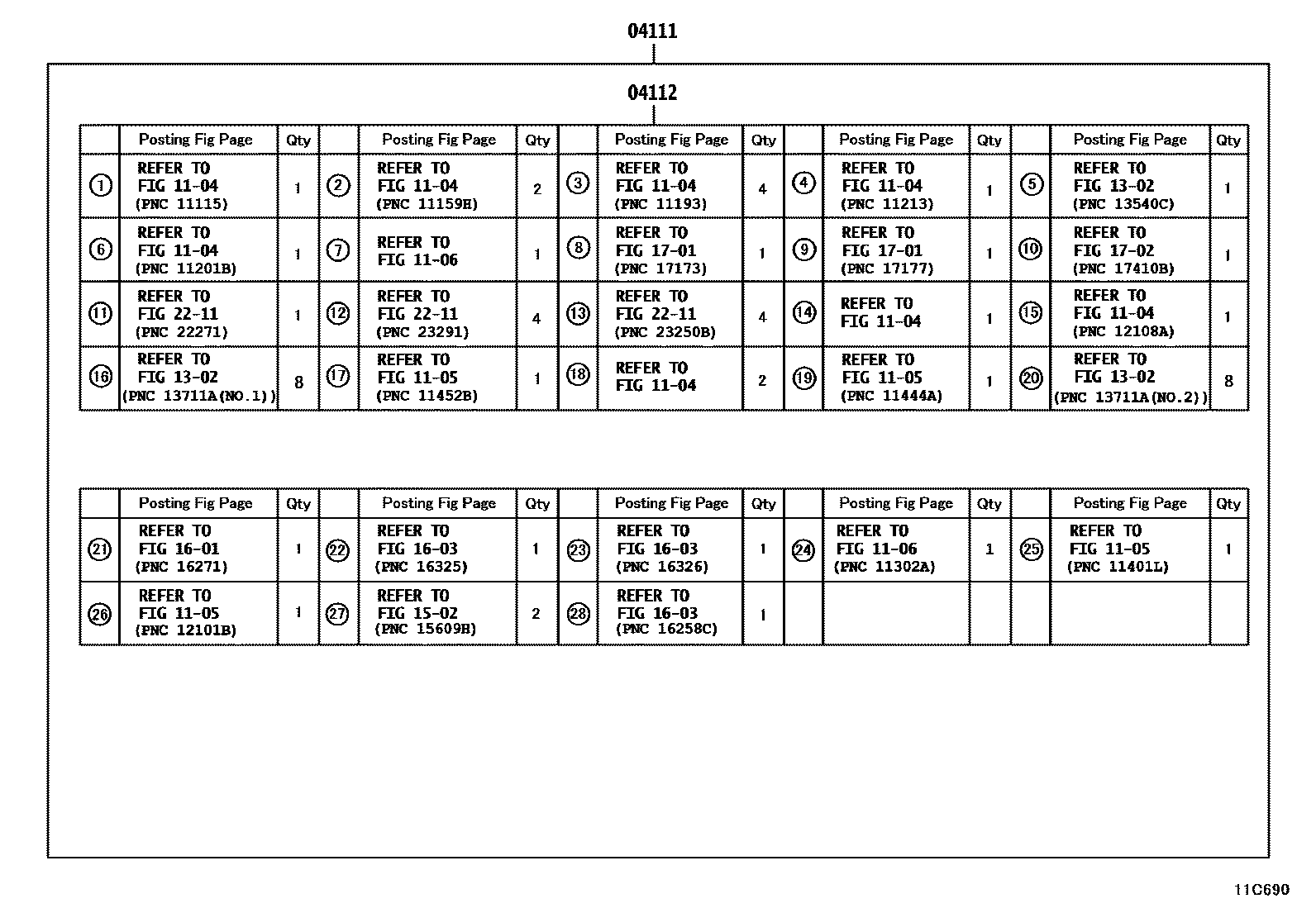

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C690
Engine Overhaul Gasket Kit — 11C690 (201004 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T132 · 04111-0T133 · 04111-37091 · 04111-37092 · 04111-37093 · 04111-37095 · 04111-37096 · 04111-37181 · 04111-37183 · 04111-37184
04112Engine valve grinding pad assembly04112-0T131 · 04112-0T132 · 04112-37071 · 04112-37072 · 04112-37073 · 04112-37074 · 04112-37075
