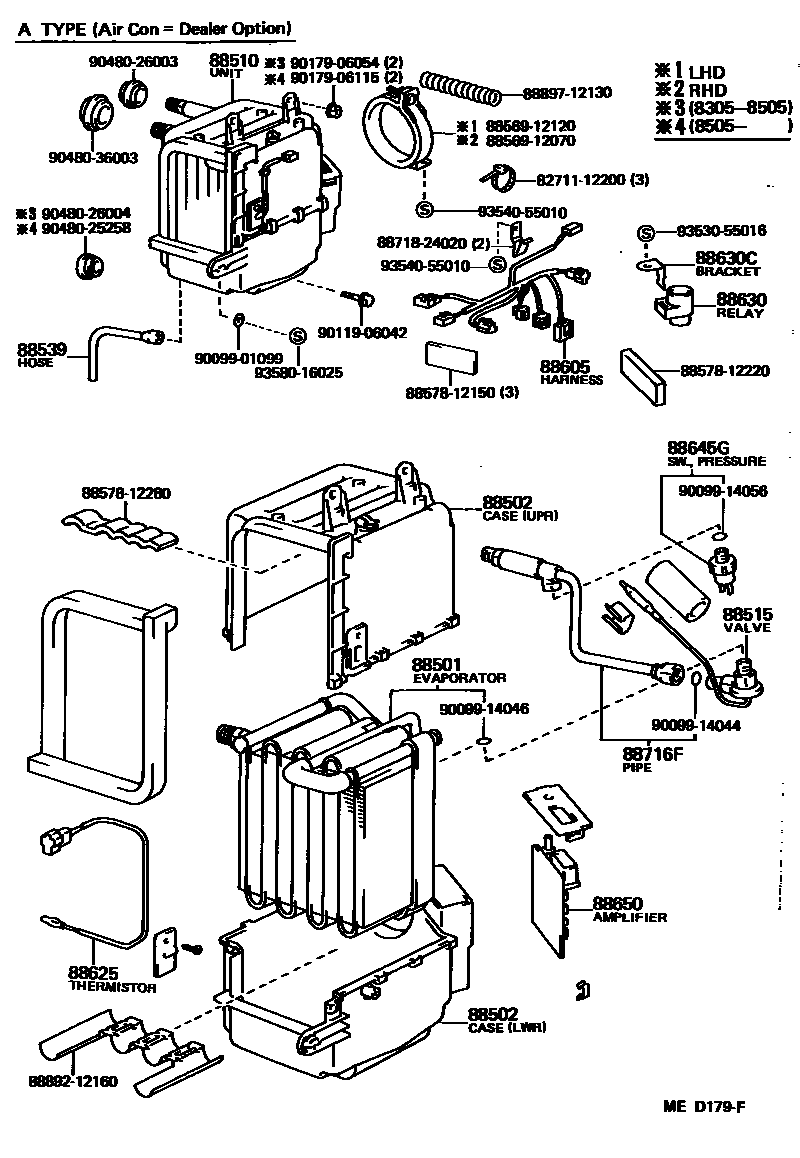

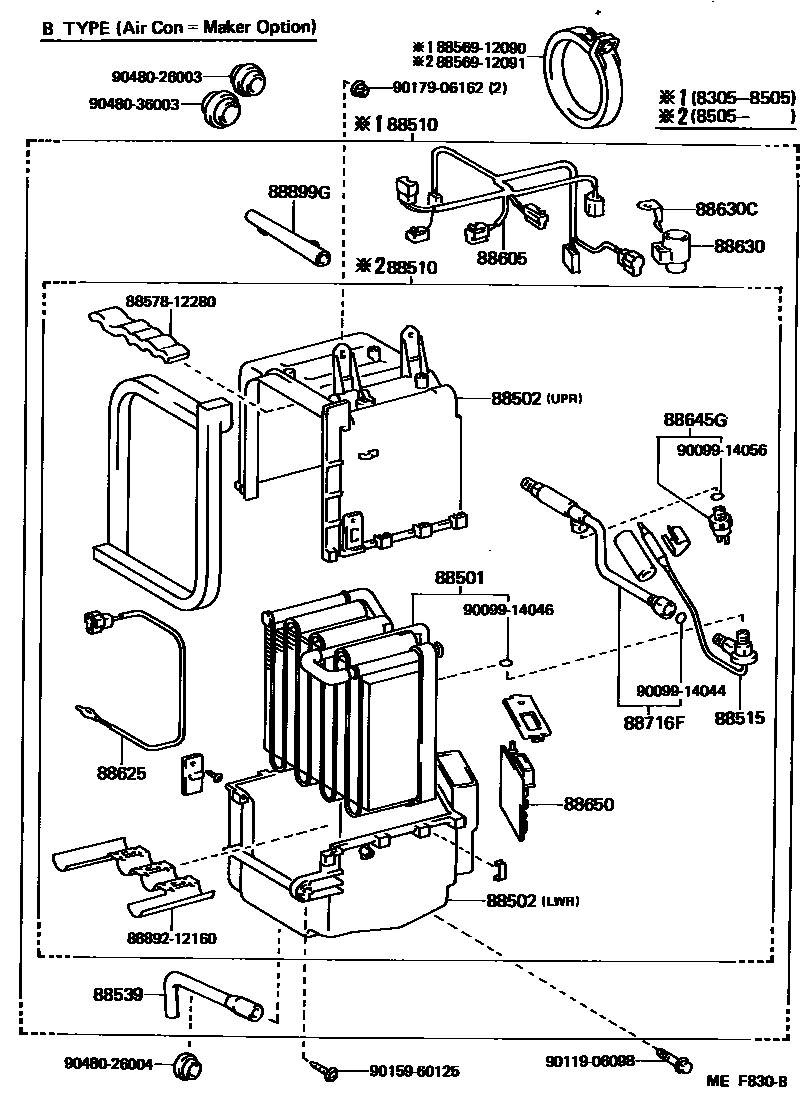

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12290 · 88501-12291 · 88501-12292 · 88501-12293 · 88501-12300 · 88501-12301 · 88501-12302 |
| 88502 | Cooling device shell sub-assembly | 88502-12080 · 88502-12090 |
| 88510 | Cooler device assembly | 88510-12400 · 88510-12410 · 88510-12411 · 88510-12430 · 88510-12431 · 88510-12432 · 88510-12510 · 88510-12511 · 88510-12520 · 88510-12521 · 88510-12522 · 88510-12530 · 88510-12531 · 88510-12660 · 88510-12680 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12070 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12400 · 88605-12410 · 88605-12440 · 88605-12460 · 88605-12660 · 88605-12661 · 88605-12770 · 88605-12771 · 88605-1A140 |
| 88625 | Cooler No. 1 Thermistor | 88625-12070 · 88625-95A00 |
| 88630 | Cooler relay assembly | 88630-14030 |
| 88630C | Cooler relay bracket | 88688-12380 |
| 88645G | pressure switch | 88645-12020 |
| 88650 | Cooler stabilized amplifier assembly | 88650-10030 · 88650-12210 · 88650-12440 · 88650-14140 · 88650-14150 · 88650-16020 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12470 · 88716-12490 · 88716-12880 · 88726-12070 |
| 88899G | protective device protective strip | 88899-12230 |
