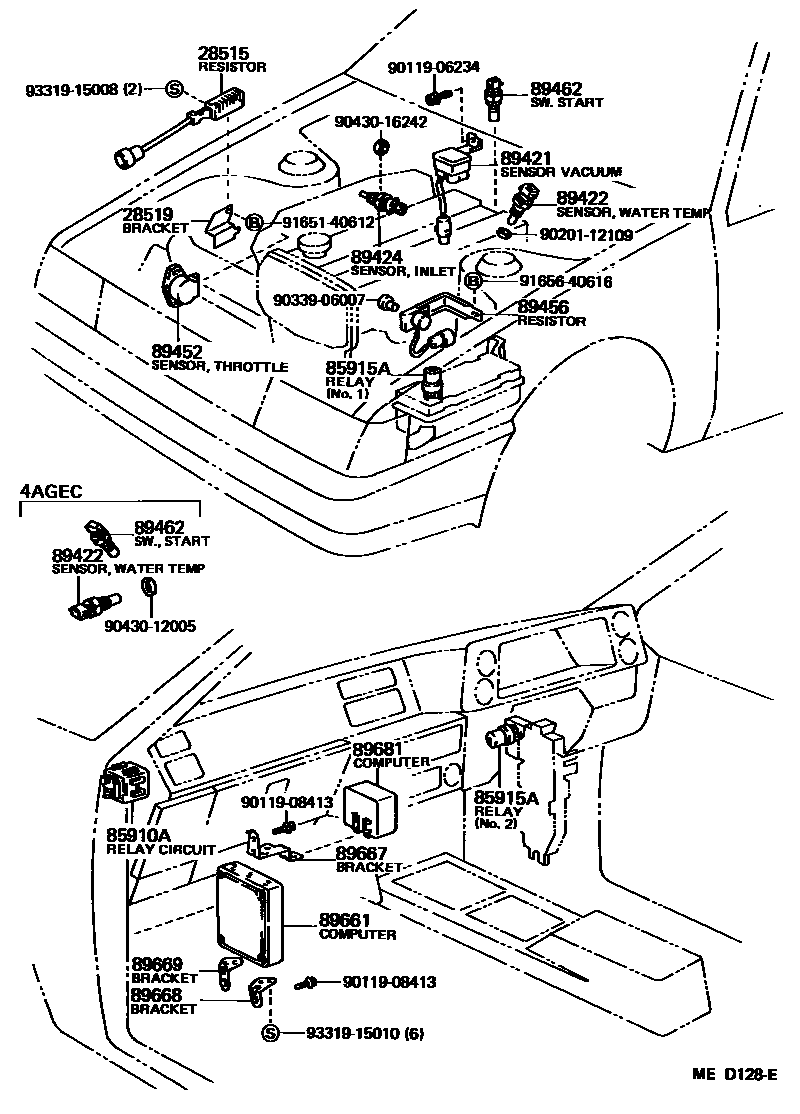

Toyota COROLLA 电子燃油喷射系统 — Figure 8404
Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-52010 |
| 28519 | Solenoid valve resistor bracket | 28519-15010 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85915A | main relay | 90987-01003 · 90987-02004 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-12020 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-28010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20070 · 89452-28010 |
| 89456 | variable resistor | 89456-12010 |
| 89462 | Start injector timing switch | 89462-30011 |
| 89661 | Engine control ECU | 89661-12020 · 89661-12021 · 89661-12060 · 89661-12090 · 89661-12091 · 89661-12100 · 89661-12130 · 89661-12140 · 89661-12160 |
| 89667 | Engine control ECU bracket | 89667-12030 · 89667-12040 · 89667-12050 · 89667-12060 · 89667-12070 |
| 89668 | No. 2 engine control ECU bracket | 89668-12010 · 89668-12020 |
| 89669 | No. 3 engine control ECU bracket | 89669-12010 · 89669-12020 |
| 89681 | Idle speed boost ECU assembly | 89681-12010 |
