Toyota COROLLA 前示宽灯 — Figure 8104

Toyota COROLLA EPC diagram 8104, 前示宽灯, with 2 images and 6 PNC and OE references.

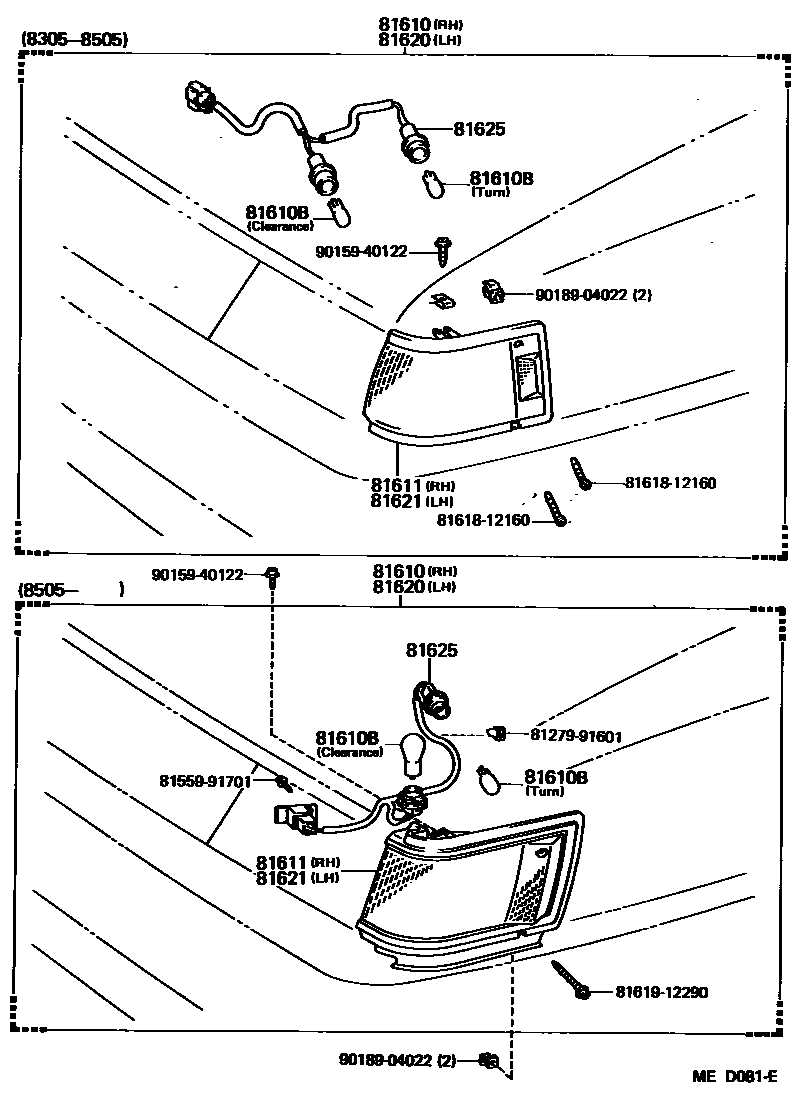

Toyota COROLLA 前示宽灯 EPC diagram — MED081E
前示宽灯 — MED081E (198305 – 999999)

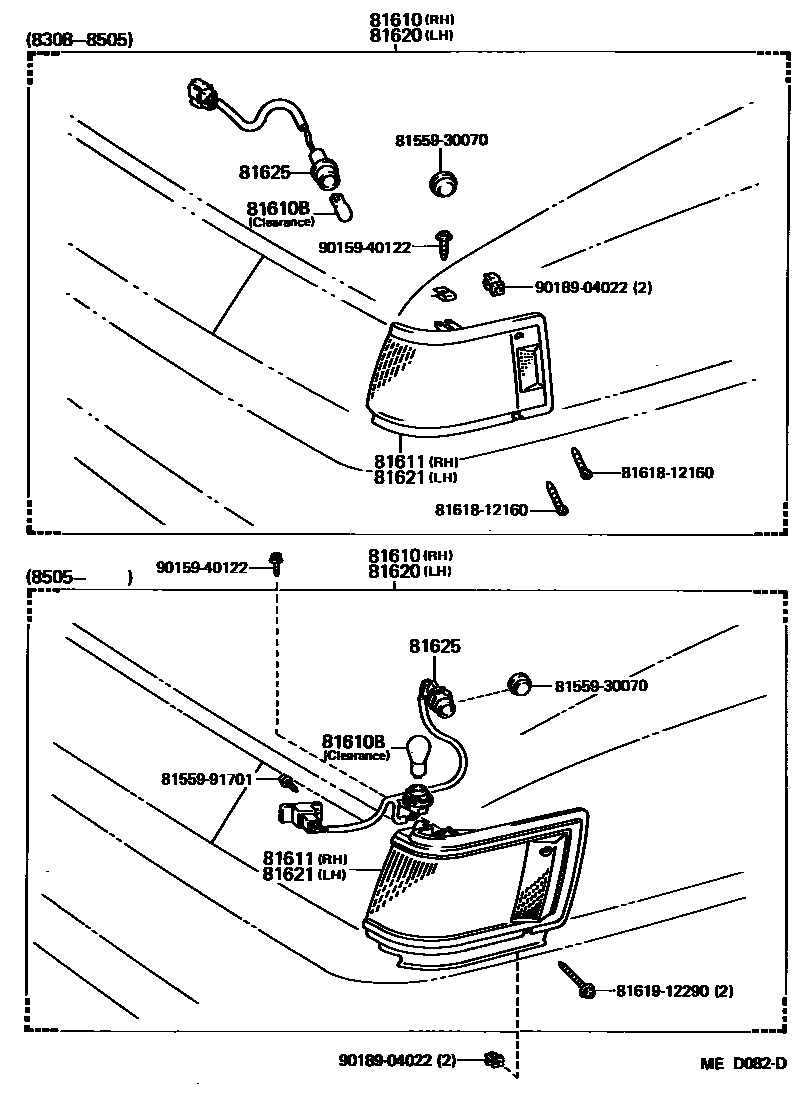

Toyota COROLLA 前示宽灯 EPC diagram — MED082D
前示宽灯 — MED082D (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
81610Right parking light and width indicator light assembly81610-12280 · 81610-12300 · 81610-19485 · 81610-19495
81610BBulbs (for parking lights and side lights)99132-11050 · 99132-12050
81611Right parking light and width indicator light cover81611-12160 · 81611-12170 · 81611-12280 · 81611-12300
81620Left parking light and width indicator light assembly81620-12280 · 81620-12300 · 81620-19485 · 81620-19495
81621Left parking light and width indicator light cover81621-12160 · 81621-12170 · 81621-12280 · 81621-12300
81625Parking light and width indicator lamp holder and wiring harness81615-12160 · 81615-12200 · 81615-12280 · 81615-12300
