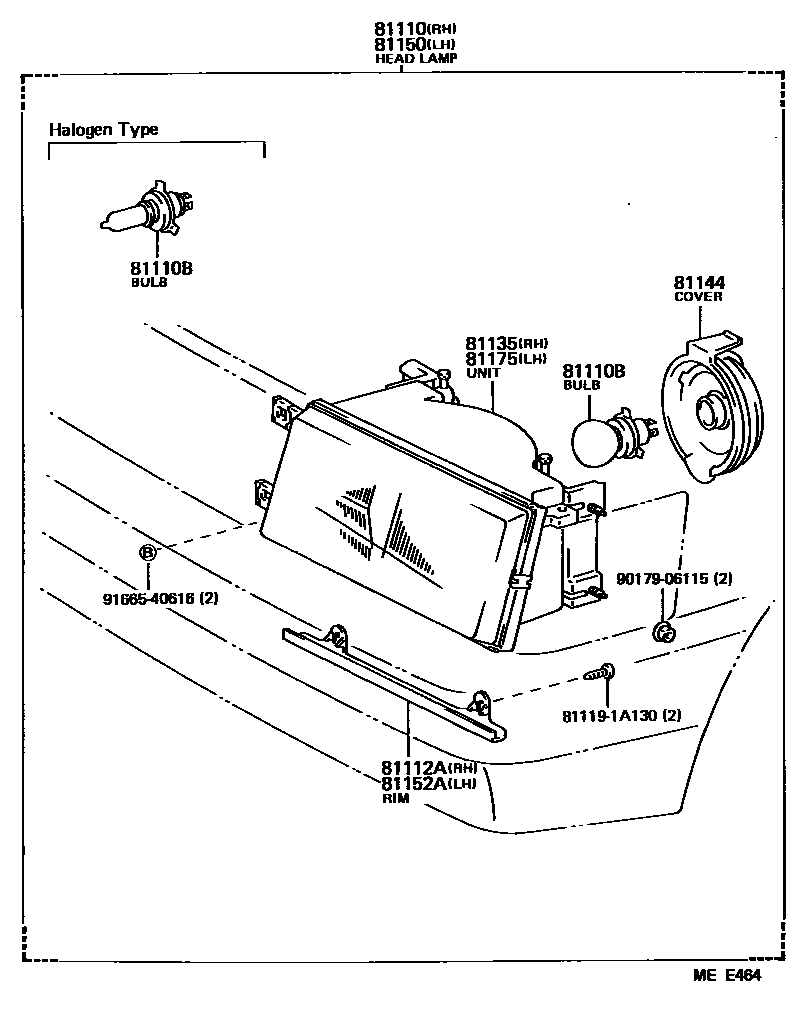

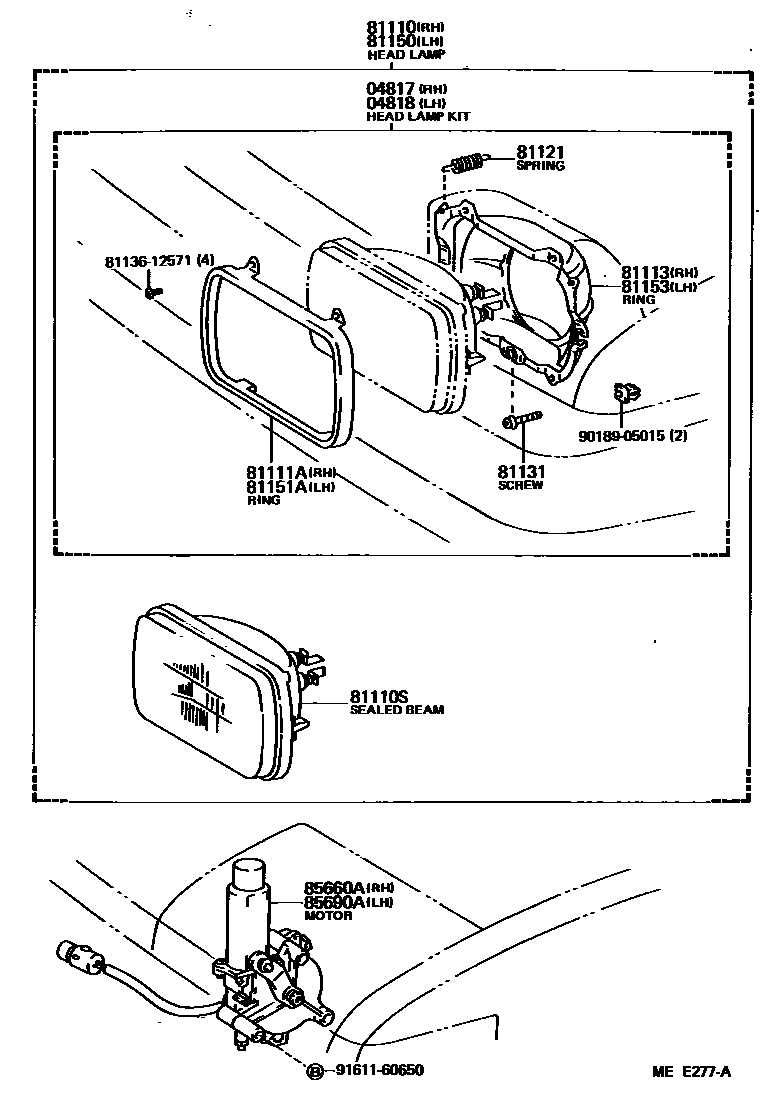

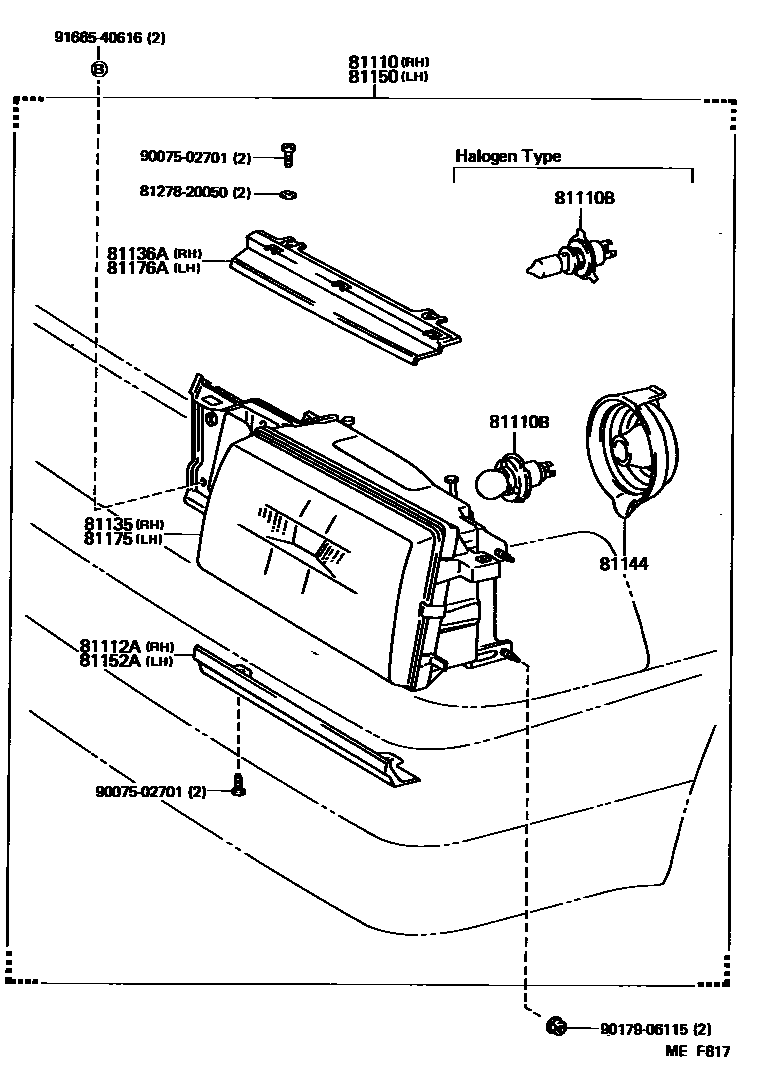

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04817 | Right headlight assembly (without closed headlight) | 04817-12070 |
| 04818 | Left headlight assembly (without closed headlight) | 04818-12070 |
| 81110 | Right headlight assembly | 81110-1A312 · 81110-1A322 · 81110-1A342 · 81110-1A352 · 81110-1A361 · 81110-80327 · 81110-80328 · 81110-80329 · 81110-80330 · 81110-80331 · 81110-80332 · 81110-80454 · 81110-80455 · 81110-80456 · 81110-80457 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04020 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-16020 |
| 81112A | Right headlight frame | 81112-1A130 · 81117-1A261 |
| 81113 | Right No. 1 closed lamp seat | 81153-14670 |
| 81121 | headlight spring | 81121-14670 |
| 81131 | Headlight adjustment screw | 81119-1A270 |
| 81135 | Right headlight assembly assembly | 81130-1A312 · 81130-1A322 · 81130-1A341 · 81130-1A342 · 81130-1A352 · 81135-1A310 · 81135-1A311 · 81135-1A320 · 81135-1A321 · 81135-1A340 · 81135-1A350 · 81135-1A351 |
| 81136A | Right headlight frame | 81116-1A261 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81150-1A242 · 81150-1A252 · 81150-1A272 · 81150-1A282 · 81150-1A291 · 81150-80324 · 81150-80325 · 81150-80326 · 81150-80327 · 81150-80328 · 81150-80329 · 81150-80444 · 81150-80445 · 81150-80446 · 81150-80447 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-16020 |
| 81152A | Left headlight frame | 81152-1A080 · 81157-1A021 |
| 81153 | No. 1 closed lamp seat on the left | 81113-14670 |
| 81175 | Left headlight assembly assembly | 81170-1A242 · 81170-1A252 · 81170-1A271 · 81170-1A272 · 81170-1A282 · 81175-1A240 · 81175-1A241 · 81175-1A250 · 81175-1A251 · 81175-1A270 · 81175-1A280 · 81175-1A281 |
| 81176A | Left headlight frame | 81156-1A021 |
| 85660A | Right side light telescopic motor assembly | 85660-12010 |
| 85690A | Left side car light telescopic motor assembly | 85690-12010 |
