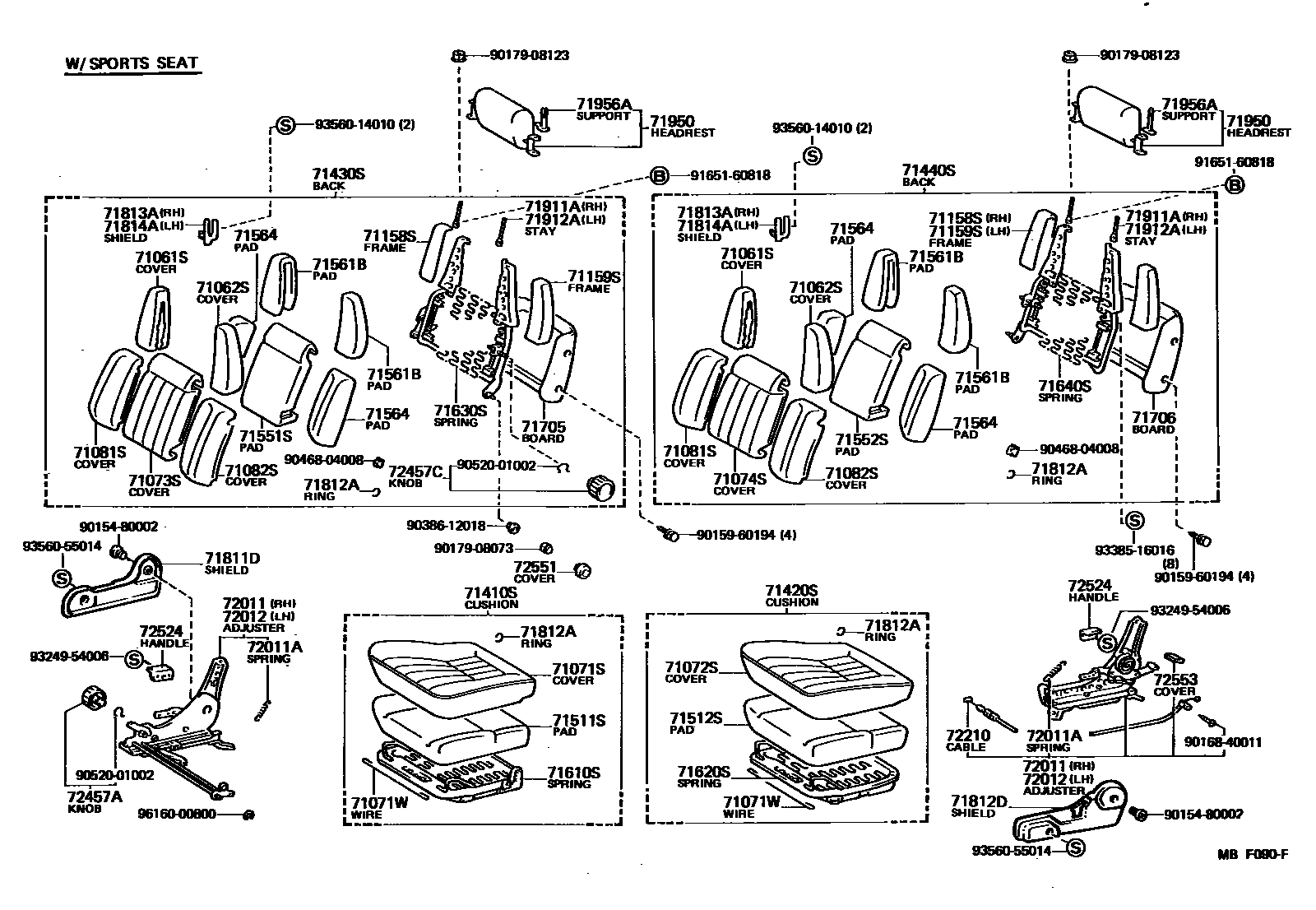

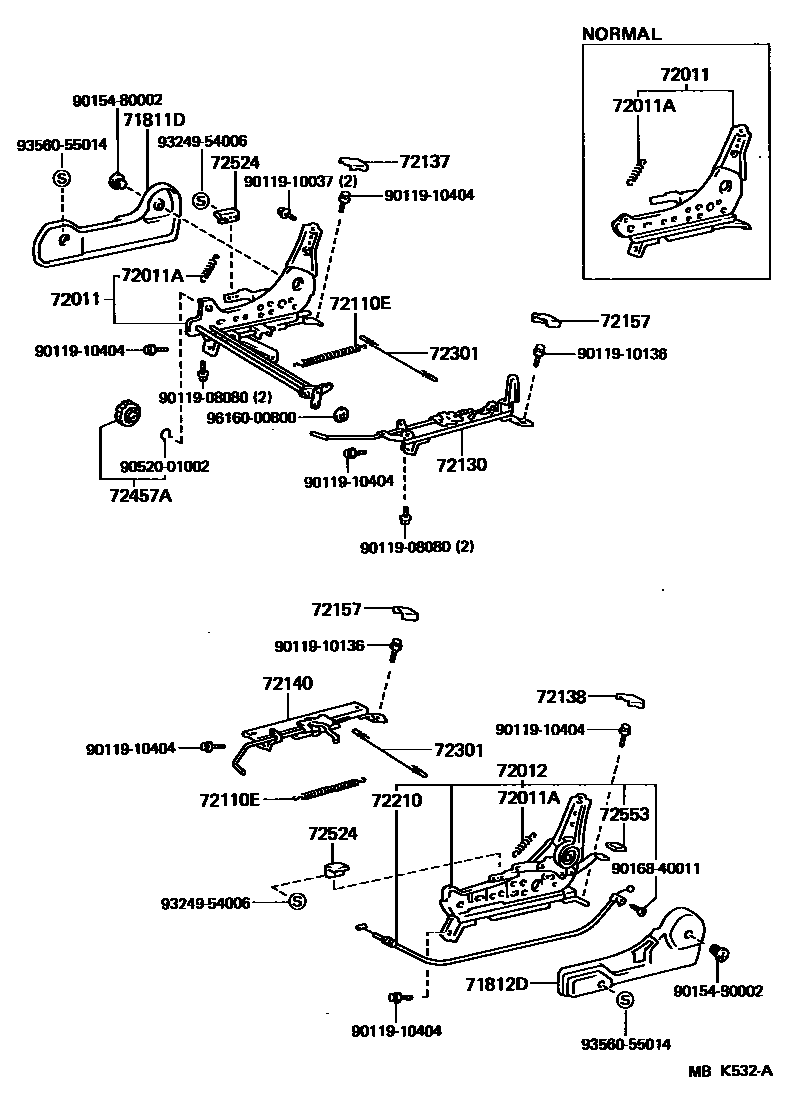

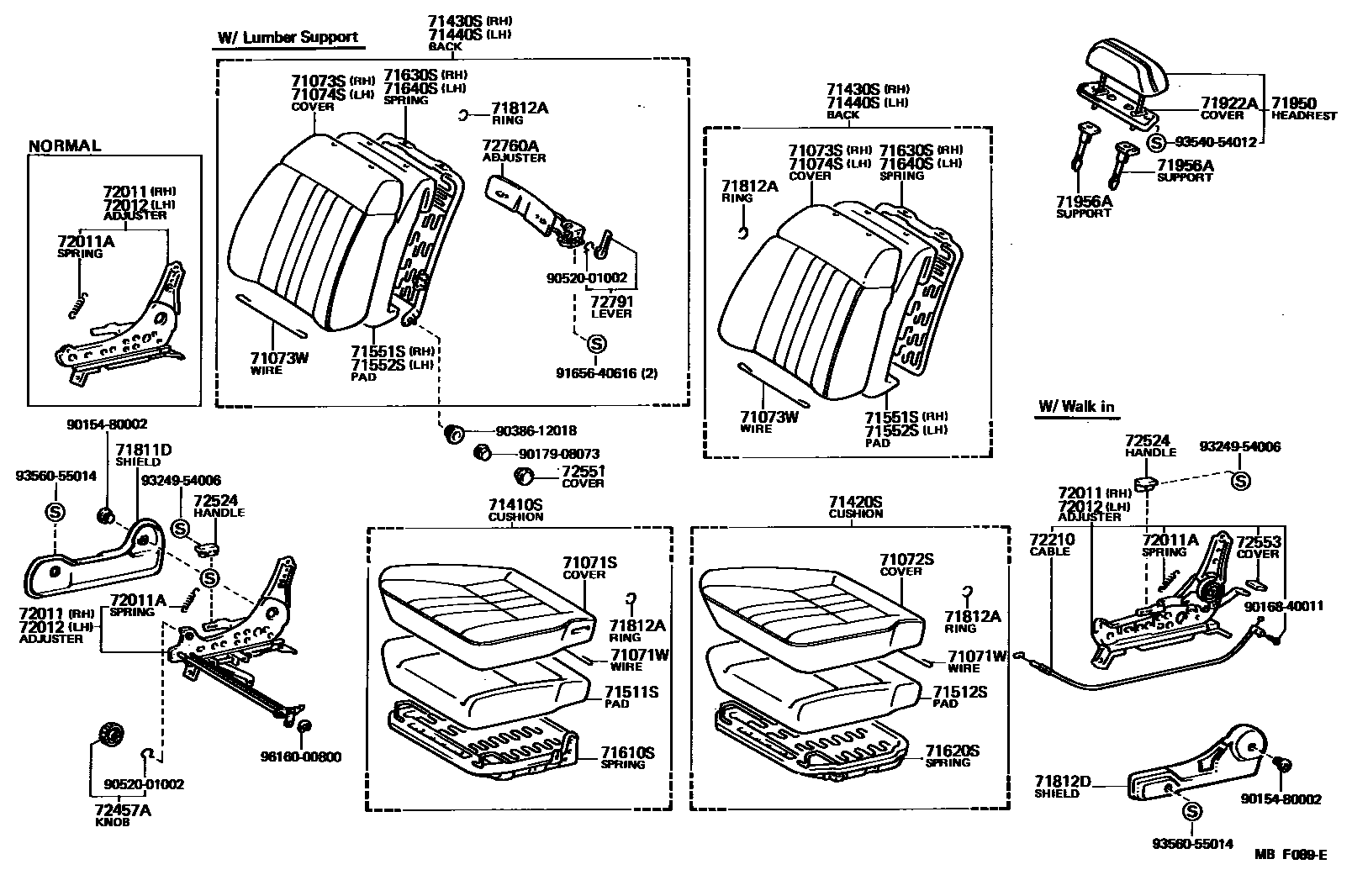

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071W | Front seat cushion protective wire | 90580-20019 · 90580-20103 |
| 71073W | Front seat back cover wire | 90580-20020 |
| 71158S | Front right seat back frame | 71158-12060 |
| 71159S | Front left seat back frame | 71159-12040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12440 · 71511-12460 · 71511-12540 · 71511-14140 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12440 · 71511-12460 · 71511-12540 · 71511-14140 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12390 · 71551-12400 · 71551-12410 · 71551-12420 · 71551-12510 · 71551-12530 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12390 · 71551-12400 · 71551-12410 · 71551-12420 · 71551-12510 · 71551-12530 |
| 71561B | Padded front seat backrest | 71561-12180 · 71562-12040 |
| 71564 | Front seat backrest side cushions | 71563-12050 · 71564-12010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12160 · 71610-12161 · 71610-12170 · 71610-12180 · 71610-12190 · 71610-12191 · 71610-12201 · 71610-12260 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12140 · 71620-12141 · 71620-12150 · 71620-12151 · 71620-12160 · 71620-12170 · 71620-12181 · 71620-12200 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12260 · 71630-12280 · 71630-12290 · 71630-12330 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12220 · 71640-12230 · 71640-12240 · 71640-12250 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 71911A | Front right seat headrest stay | 71911-14050 |
| 71912A | Front left seat headrest stay | 71912-14040 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12020 · 72010-12240 · 72010-12280 · 72010-12290 · 72010-12350 · 72010-12360 · 72010-12370 · 72010-12380 · 72010-12390 · 72010-12440 · 72010-12500 · 72010-12510 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-18015 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-12230 · 72020-12290 · 72020-12300 · 72020-12320 · 72020-12370 · 72020-12380 · 72020-12390 · 72020-12400 · 72020-12440 · 72020-12500 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90506-18020 |
| 72130 | Right seat inner slide rail assembly | 72130-12130 · 72130-12330 · 72130-12340 · 72130-12380 · 72130-12390 · 72130-12400 · 72130-12410 · 72130-12420 · 72130-12450 |
| 72140 | Left seat inner slide rail assembly | 72140-12120 · 72140-12300 · 72140-12360 · 72140-12370 · 72140-12380 · 72140-12390 |
| 72210 | Seat slide rail control cable assembly | 72210-14090 · 72210-14100 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12050 |
| 72551 | Seat No. 1 backrest tilt hinge cover | 72551-12070 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 72760A | Lumbar support adjuster assembly | 72750-12030 · 72760-12030 |
