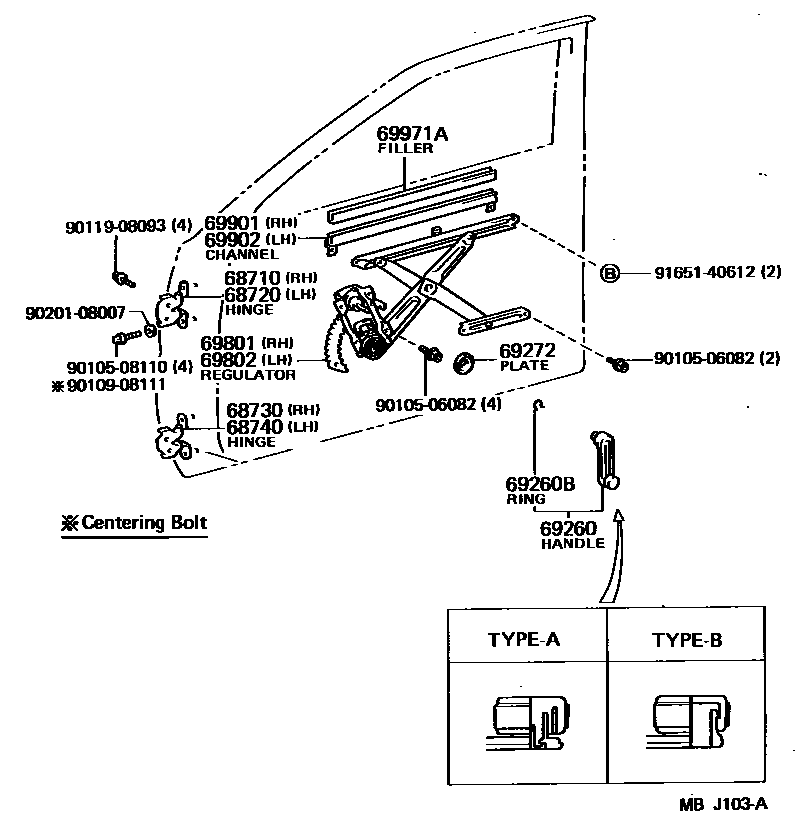

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-32010 |
| 68720 | Left front door upper hinge assembly | 68720-32010 |
| 68730 | Right front door lower hinge assembly | 68730-32010 |
| 68740 | Left front door lower hinge assembly | 68740-32010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69272 | Front door window lift inner handle plate | 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69810-12170 |
| 69802 | Left front door window lifter sub-assembly | 69820-12160 |
| 69901 | Right front door glass groove sub-assembly | 69901-12120 |
| 69902 | Left front door glass groove sub-assembly | 69901-12120 |
| 69971A | Front door glass channel filler | 69971-22010 |
