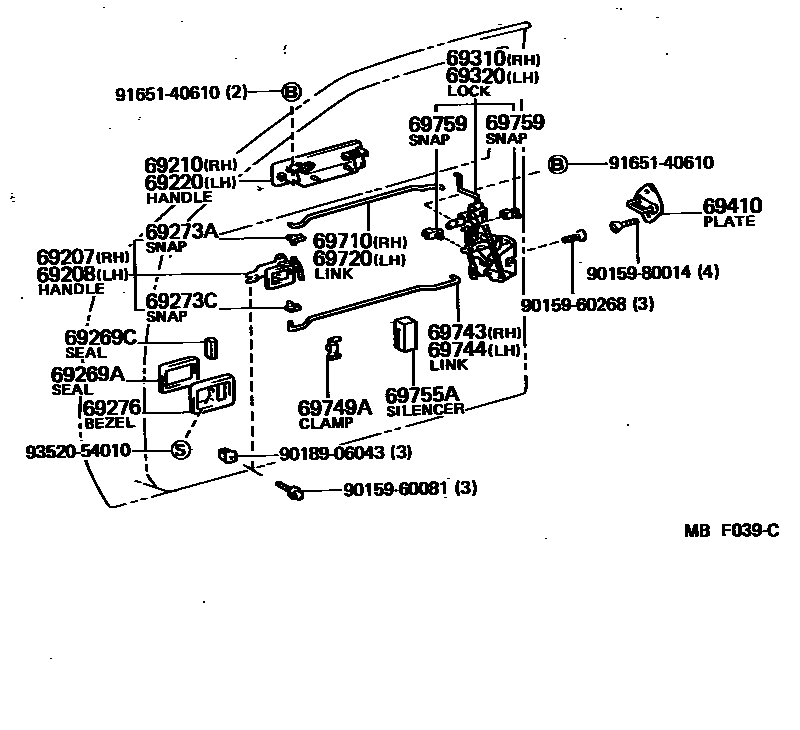

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-12080 |
| 69220 | Left front door outer handle assembly | 69220-12080 |
| 69269A | Door No. 1 inner handle seal (for front door) | 69269-14010 |
| 69269C | Door No. 2 inner handle seal (for front door) | 69289-12010 |
| 69273A | Inner door handle lever buckle (for front door) | 69759-20020 · 69759-20030 |
| 69273C | Car door inner handle link buckle | 69759-20060 · 69759-20070 |
| 69310 | Right front door lock assembly | 69310-12170 · 69310-12190 |
| 69320 | Left front door lock assembly | 69320-12190 · 69320-12210 |
| 69410 | Front door lock plate assembly | 69410-12050 |
| 69710 | Right front door opening control linkage assembly | 69711-12080 |
| 69720 | Left front door opening control linkage assembly | 69712-12090 |
| 69743 | Right front door lock control link No. 1 | 69733-12050 |
| 69744 | Left front door No. 1 locking control link | 69734-12050 |
| 69749A | Front door lock No. 1 link clamp | 69749-12040 |
| 69755A | Front door lock link silencer | 69759-14010 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20080 · 69759-20090 |
