Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

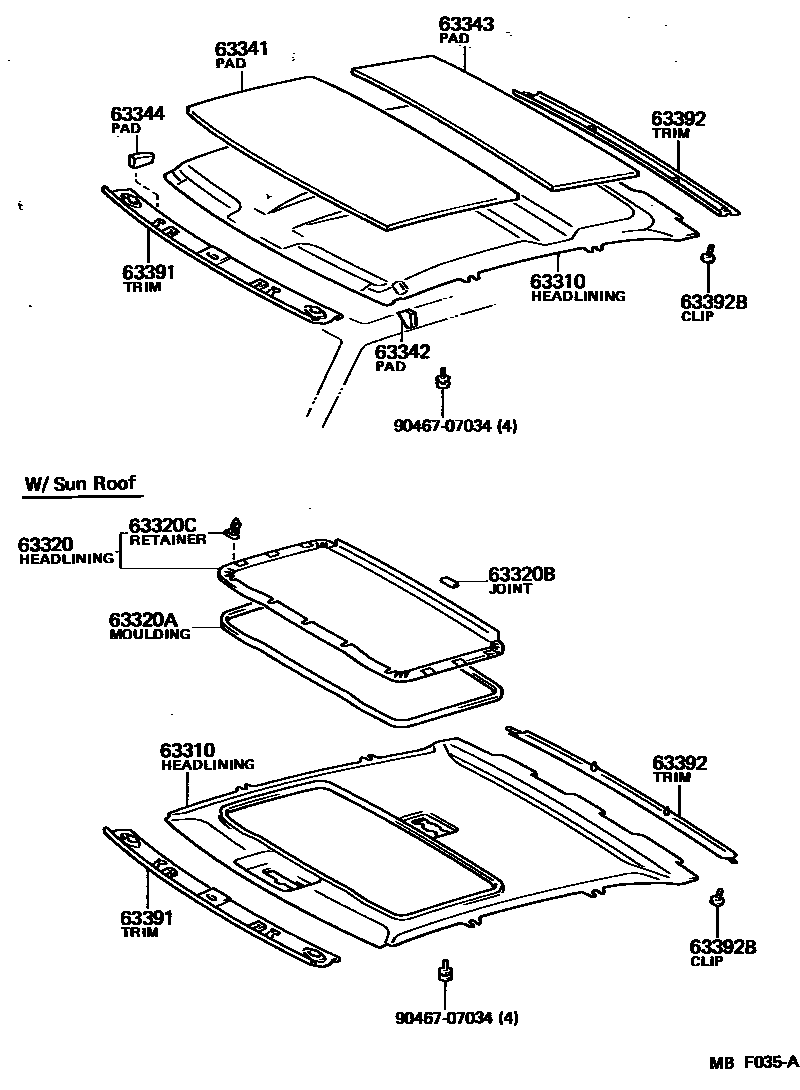

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310 | Headlining assembly | 63310-12600 · 63310-12620 · 63311-12500 · 63311-12540 |
| 63320 | Sunroof or removable headliner assembly | 63320-12030 · 63320-12040 |
| 63320B | Skylight opening decorative strip joint | 63319-14011 |
| 63320C | Decorative panel fixings (for skylights) | 63317-20030 |
| 63341 | No. 1 roof silencer mat | 63341-12090 |
| 63342 | No. 2 roof muffler pad | 63342-12050 · 63344-12010 |
| 63343 | No. 3 roof muffler pad | 63343-12050 |
| 63344 | No. 4 roof silencer mat | 63344-12010 |
