Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 8 PNC and OE references.

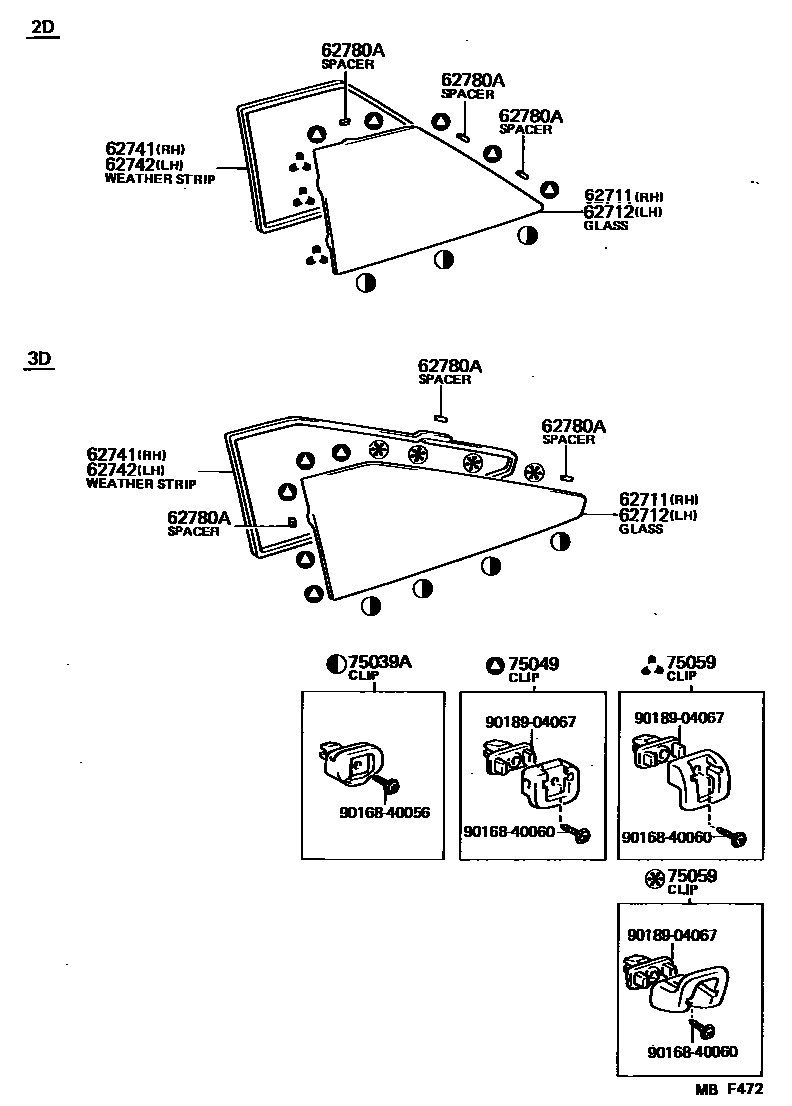

Toyota COROLLA 角窗 EPC diagram — MBF472
角窗 — MBF472 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62711-12320 · 62711-12340
62712Left corner window glass62712-12320 · 62712-12340
62741Right corner window sealing strip62741-12120 · 62741-12130
62742Left corner window sealing strip62741-12120 · 62741-12130
62780ASpacers (for corner window protection strips)62785-12010
75039ACorner window No. 1 clip sub-assembly75039-12020
75049Corner window No. 2 clip sub-assembly75049-12030
75059Corner window No. 3 clip sub-assembly75059-12030 · 75059-12040
