Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513

Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 2 images and 14 PNC and OE references.

Toyota COROLLA 节气阀连杆和阀杆(ATM) EPC diagram — MC9621

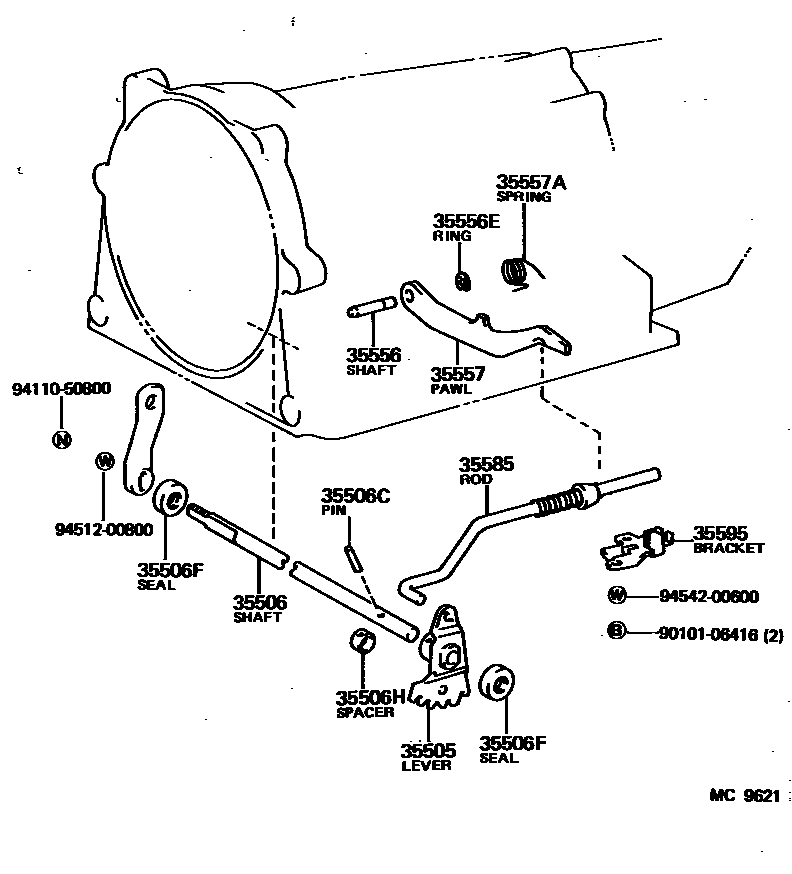

节气阀连杆和阀杆(ATM) — MC9621 (198305 – 999999)
Toyota COROLLA 节气阀连杆和阀杆(ATM) EPC diagram — MC9860A
节气阀连杆和阀杆(ATM) — MC9860A (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
35505Manual valve stem sub-assembly35505-22020 · 35505-22030 · 35505-22040
35506Manual valve stem shaft sub-assembly35561-40010
35506CSlotted spring pin (for manual valve stem shaft)90254-04011
35506FOil seal (for manual valve stem shaft)90311-11001 · 90311-11128
35506HSpacer (for manual valve stem shaft)90560-20003
35520Throttle valve cable assembly35520-12090
35520AThrottle valve cable pin90240-05139
35520BO-ring (for throttle valve cable)90301-09004
35556Parking lock pawl shaft35556-22010 · 35556-26010
35556EE-ring (for parking lock pawl shaft)90523-08021
35557Parking pawl35557-35010
35557ATorsion spring (for parking pawl)90508-25001
35585Parking lock lever35501-22020
35595Parking lock pawl bracket35595-16010 · 35595-40010
