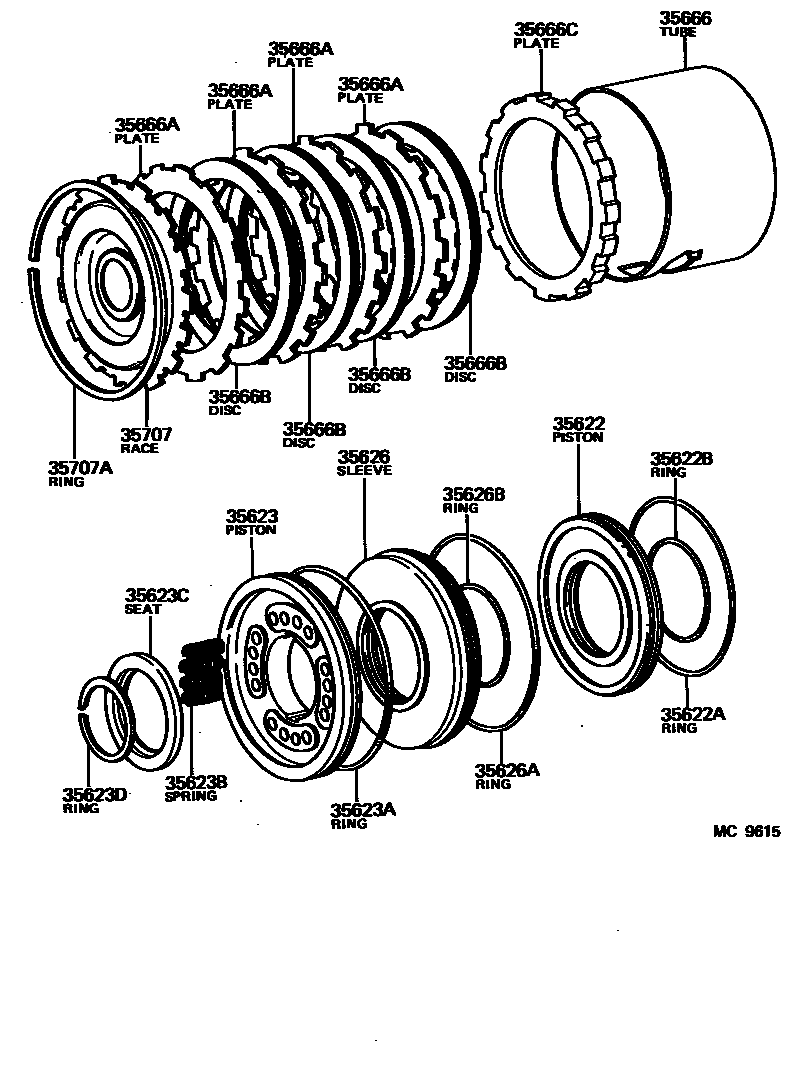

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota COROLLA EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35622 | Brake piston No. 2 | 35622-22010 |
| 35622A | Outer ring (for brake piston) | 90301-99193 |
| 35622B | Inner ring (for brake piston) | 90301-57188 |
| 35623 | No. 3 brake piston | 35623-22010 |
| 35623A | O-ring (for brake piston No. 3) | 90301-99192 |
| 35623B | Spring (for brake piston return) | 90501-10671 |
| 35623C | Brake return spring seat | 35627-22010 |
| 35623D | Shaft snap ring (for brake) | 90520-52262 |
| 35626 | Brake reaction sleeve | 35626-22010 |
| 35626A | Outer ring (for brake reaction sleeve) | 90301-99200 |
| 35626B | Inner ring (for brake reaction sleeve) | 90301-68191 |
| 35666 | Brake oil supply pipe | 35666-26010 |
| 35666A | Clutch disc (for brakes) | 35634-22080 · 35637-22010 |
| 35666B | Clutch disc (for brakes) | 35633-30030 |
| 35666C | Clutch pressure plate (for brake) | 35639-22010 |
| 35707 | One-way clutch inner race sub-assembly | 35707-30010 · 35707-30020 |
| 35707A | Hole snap ring (for one-way clutch inner race) | 90521-99140 |
