Toyota COROLLA 废气再循环系统 — Figure 2501

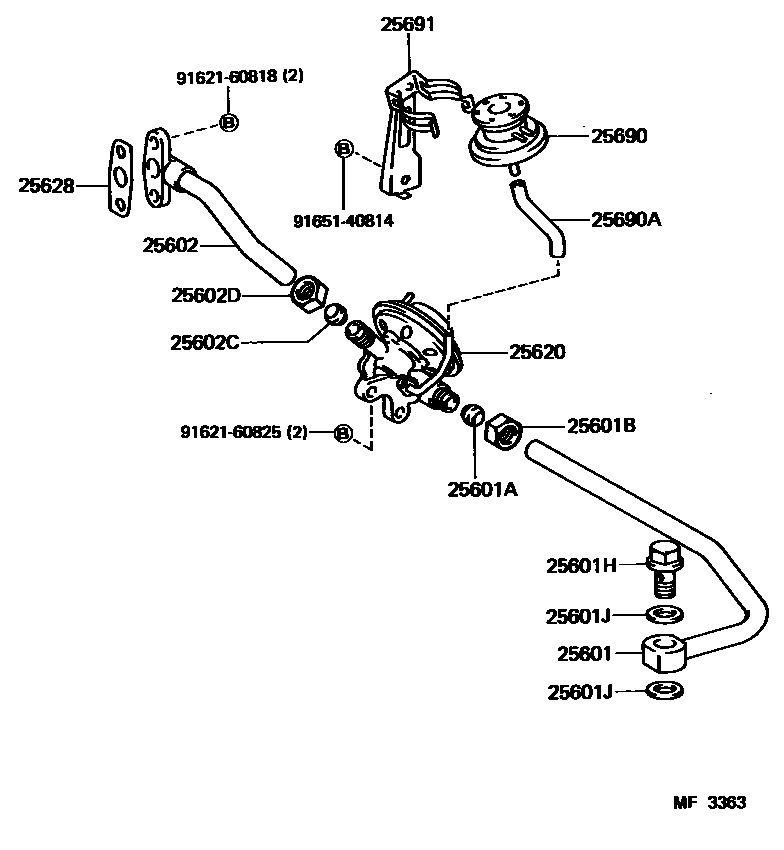

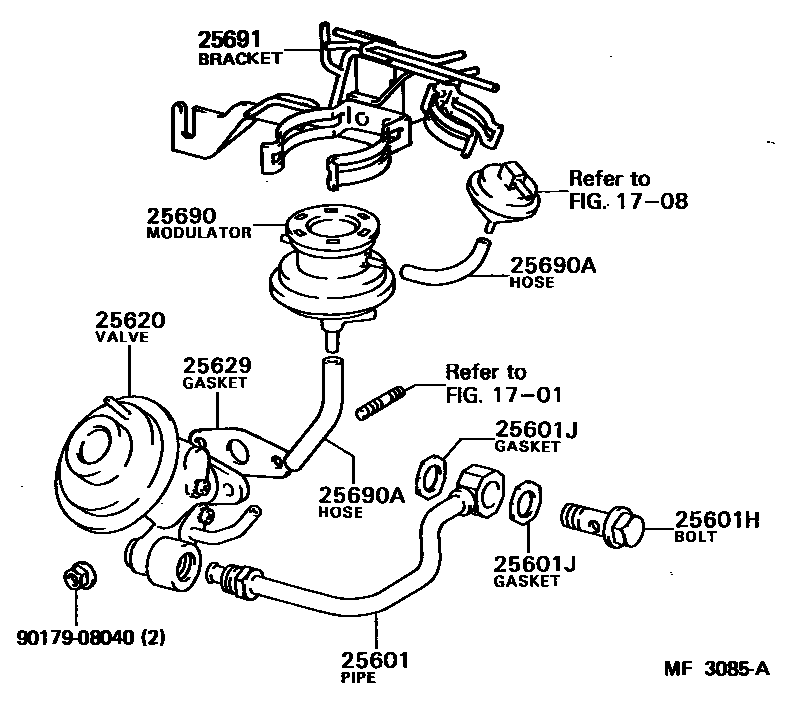

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-15020 · 25601-16010 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-14003 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20007 |
| 25601H | Joint bolt (for No. 1 EGR tube) | 90401-18013 · 90401-20003 |
| 25601J | Gasket (for No. 1 EGR tube) | 90430-18009 · 90430-20005 |
| 25602 | No. 2 EGR pipe assembly | 25602-16010 |
| 25602C | Ball sleeve (for No. 2 EGR tube) | 90410-14003 |
| 25602D | Connecting nut (for No. 2 EGR tube) | 90402-20007 |
| 25620 | EGR valve assembly | 25620-15200 · 25620-16010 · 25620-16030 |
| 25628 | EGR air intake gasket | 25628-16010 |
| 25629 | EGR valve adapter gasket | 25629-15011 |
| 25690 | EGR vacuum regulator assembly | 25870-15140 · 25870-16010 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-16010 · 90445-11041 |
| 25691 | EGR vacuum regulator bracket | 25691-15140 · 25691-16080 |
