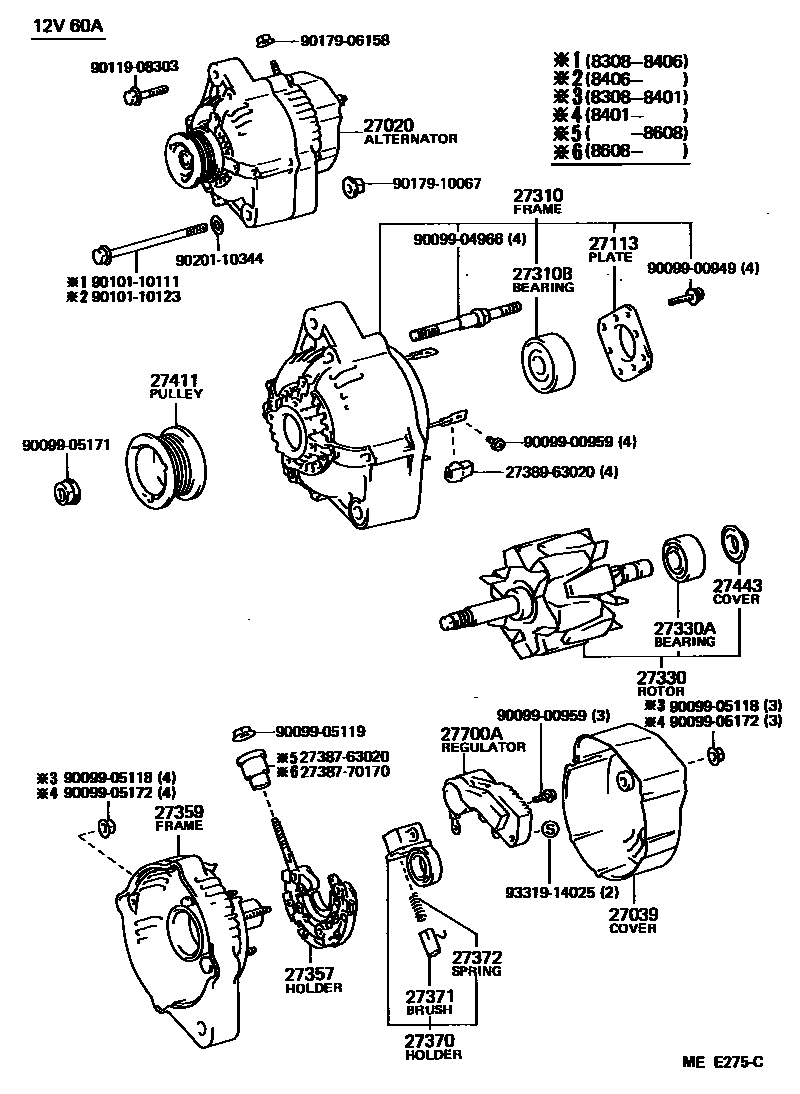

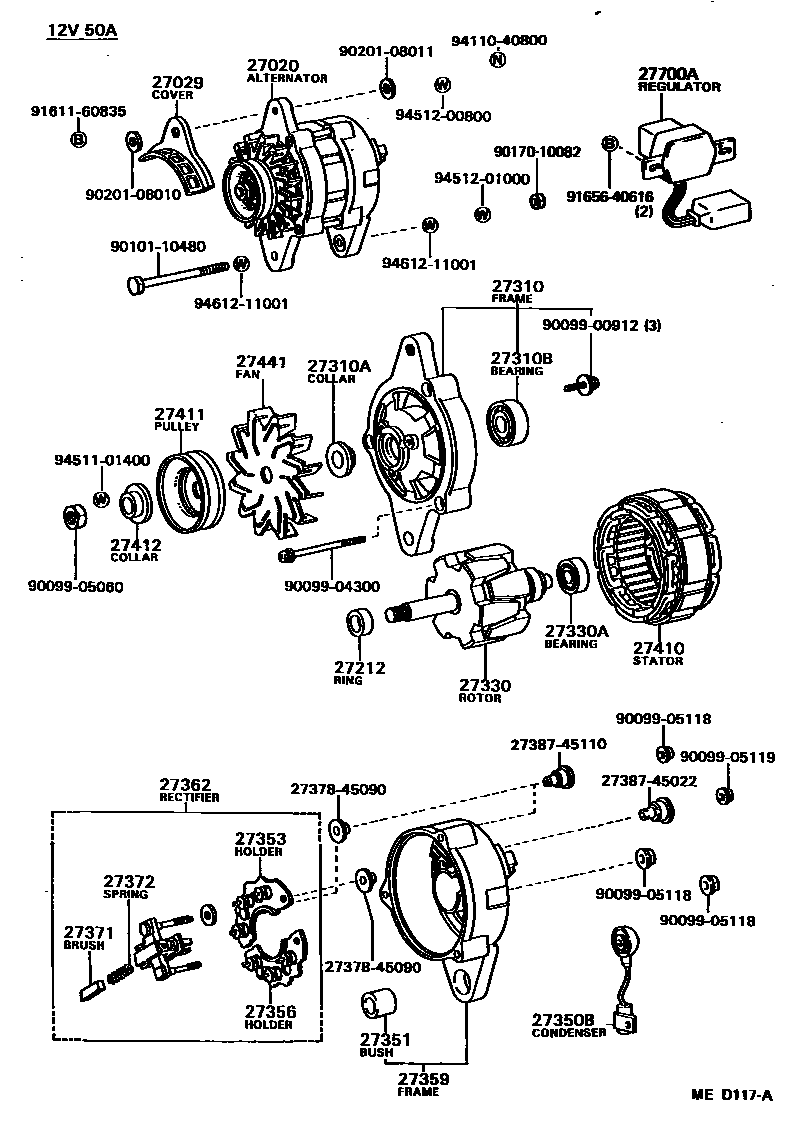

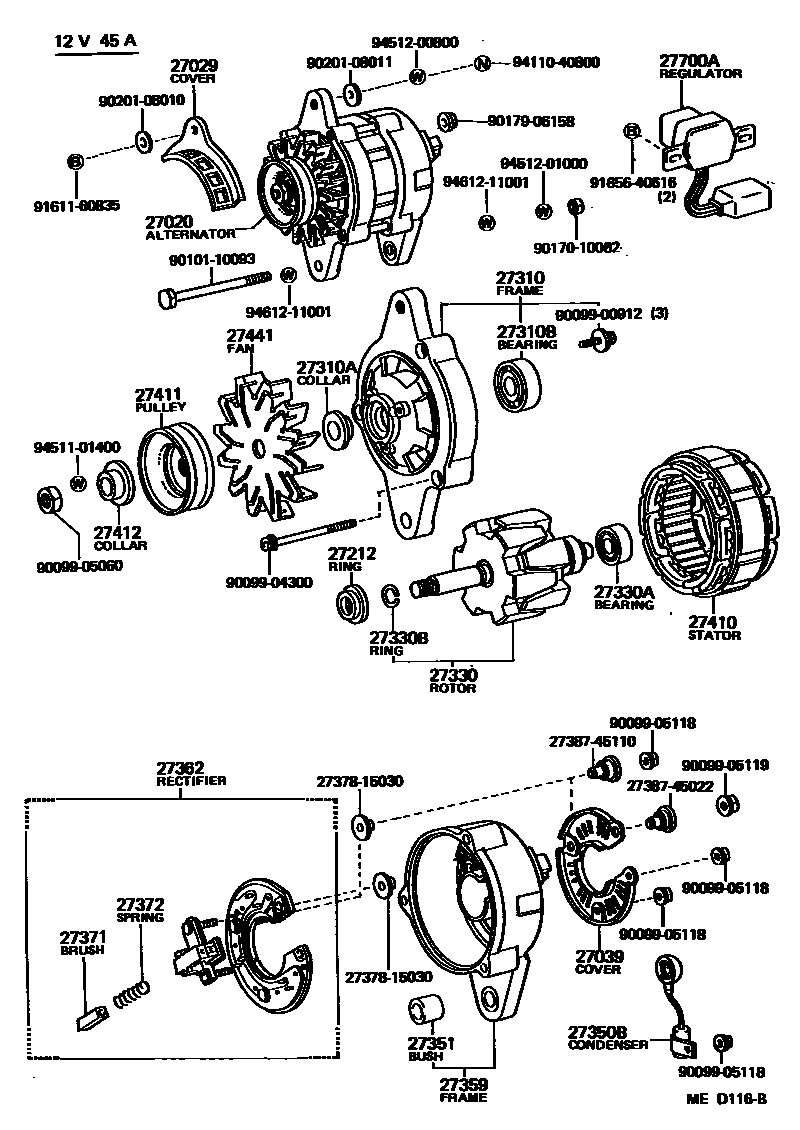

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-15022 · 27020-15100 · 27060-16010 · 27060-16050 · 27060-16090 · 27060-16091 |
| 27029 | generator cover | 27029-15012 |
| 27039 | Alternator Rear End Cover | 27039-18011 · 27039-63021 · 27039-63040 · 27039-72110 |
| 27113 | Generator bearing block | 27312-63020 · 27312-72100 |
| 27212 | Spacer ring (for generator rotor) | 27212-39050 · 27412-15150 · 27412-45070 |
| 27310 | Alternator Drive End Frame Assembly | 27310-15030 · 27310-16010 · 27310-16080 · 27310-16081 · 27310-61023 |
| 27310A | Collar or nut (for generator drive end cover) | 27412-31040 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10126 · 90099-10141 · 90099-10152 · 90099-10159 |
| 27330 | Alternator Rotor Assembly | 27330-10020 · 27330-16030 · 27330-45020 · 27330-45070 · 27330-63021 · 27330-63041 |
| 27330A | Bearings (for generator rotor) | 90099-10111 · 90099-10140 |
| 27330B | Snap ring (for generator rotor) | 90099-07048 |
| 27350B | generator capacitor | 90099-52065 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 |
| 27353 | Generator positive rectifier frame | 27353-34051 |
| 27356 | Generator negative rectifier frame | 27356-34051 |
| 27357 | Generator rectifier frame | 27357-63020 · 27357-63040 |
| 27359 | Generator rectifier end frame | 27359-15021 · 27359-15030 · 27359-16010 · 27359-16081 |
| 27362 | Rectifier assembly with brushes | 27362-15021 · 27362-18011 |
| 27370 | Alternator Brush Holder Assembly | 27370-16010 · 27370-16011 |
| 27371 | Generator brushes | 27371-31011 · 27371-63020 |
| 27372 | Generator brush spring | 27372-31011 · 27372-63020 · 27372-72100 |
| 27410 | Generator stator assembly | 27410-38120 · 27410-41080 |
| 27411 | Alternator Pulley | 27411-16010 · 27411-16011 · 27411-26111 · 27411-63081 |
| 27412 | Isolator collar (for generator pulley) | 27412-44030 |
| 27441 | generator fan | 27441-34030 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-15030 · 27700-63021 |
