Toyota COROLLA Air Cleaner — Figure 1703

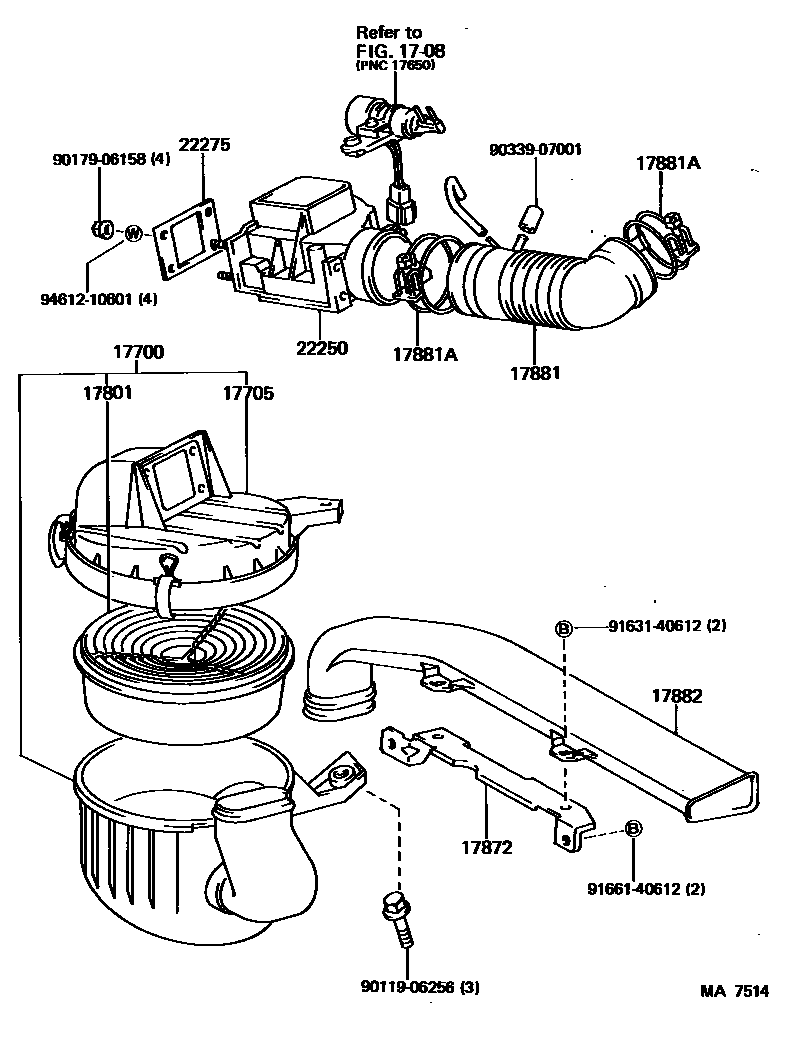

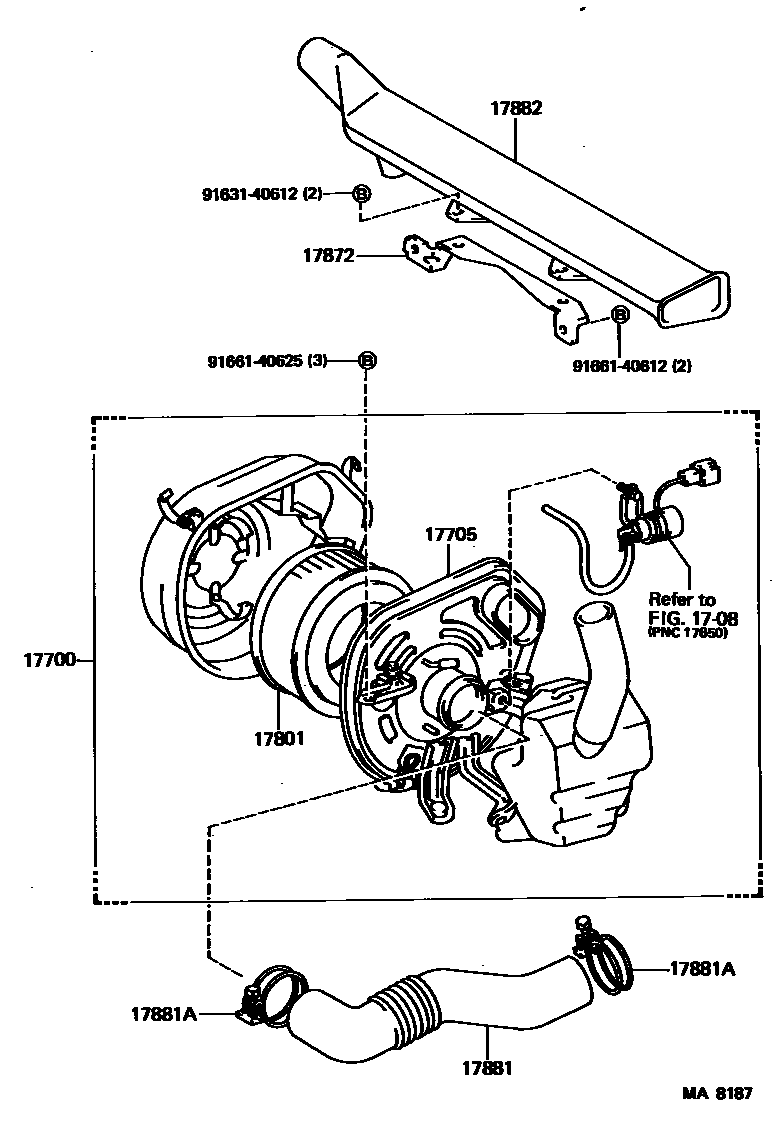

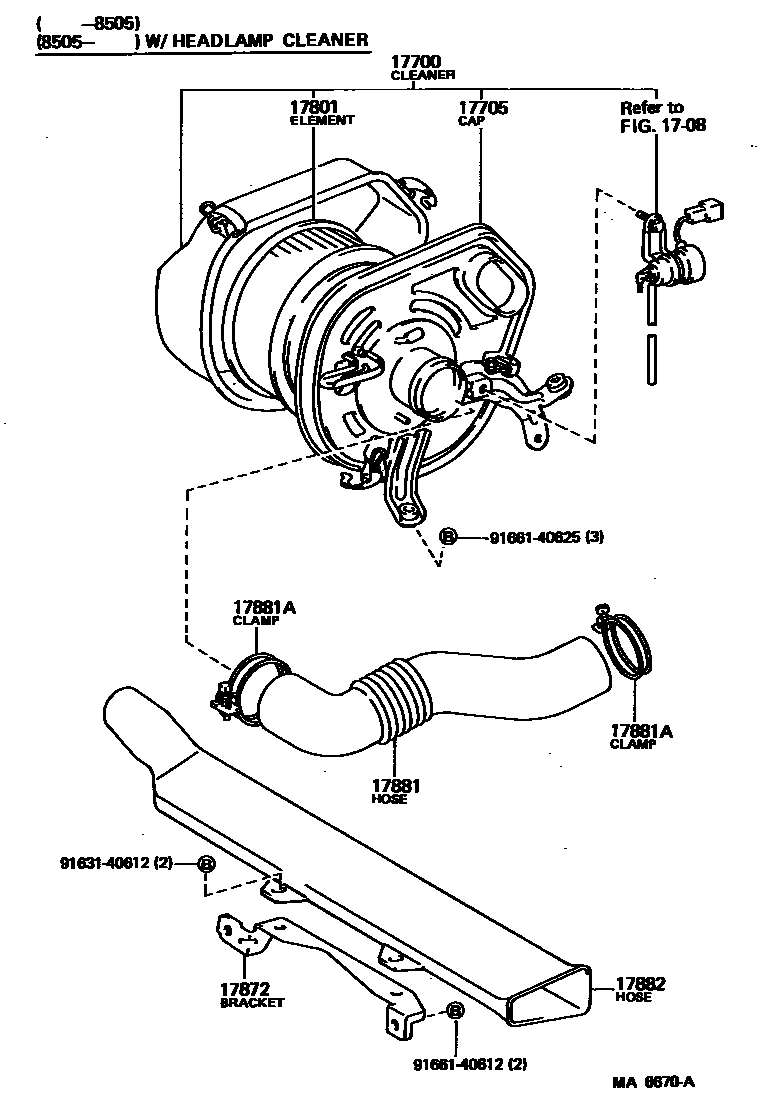

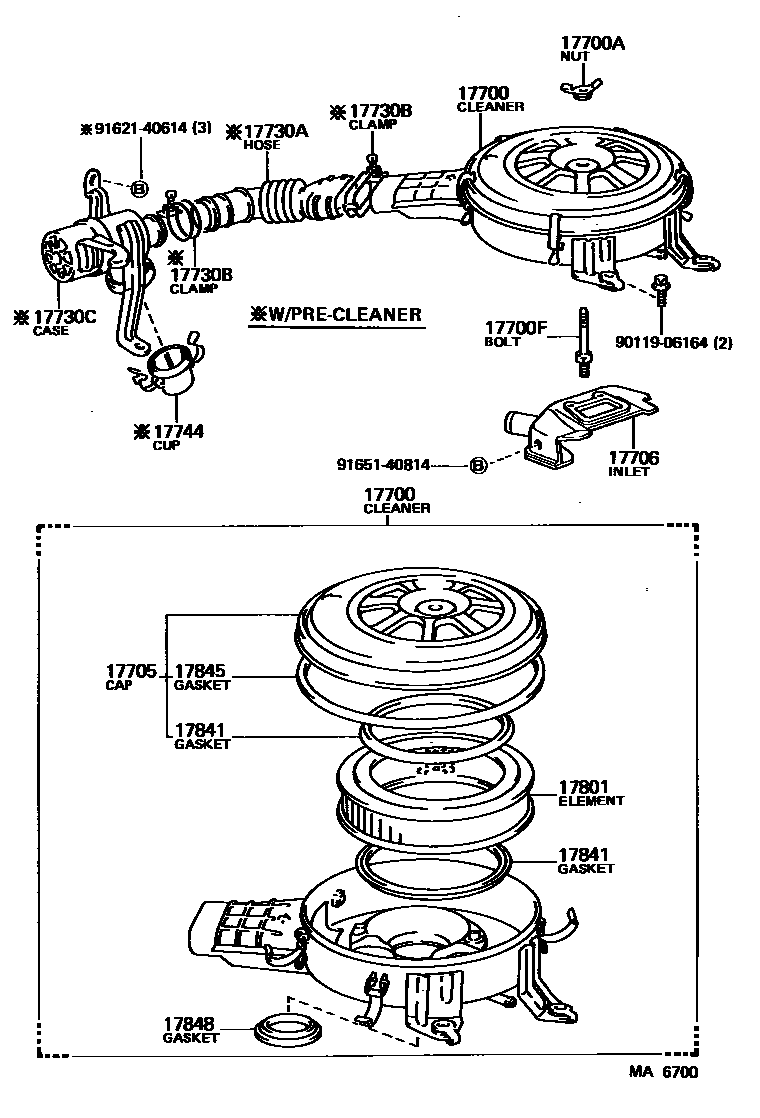

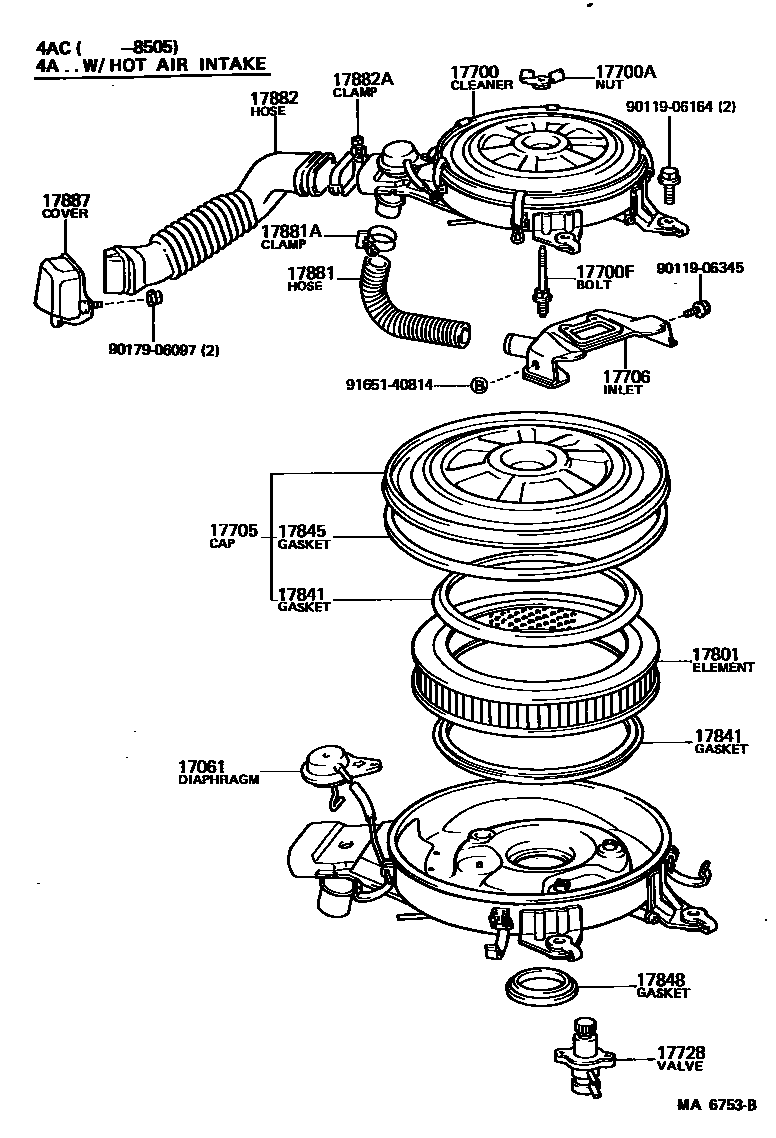

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-15030 · 17061-15040 |
| 17700 | air filter assembly | 17700-16090 · 17700-16100 · 17700-16110 · 17700-16120 · 17700-16250 · 17700-16270 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 |
| 17700F | Stud bolt (for securing air filter) | 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-15060 · 17705-16020 · 17705-16030 · 17705-16090 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17902-15050 · 17902-16030 |
| 17728 | thermostat valve | 17728-15020 · 17728-24010 |
| 17730A | Coarse filter hose | 17881-16040 |
| 17730B | Hose clamp (for primary filter hose) | 90460-01005 · 96111-10600 |
| 17730C | Coarse filter housing | 17736-16010 |
| 17744 | Coarse filter cup | 17744-16010 |
| 17801 | Air filter element sub-assembly | 17801-15010 · 17801-16010 · 17801-45020 |
| 17841 | filter liner | 17841-15010 |
| 17845 | air cleaner cover gasket | 17845-61011 |
| 17848 | Gasket from air cleaner to carburetor | 90430-63001 |
| 17872 | Air intake connecting pipe bracket | 17872-16010 |
| 17881 | No. 1 air cleaner hose | 17881-16020 · 17881-16080 · 17881-63010 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-83001 · 96111-10460 · 96111-10830 |
| 17882 | No. 2 air cleaner hose | 17881-15060 · 17882-16010 · 17882-16020 · 17882-16070 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 |
| 17887 | air cleaner hose cover | 17887-15020 · 58405-12020 |
| 22250 | Intake air flow meter assembly | 22250-16010 · 22250-16030 |
| 22275 | air flow meter gasket | 22275-41010 |
