Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

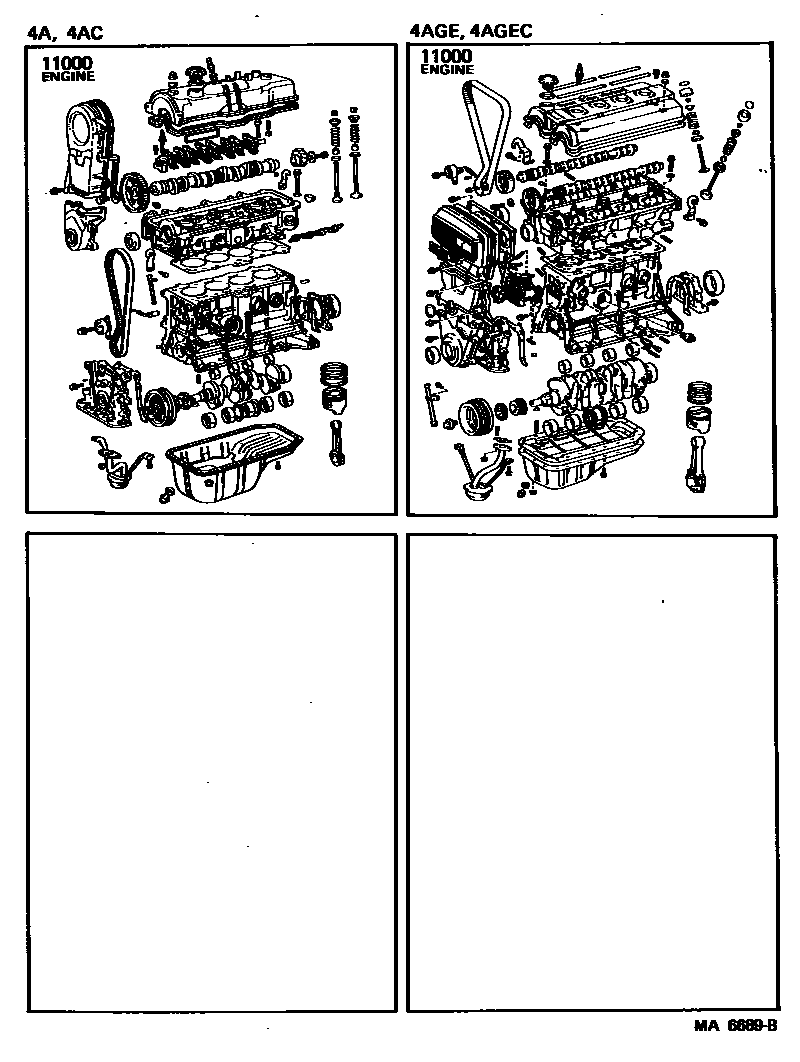

Toyota COROLLA Partial Engine Assembly EPC diagram — MA6689B
Partial Engine Assembly — MA6689B (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-16070 · 19000-16110 · 19000-16120 · 19000-16130 · 19000-16210 · 19000-16300
