Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 6 PNC and OE references.

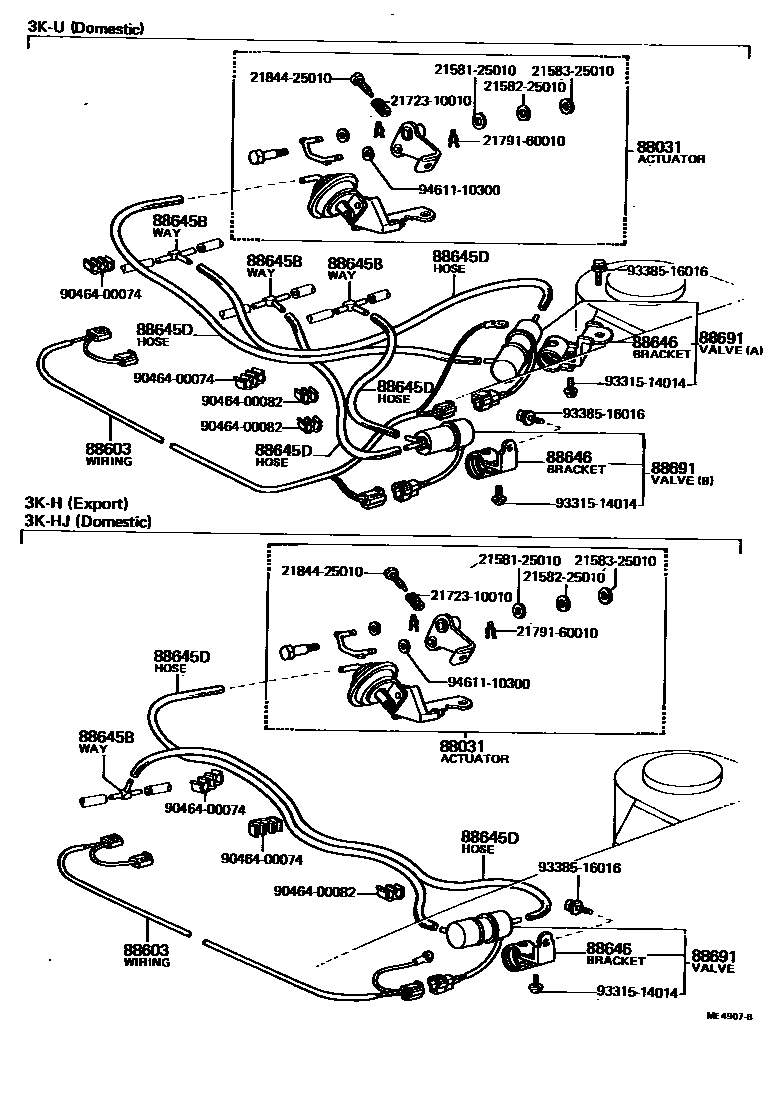

Toyota COROLLA 暖风和空调系统 - 真空管 EPC diagram — ME4907B
暖风和空调系统 - 真空管 — ME4907B (197511 – 197701)

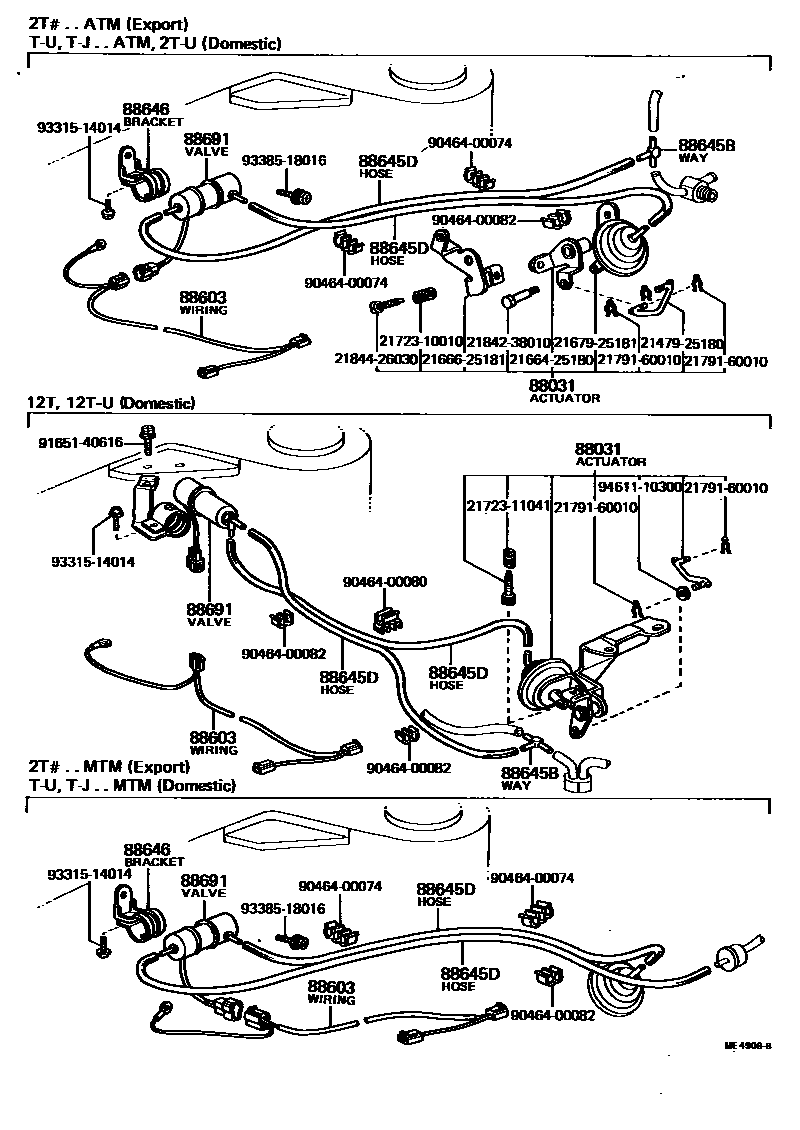

Toyota COROLLA 暖风和空调系统 - 真空管 EPC diagram — ME4908B
暖风和空调系统 - 真空管 — ME4908B (197511 – 197701)

PNC and OE references

PNCPart nameOE numbers
88031Idle speed lift actuator assembly88031-12040
88603Idle speed lifting device wiring harness88648-12021 · 88648-12031
88645BConnector No. 1 (for idle speed lifting device)90413-04001
88645DHoses (for idle lift)95411-10060 · 95411-19960
88646No. 1 idle speed lifting device bracket88688-12010
88691Solenoid valve (for idle speed lifting device)88691-14030
