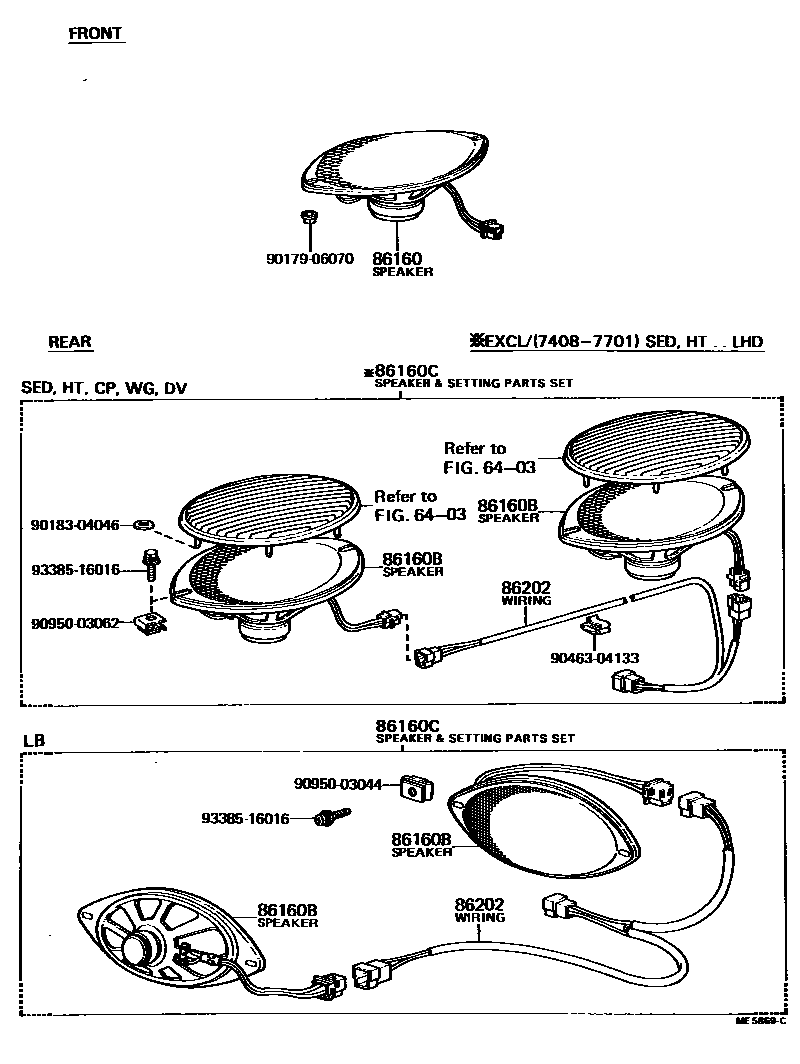

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86021 | Tape player and set parts assemblies | 86021-19015 · 86021-19035 · 86021-19085 · 86021-19115 · 86021-19125 |
| 86160B | Rear speaker assembly | 86160-12050 |
| 86160C | rear speaker assembly | 86160-12050 |
| 86202B | Tape player wiring harness | 86203-12012 |
| 86260 | Tape player assembly | 86260-12030 · 86260-12080 · 86260-12091 · 86260-12100 · 86260-12120 · 86260-14140 |
| 86265 | Tape player stand No. 1 | 86265-12040 · 86265-12100 · 86265-12161 · 86265-12180 |
| 86266 | Tape player stand No. 2 | 86265-12050 · 86265-12090 · 86265-12110 · 86265-12171 · 86266-12090 |
| 86267 | Tape player stand No. 3 | 86266-12040 · 86266-12050 · 86266-12081 · 86266-12120 |
| 86268 | Tape player stand No. 4 | 86266-12080 |
