Toyota COROLLA 前大灯清洗器 — Figure 8505

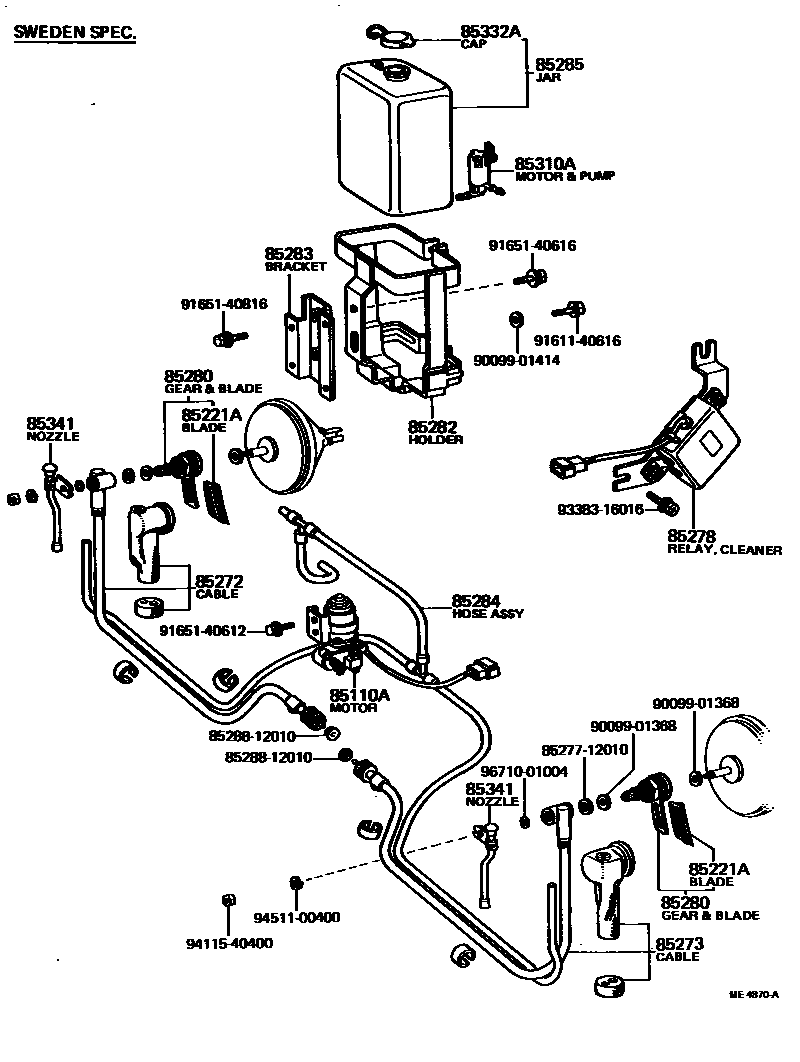

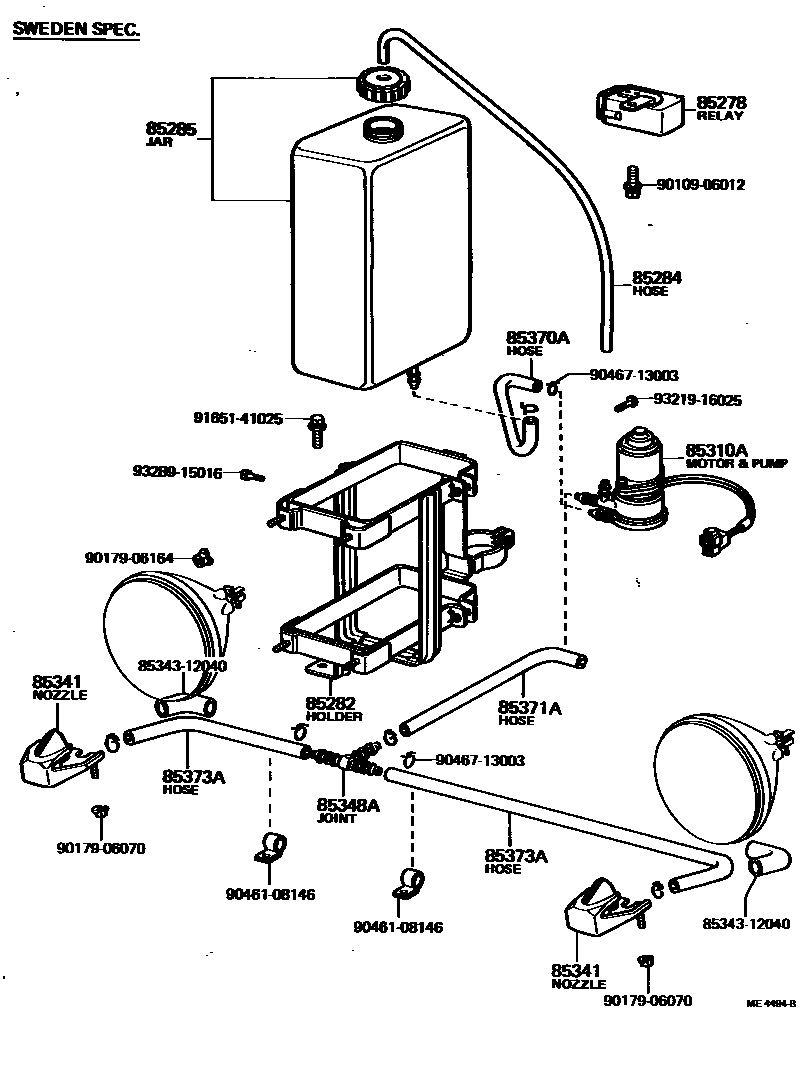

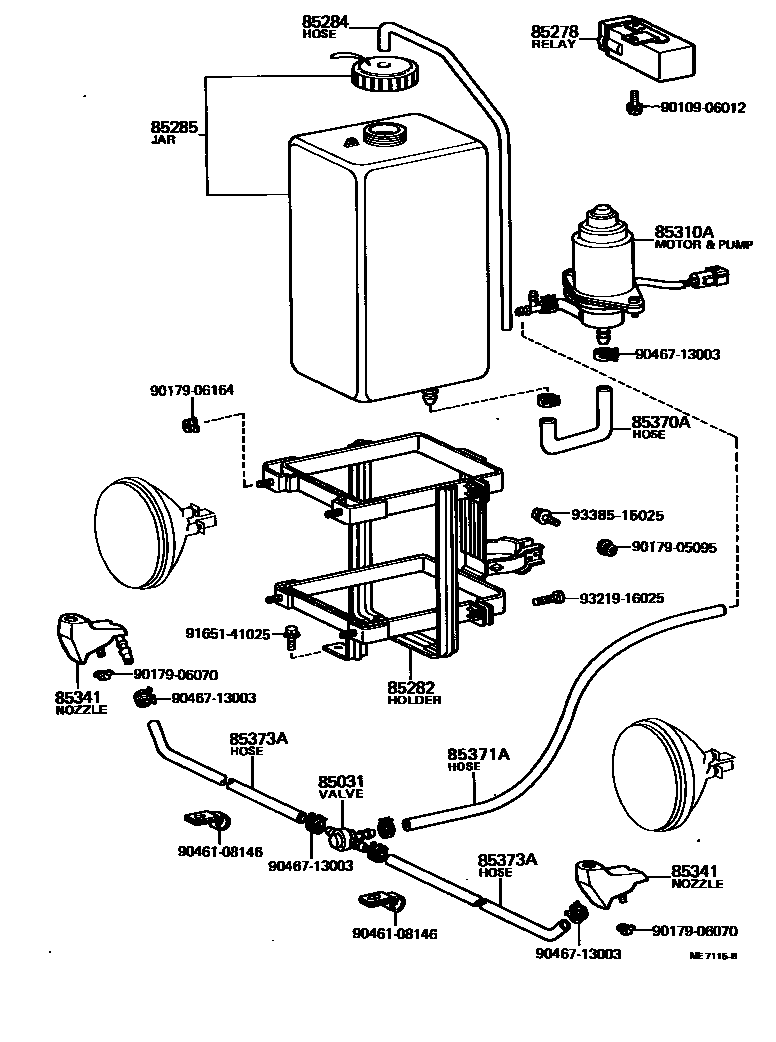

Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-12010 |
| 85110A | Headlight washer motor assembly | 85110-12110 |
| 85221A | Headlight washer wiper blade assembly | 85221-12100 |
| 85272 | Right headlight washer cable sub-assembly | 85272-12010 |
| 85273 | Left headlight washer cable sub-assembly | 85273-14010 |
| 85278 | Headlight washer control relay assembly | 85276-12010 · 85276-12020 · 85276-14010 · 85276-22010 |
| 85280 | Headlight washer gear and wiper blade sub-assembly | 85280-12010 |
| 85282 | Headlight washer cleaning fluid tank holder assembly | 85282-12010 · 85361-12040 · 85361-12060 · 85361-12080 · 85361-12090 |
| 85283 | Headlight washer bracket | 85283-12020 |
| 85284 | Headlight washer hose assembly | 85284-12020 · 90446-07002 |
| 85285 | Headlight washer cleaning fluid tank | 85330-12040 · 85330-12060 |
| 85310A | Headlight washer motor and pump assembly | 85310-12020 · 85310-12040 · 85310-12050 · 85310-12080 · 85310-12090 |
| 85332A | Headlight washer washer fluid tank cap | 85033-20070 |
| 85341 | Headlight washer nozzle | 85035-12060 · 85035-12070 · 85035-12080 · 85044-12010 · 85044-12020 · 85045-12010 · 85045-12020 · 85341-22040 · 85341-22050 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85370A | No. 1 headlight washer hose assembly | 85271-12010 · 85343-12020 |
| 85371A | Headlight washer hose (from motor to connector) | 85343-12030 · 85343-12050 · 90445-14027 · 90445-14036 |
| 85373A | Headlight washer hose (from connector to nozzle) | 90445-14022 · 90445-14023 · 90445-14035 · 90445-14037 |
