Toyota COROLLA 后清洗器 — Figure 8504

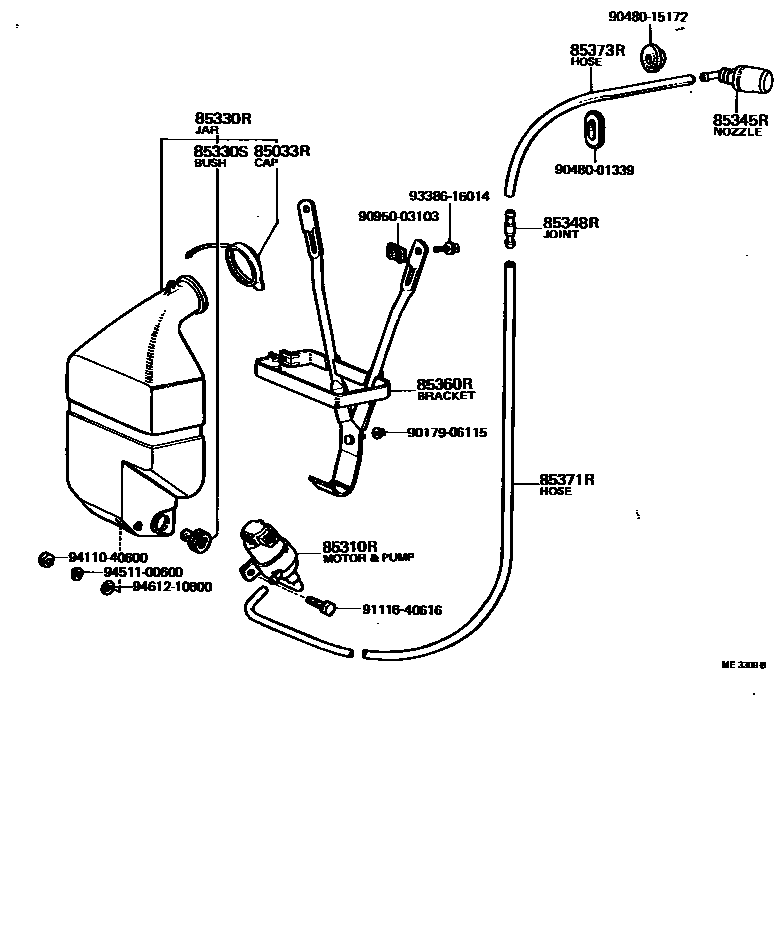

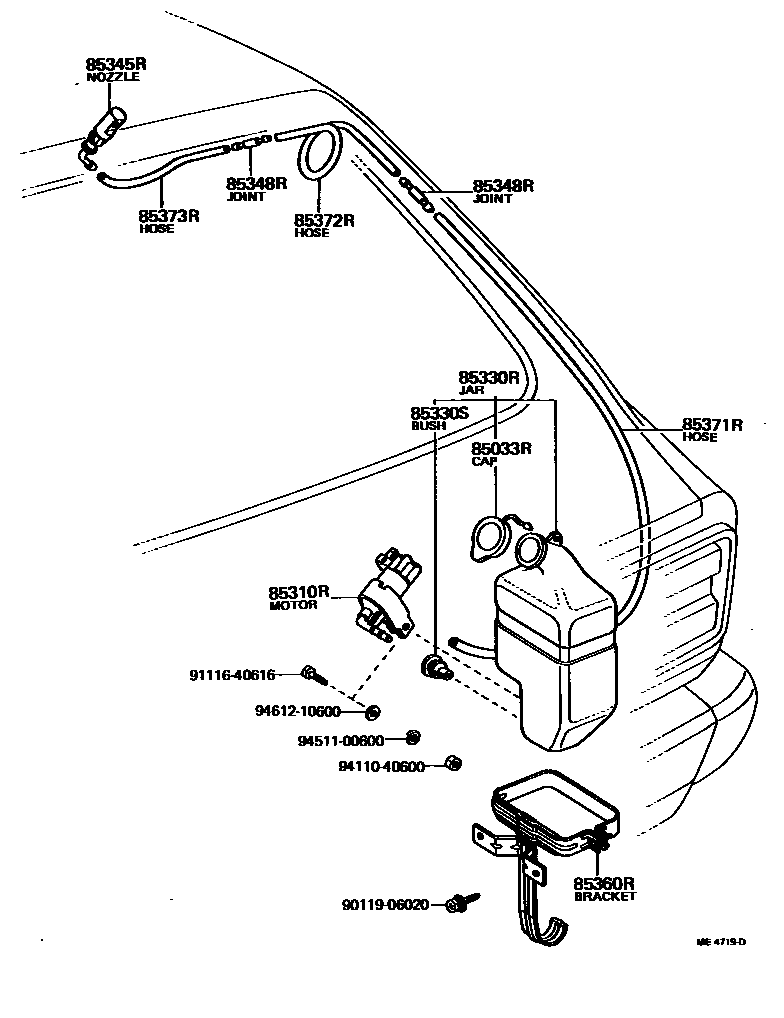

Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033R | Rear washer cover assembly | 85033-36120 |
| 85310R | Rear washer motor assembly | 85310-20100 · 85310-23010 |
| 85330R | Rear cleaning fluid tank assembly | 85330-23010 · 85330-23011 · 90099-32089 |
| 85330S | Rear washer fluid tank bushing | 90099-32057 · 90099-32089 |
| 85345R | Rear washer nozzle | 85035-12050 · 85035-21010 · 85035-91255 |
| 85348R | No. 1 rear washer hose connector | 85355-87201 |
| 85360R | Rear washer bracket assembly | 85360-13010 · 85360-23010 |
| 85371R | Rear washer hose (from motor to connector) | 90446-06286 · 90446-06302 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33286 · 90445-07060 |
| 85373R | Rear washer hose (from connector to nozzle) | 90446-06236 · 90446-07001 |
