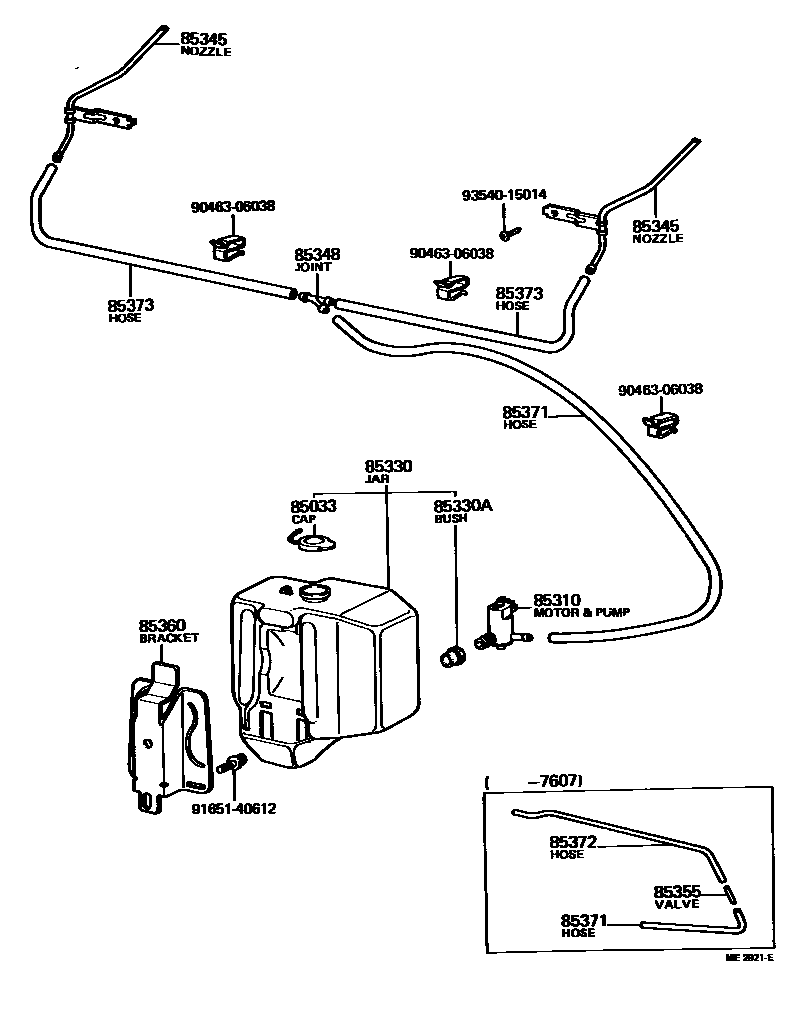

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85332-30050 |
| 85310 | Windshield washer motor and pump assembly | 85310-12020 · 85310-20100 |
| 85330 | Windshield washer fluid tank assembly | 85330-12030 · 85330-12050 · 85330-12051 · 85330-20180 |
| 85330A | Windshield washer fluid tank bushing | 90099-32057 · 90099-32089 |
| 85345 | windshield washer nozzle | 85341-12010 · 85341-12020 · 85341-12050 · 85341-12060 |
| 85348 | Windshield washer hose connector No. 1 | 85355-14010 |
| 85355 | Windshield washer hose valve | 85031-14020 |
| 85360 | Windshield washer bracket assembly | 53752-12020 · 53752-12030 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33242 · 90099-33289 · 90099-33315 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33289 · 90446-06236 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33242 |
