Toyota COROLLA 后牌照灯 — Figure 8113

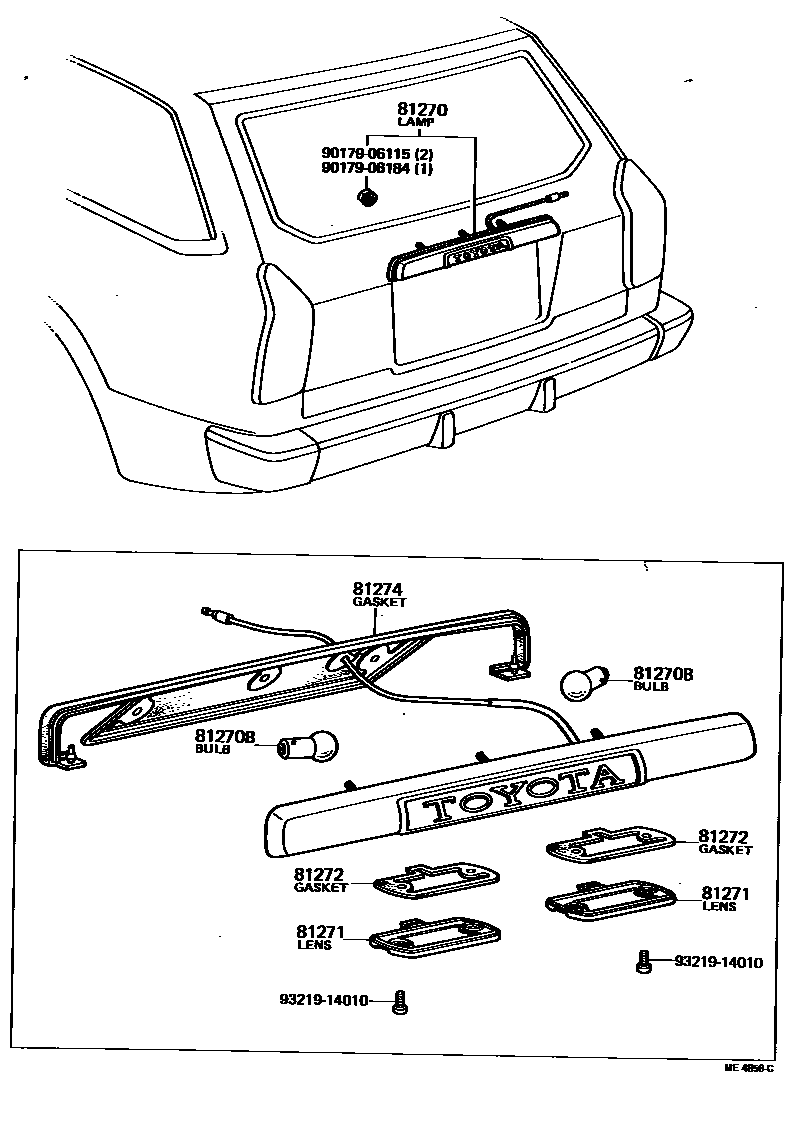

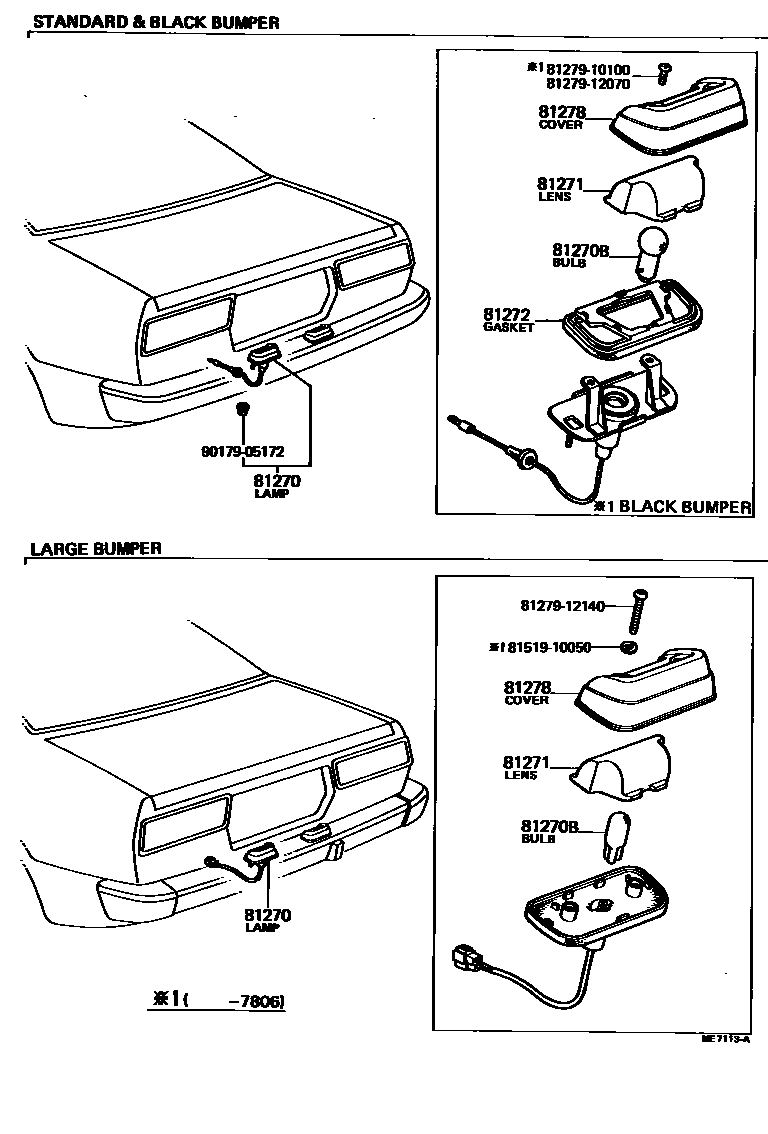

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12140 · 81270-19245 · 81270-19255 · 81270-19315 · 81270-19485 · 99132-12050 |
| 81270B | Bulb (for license plate light) | 99132-11050 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-12070 · 81271-12140 · 81271-13070 · 81271-30080 |
| 81272 | License plate lamp shade gasket | 81272-12070 · 81272-13070 · 81272-14050 |
| 81274 | License plate light body gasket | 81274-13070 |
| 81278 | license plate light cover | 81276-12070 · 81276-12140 · 81276-12160 · 81276-14050 |
