Toyota COROLLA 后组合灯 — Figure 8111

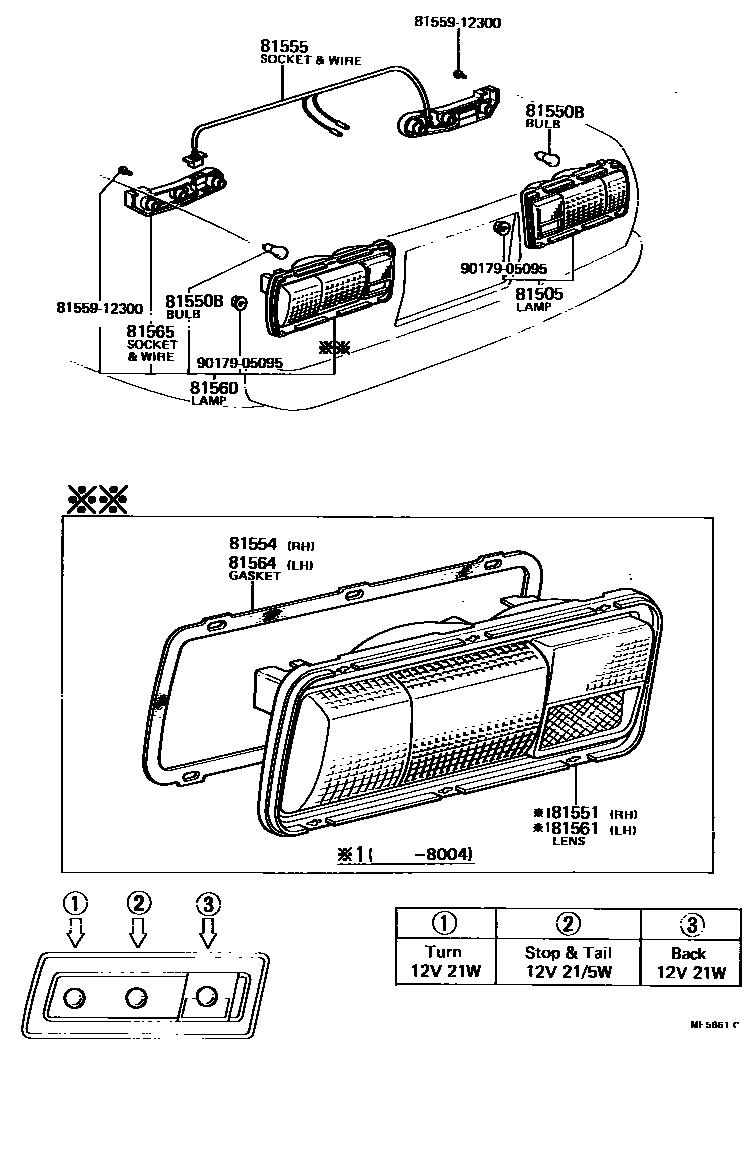

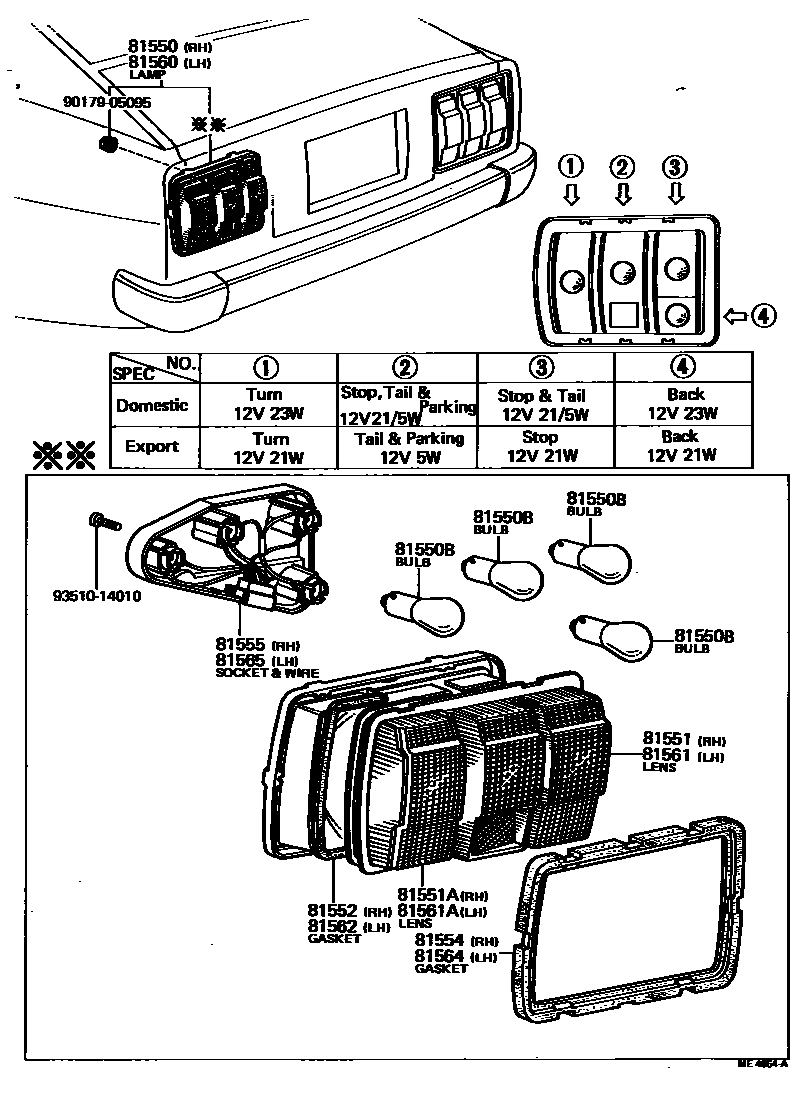

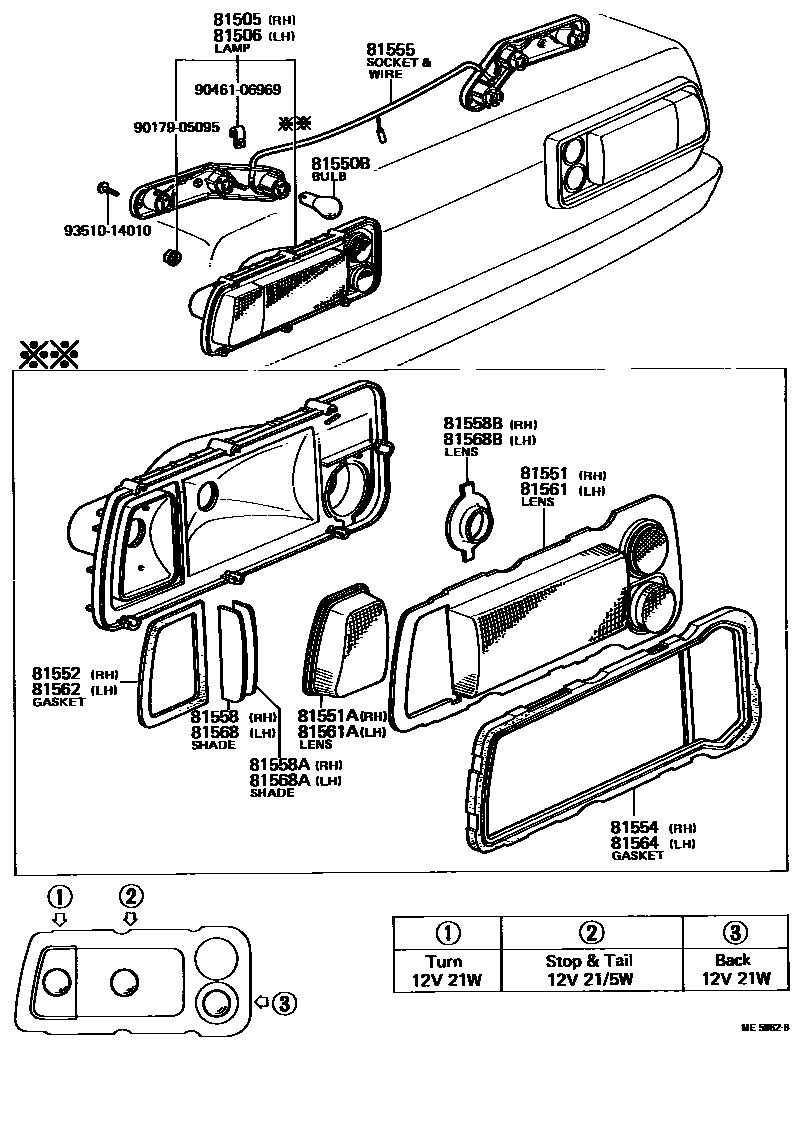

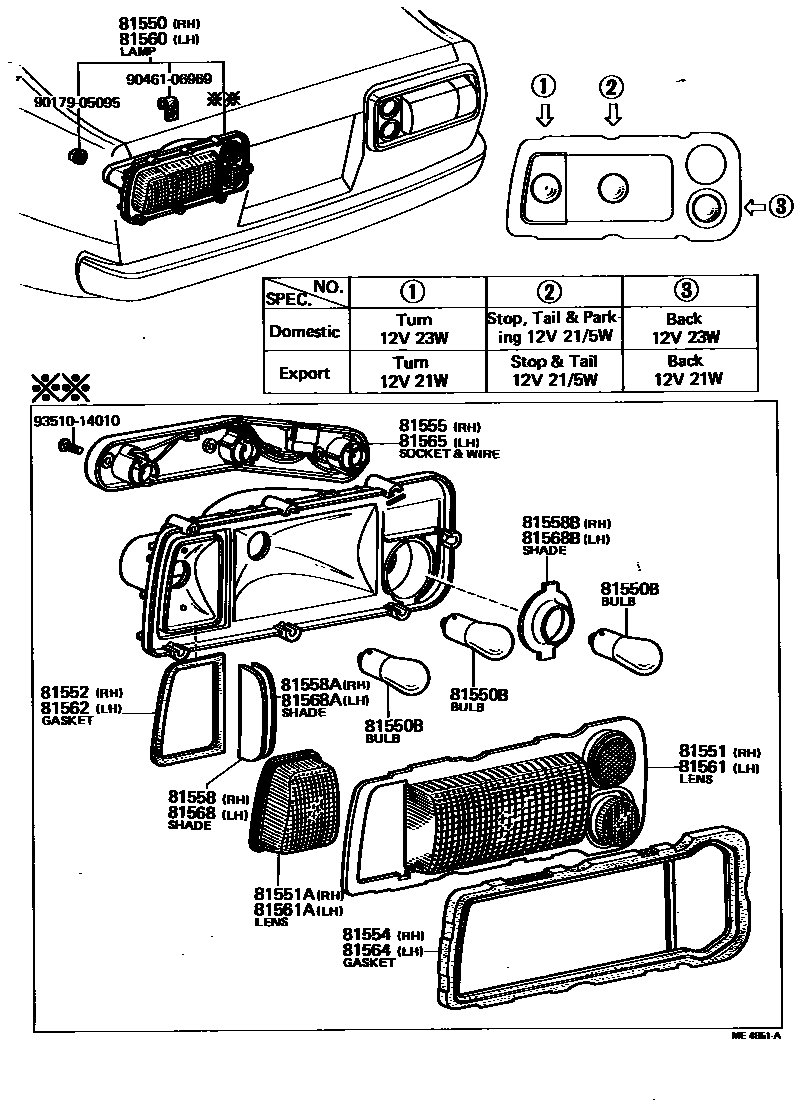

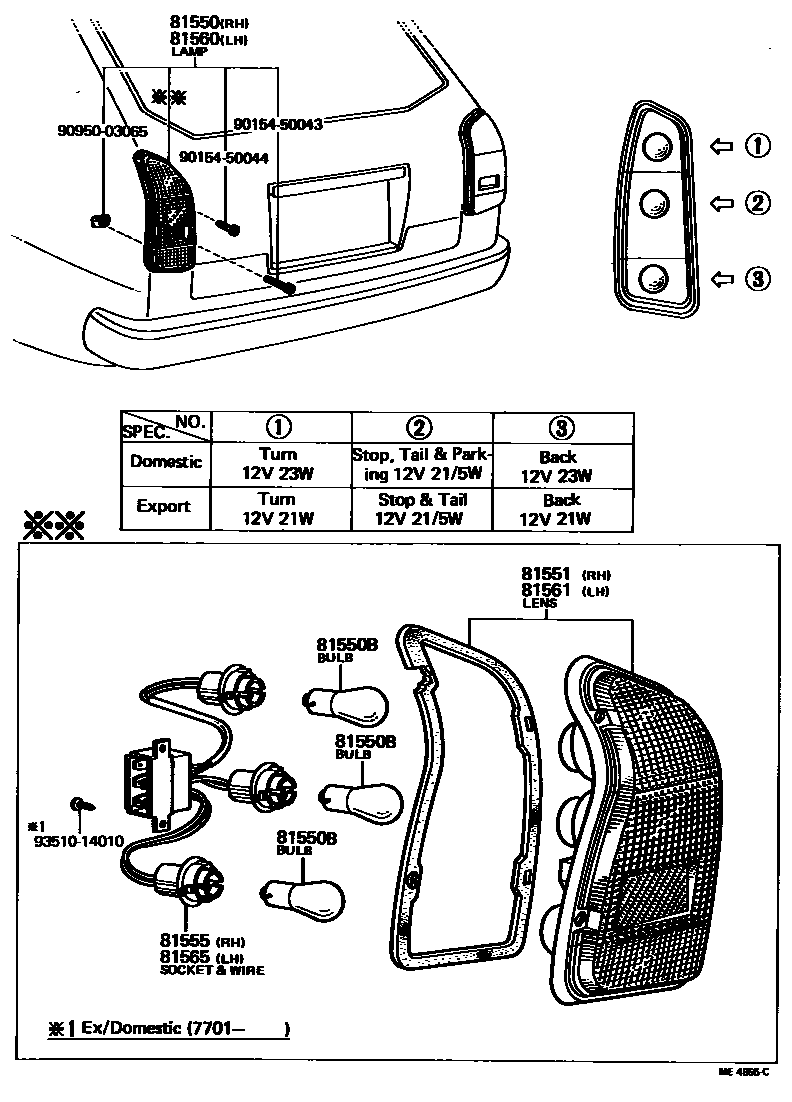

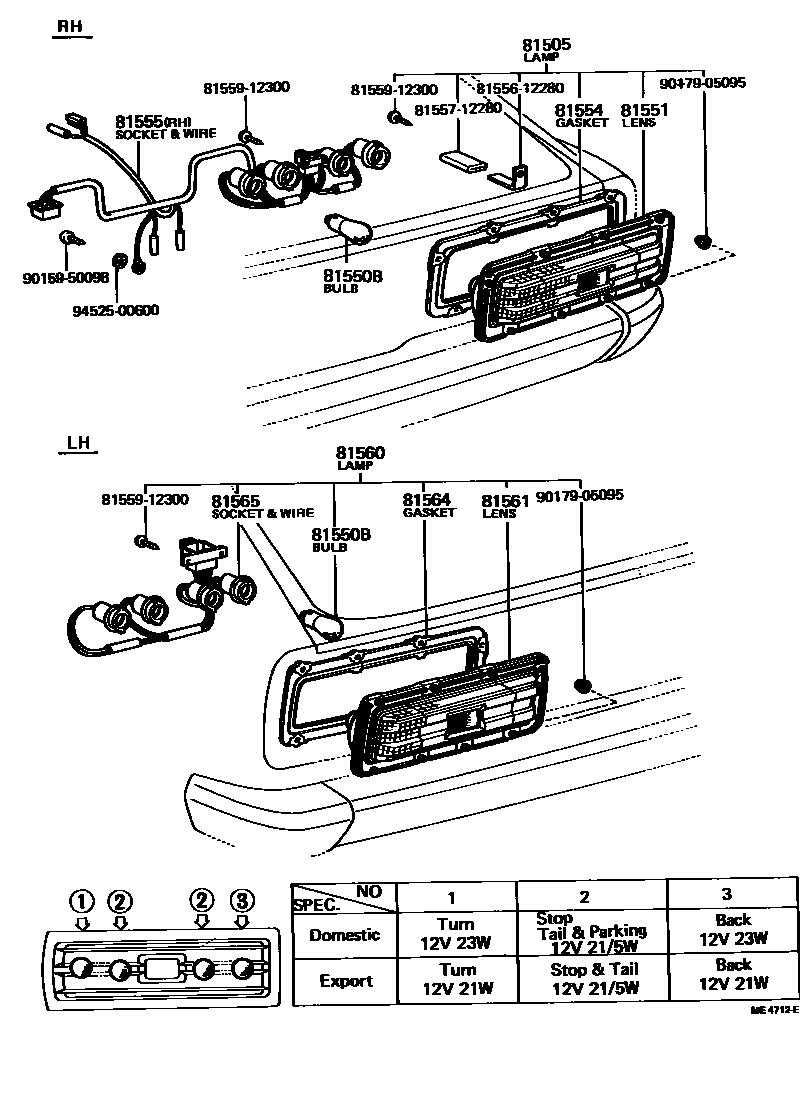

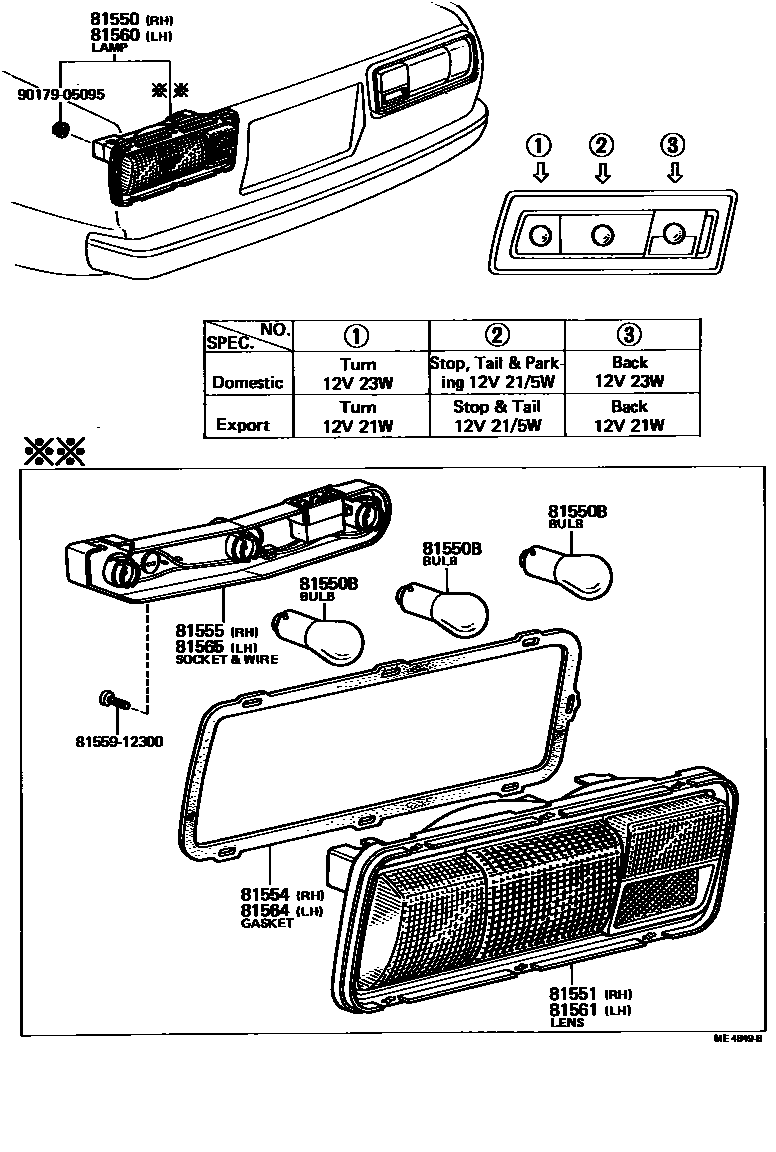

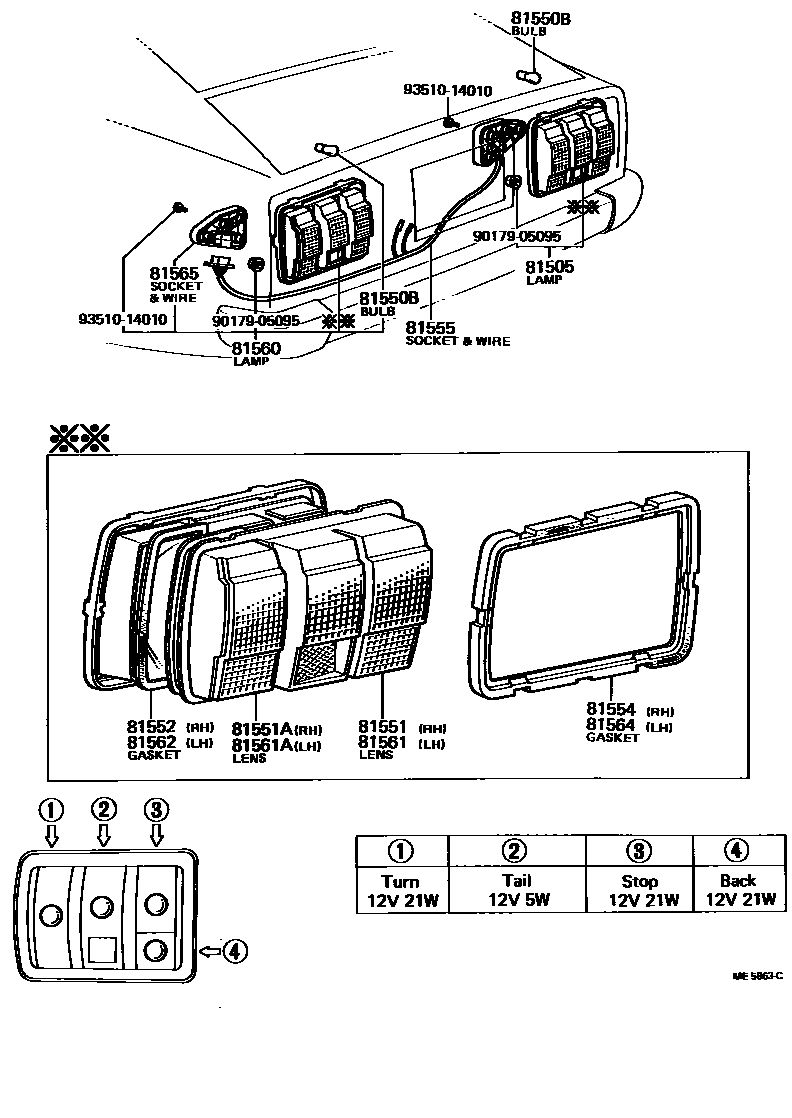

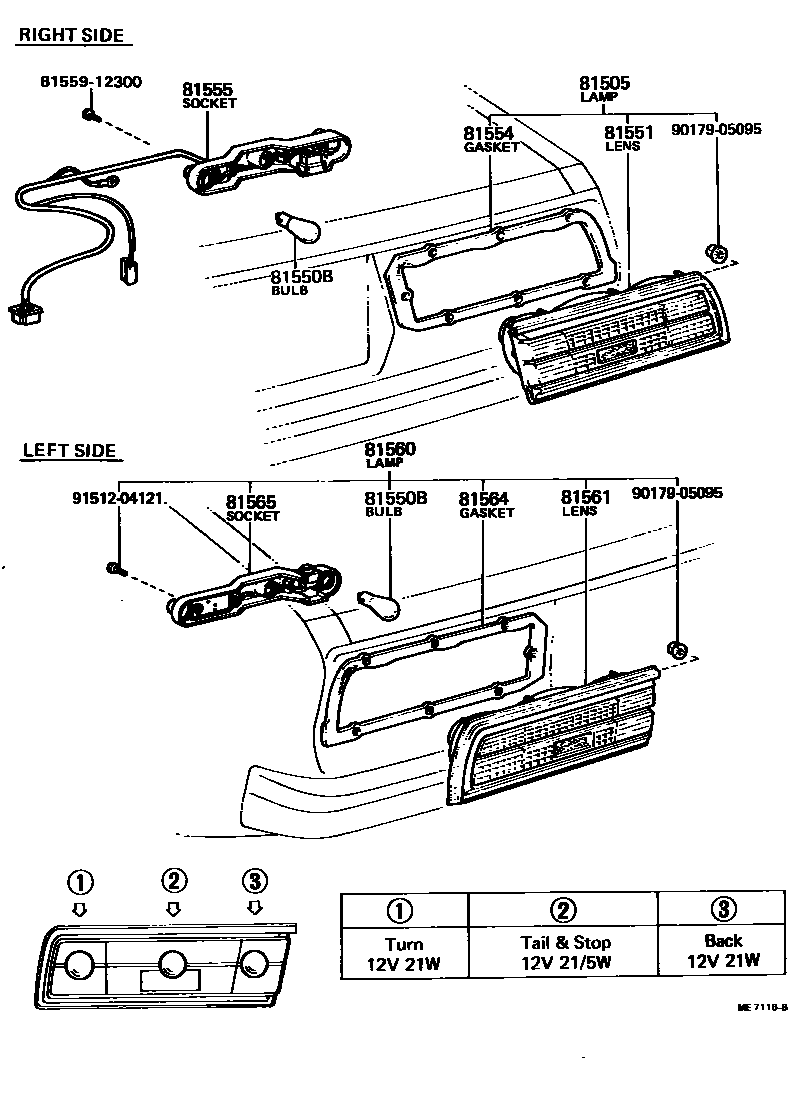

Toyota COROLLA EPC diagram 8111, 后组合灯, with 9 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81505 | Right rear combination lamp sub-assembly | 81505-19025 · 81505-19115 · 81505-19125 · 81505-19135 · 81505-19175 · 81505-19205 · 81505-19495 · 81505-19505 |
| 81506 | Left rear combination lamp sub-assembly | 81506-19055 · 81506-19075 · 81506-19365 |
| 81550 | Right rear combination light assembly | 81550-19705 · 81550-19715 · 81550-19725 · 81550-19735 · 81550-19775 · 81550-80074 |
| 81550B | Bulb (for rear combination lights) | 99132-11050 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-12320 · 81551-12350 · 81551-12370 · 81551-12390 · 81551-12440 · 81551-12500 · 81551-13180 |
| 81551A | Right rear combination lamp shade | 81557-12320 · 81557-12350 |
| 81552 | Right rear combination lamp shade gasket | 81554-12320 · 81554-12350 |
| 81554 | Right rear combination lamp body gasket | 81552-12320 · 81552-12350 · 81554-12280 · 81554-12300 · 81554-12301 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12300 · 81555-12301 · 81555-12320 · 81555-12370 · 81555-12371 · 81555-12391 · 81555-12392 · 81555-12410 · 81555-12411 · 81555-12430 · 81555-12431 · 81555-12432 · 81555-12443 · 81555-12501 · 81555-13170 |
| 81558 | No. 1 right rear combination light lampshade | 81559-12320 |
| 81558A | No. 2 right rear combination light lampshade | 81559-12320 |
| 81558B | No. 3 right rear combination light lampshade | 81558-12320 |
| 81560 | Left rear combination light assembly | 81560-19685 · 81560-19695 · 81560-19705 · 81560-19715 · 81560-19755 · 81560-19795 · 81560-80017 · 81560-80076 · 81560-80077 |
| 81561 | Left rear combination lamp shade | 81561-12320 · 81561-12350 · 81561-12370 · 81561-12390 · 81561-12440 · 81561-12500 · 81561-13180 |
| 81561A | Left rear combination lamp shade | 81567-12320 · 81567-12350 |
| 81562 | Left rear combination lamp shade gasket | 81554-12320 · 81554-12350 |
| 81564 | Left rear combination lamp body gasket | 81562-12320 · 81562-12350 · 81564-12280 · 81564-12300 · 81564-12301 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13170 · 81565-12300 · 81565-12301 · 81565-12320 · 81565-12370 · 81565-12430 |
| 81568 | No. 1 left rear combination light lampshade | 81559-12320 |
| 81568A | No. 2 left rear combination light lampshade | 81559-12320 |
| 81568B | No. 3 left rear combination light lampshade | 81558-12320 |
