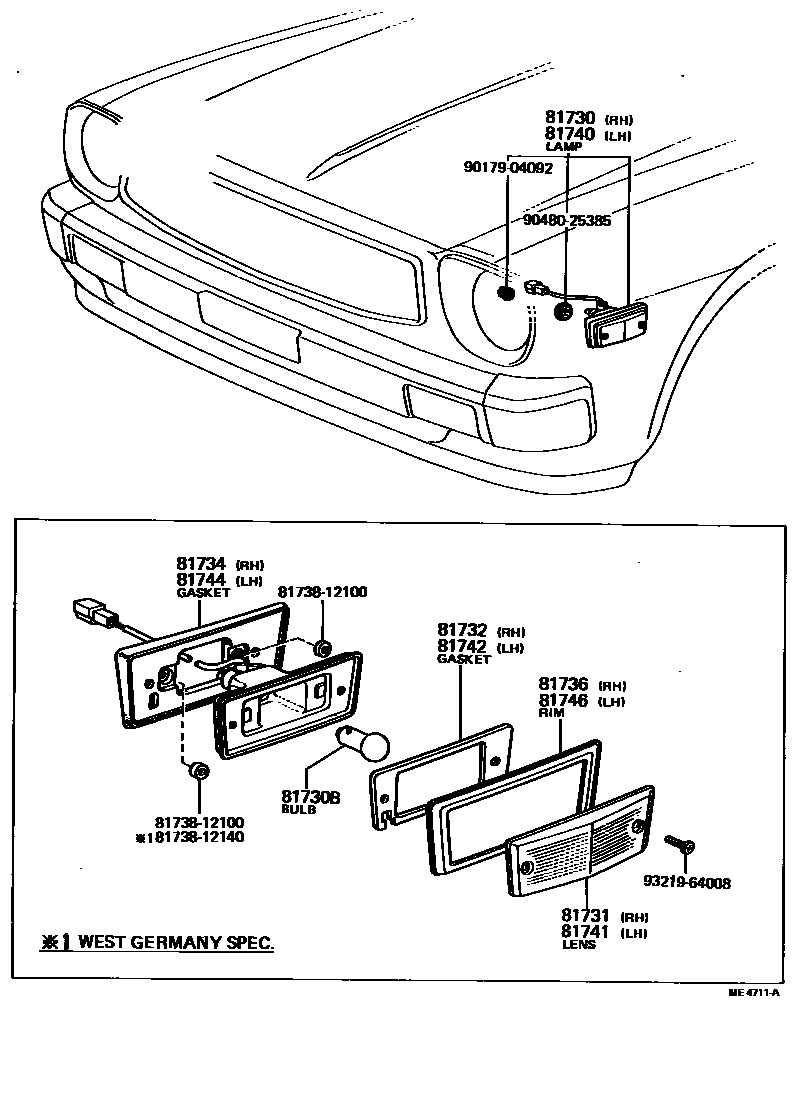

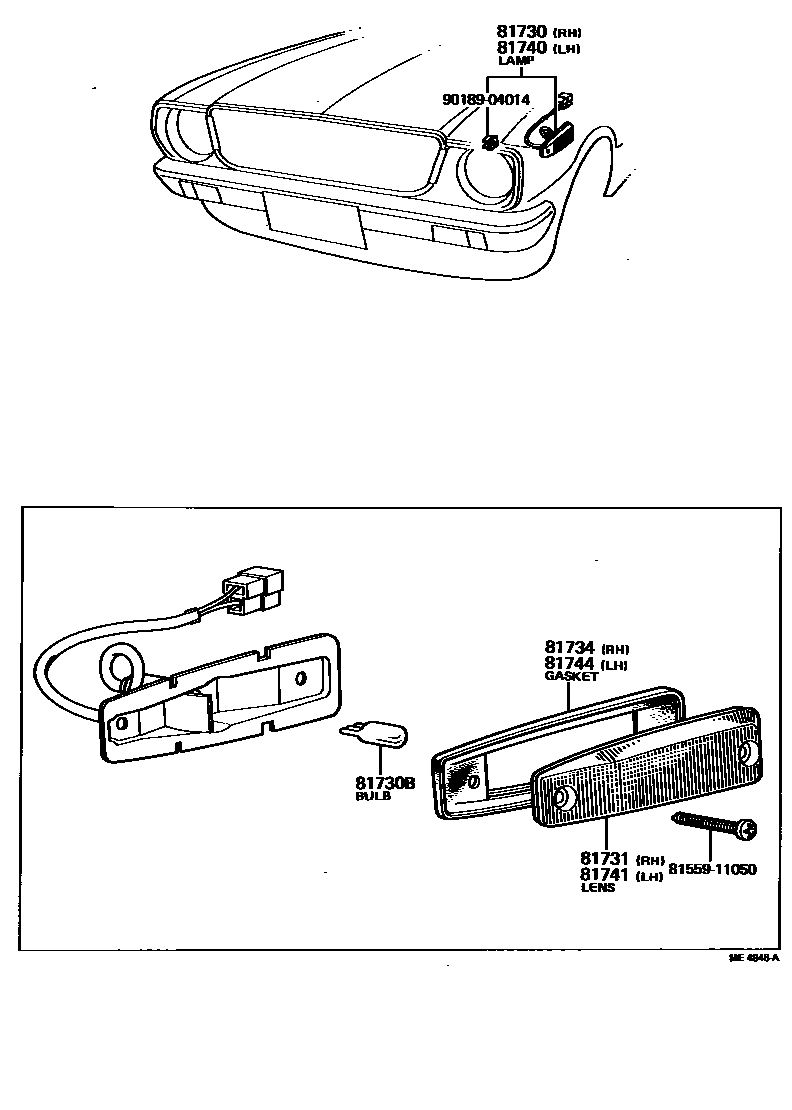

Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-19215 · 81730-19255 · 81730-19275 |
| 81730B | Bulb (for side turn signal lights) | 99132-11050 · 99132-12050 · 99132-13060 |
| 81731 | Right side turn signal lamp cover | 81731-12080 · 81731-14050 · 81731-14060 |
| 81732 | Right side turn signal light housing gasket | 81732-14030 · 81732-14040 |
| 81734 | Right side turn signal light body gasket | 81732-12080 · 81734-12100 · 81734-12140 |
| 81736 | Right side turn signal light frame | 81736-14030 · 81736-14040 |
| 81740 | Left side turn signal light assembly | 81740-19195 · 81740-19235 · 81740-19255 |
| 81741 | Left side turn signal lamp cover | 81741-12080 · 81741-14050 · 81741-14060 |
| 81742 | Left side turn signal light housing gasket | 81732-14030 · 81742-14040 |
| 81744 | Left side turn signal light body gasket | 81742-12080 · 81744-12100 · 81744-12140 |
| 81746 | Left side turn signal light frame | 81746-14030 · 81746-14040 |
