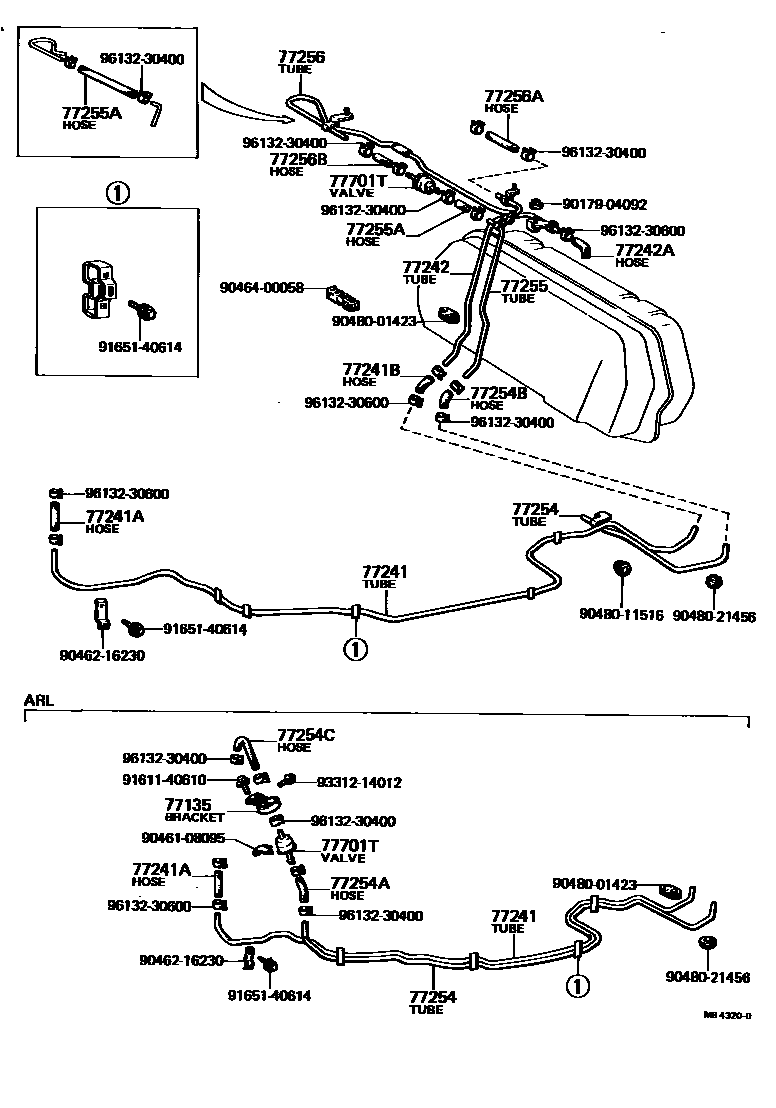

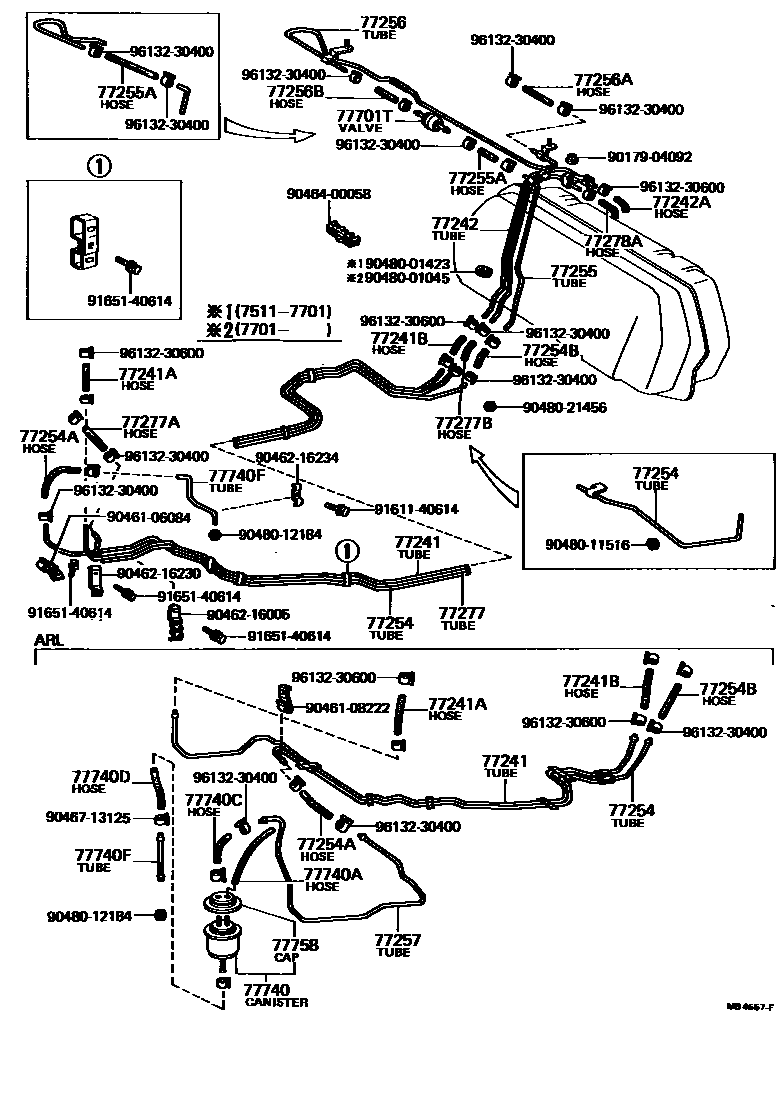

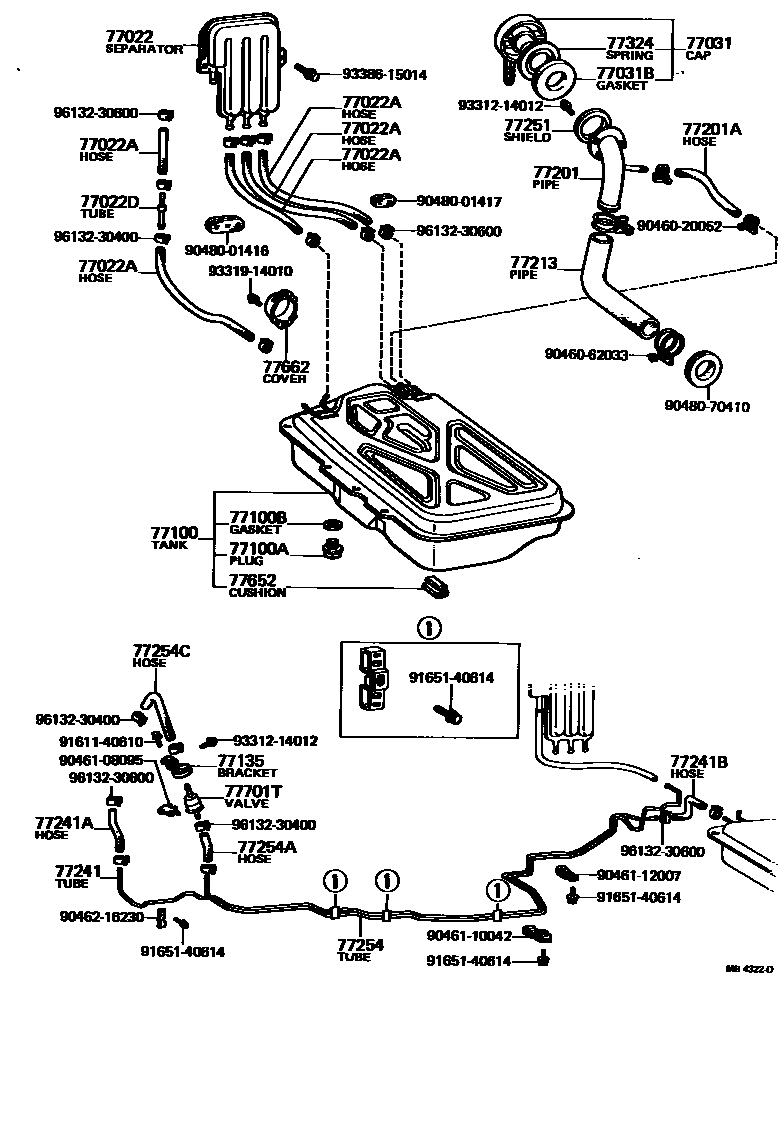

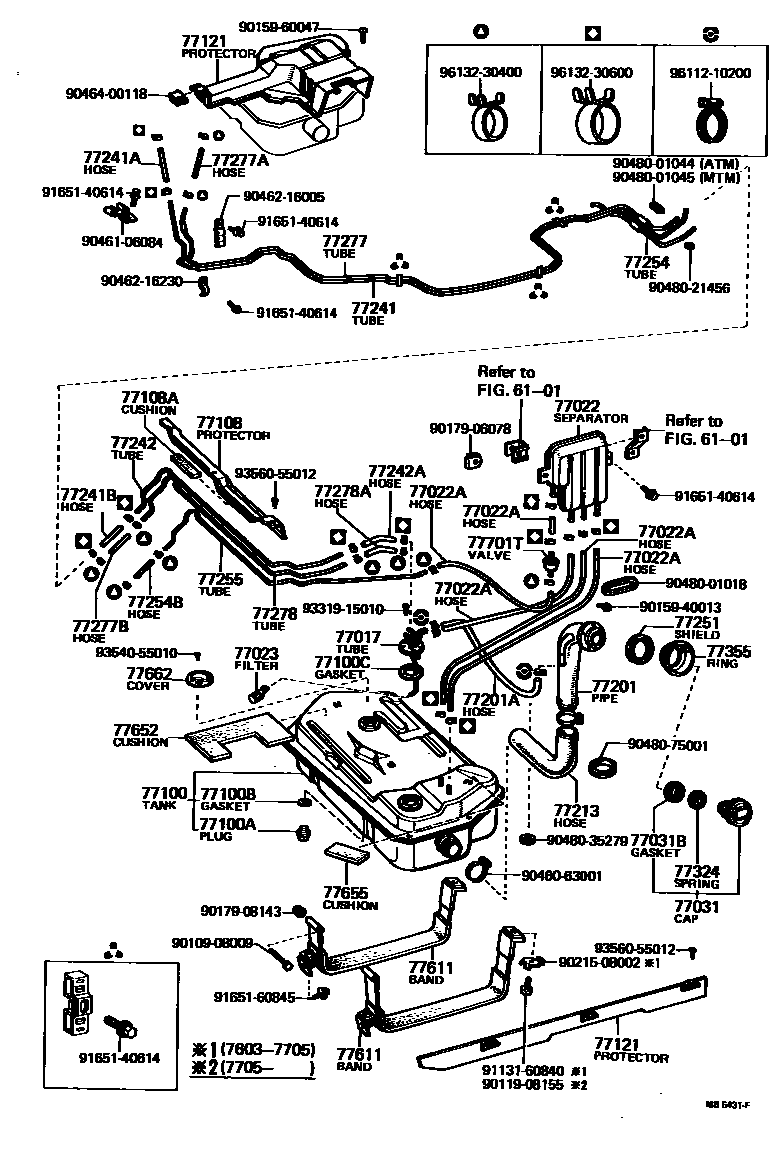

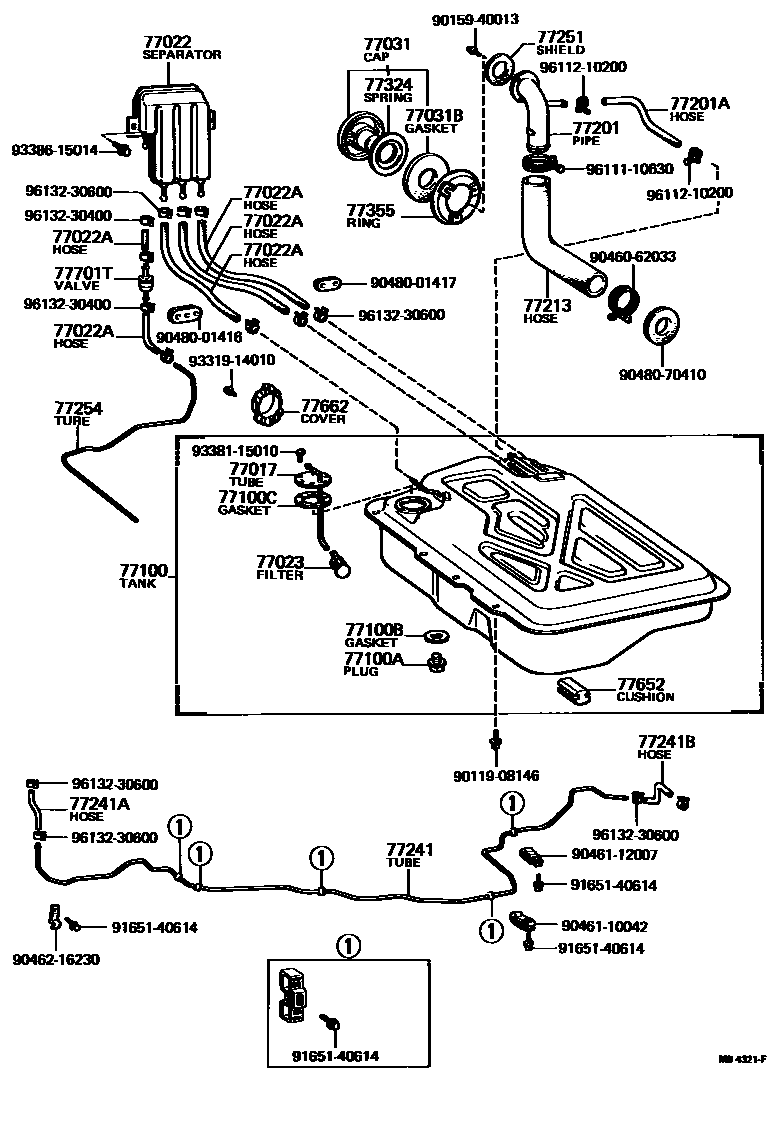

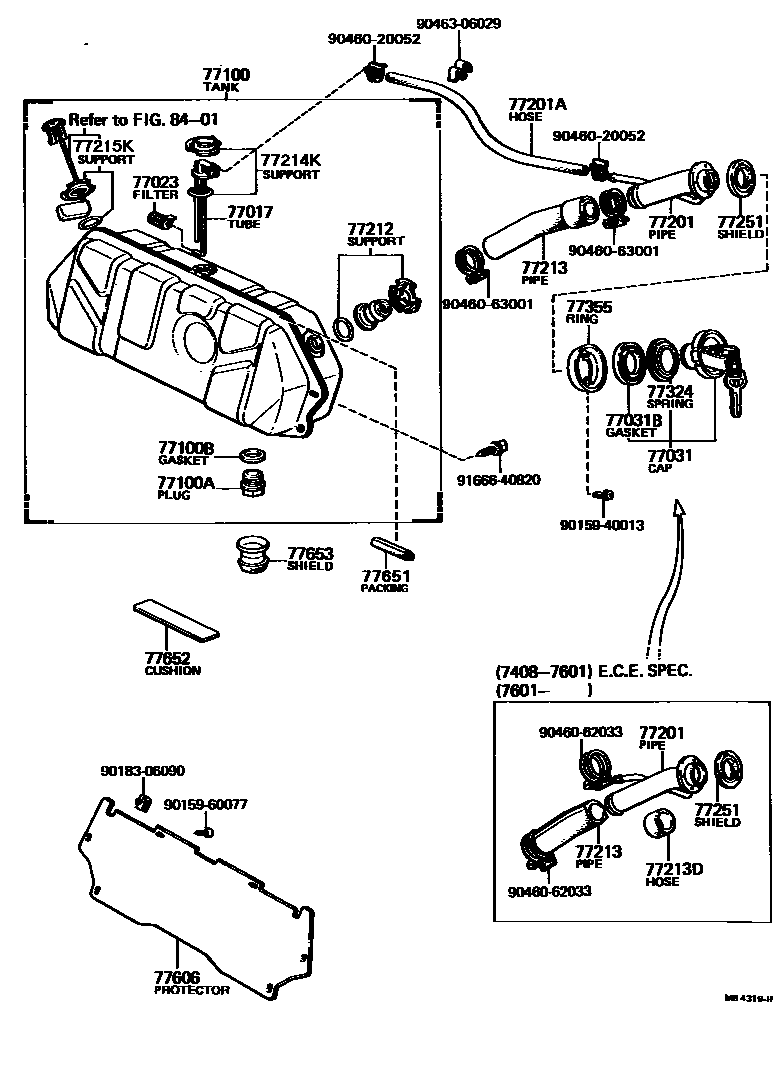

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 7 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-12051 · 77017-12062 · 77017-12070 · 77017-12071 · 77017-12080 · 77017-12081 · 77203-13031 |
| 77022 | Fuel vapor separator sub-assembly | 77271-13010 |
| 77022A | Fuel hose (for fuel vapor separator) | 90445-12031 · 90445-12032 · 90445-12040 · 90445-12047 · 95331-04024 · 95331-04038 · 95331-04055 · 95331-06005 · 95331-06055 · 95331-06065 · 95331-06075 · 95332-04024 · 95332-04038 · 95332-06005 · 95332-06055 · 95332-06065 |
| 77022D | Hoses or tubes (for fuel vapor separators) | 90412-06081 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 |
| 77031 | Fuel tank cap assembly | 69058-12010 · 69058-12011 · 69058-12030 · 69058-13010 · 69058-13020 |
| 77031B | Gasket (for fuel tank cap) | 77316-12031 · 77316-12050 |
| 77100 | fuel tank assembly | 77100-12901 · 77100-12902 · 77100-12908 · 77101-12100 · 77101-12900 · 77101-13040 · 77101-13041 · 77101-13042 |
| 77100A | Screw plug (for fuel tank) | 90105-12018 · 90341-24036 |
| 77100B | Gasket (for fuel tank) | 90430-12038 · 90430-12245 · 90430-24047 |
| 77100C | Fuel suction pipe fixed gasket | 77169-12010 |
| 77108 | Fuel tank protective shell sub-assembly | 77266-12010 |
| 77108A | Fuel tank protective shell cushion | 77286-12010 |
| 77121 | Fuel line protection device | 77039-12010 · 77267-12030 |
| 77135 | One-way valve bracket | 77277-12030 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12100 · 77201-12120 · 77201-12130 · 77201-12131 · 77201-12150 · 77201-12170 · 77201-12190 · 77201-13050 · 77201-13051 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-18002 · 90445-18016 · 90445-18019 · 90445-18023 · 90445-18028 · 90445-18868 |
| 77212 | Fuel tank inlet bracket assembly | 04772-12020 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-12050 · 77213-12060 · 77213-12080 · 77213-12090 · 77213-12120 · 77213-13030 |
| 77213D | Fuel tank filler pipe gasket | 77219-12010 · 77219-12011 |
| 77214K | Fuel tank pipe bracket assembly | 04772-12010 |
| 77215K | Fuel tank instrument bracket assembly | 04772-12020 |
| 77241 | No. 1 main fuel pipe | 77251-12020 · 77251-12021 · 77251-12100 · 77251-13020 · 77251-13021 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 77279-12010 · 95331-06012 · 95331-06020 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 95331-06012 · 95331-06016 · 95331-06019 · 95331-06020 · 95331-06024 · 95331-06026 · 95332-06016 · 95332-06026 |
| 77242 | No. 2 main fuel pipe | 77025-12010 · 77025-12011 · 77025-12021 · 77025-12022 · 77252-12050 · 77252-12051 |
| 77242A | No. 1 fuel hose (for No. 2 main pipe) | 77259-12050 · 77259-12051 · 95331-06016 · 95331-06020 · 95331-06022 · 95332-06020 |
| 77251 | No. 1 fuel tank inlet mask | 77291-12010 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77261-12011 · 77261-12012 · 77261-12030 · 77261-12040 · 77261-12050 · 77261-13010 · 77261-13012 · 77261-13013 · 77263-13010 · 77263-13011 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 95331-04009 · 95331-04010 · 95331-04012 · 95331-04013 · 95332-04009 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 95331-04012 · 95331-04013 · 95332-04013 |
| 77254C | No. 3 fuel hose (for No. 1 drain pipe) | 95331-04030 |
| 77255 | No. 2 fuel evaporation exhaust pipe | 77261-12060 · 77261-12061 · 77262-12010 · 77262-12011 |
| 77255A | No. 1 fuel hose (for No. 2 drain pipe) | 95331-04005 · 95331-04014 · 95332-04014 |
| 77256 | No. 3 fuel evaporation exhaust pipe | 77028-12010 · 77028-12030 · 77028-12031 |
| 77256A | No. 1 fuel hose (for No. 3 drain pipe) | 95331-04020 · 95331-04024 · 95332-04020 · 95332-04024 |
| 77256B | No. 2 fuel hose (for No. 3 drain pipe) | 95331-04005 |
| 77257 | No. 4 fuel evaporation exhaust pipe | 77268-12030 · 77268-12031 |
| 77277 | No. 1 fuel return pipe | 77255-12012 · 77255-12013 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 95331-04022 · 95332-04022 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95331-04012 · 95331-04013 · 95332-04013 |
| 77278 | No. 2 fuel return pipe | 77256-12050 · 77256-12051 |
| 77278A | No. 1 fuel hose (for No. 2 return pipe) | 95331-04015 · 95331-04017 · 95331-04020 · 95331-04022 · 95332-04017 |
| 77324 | fuel tank cap spring | 77317-12030 · 77324-12011 |
| 77355 | fuel inlet ring | 77371-12010 · 77371-12011 · 77371-12030 · 77371-12031 · 77371-12040 · 77371-12041 · 77371-12100 · 77371-13010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-12070 · 77606-12080 |
| 77611 | fuel tank strap | 77610-12010 · 77620-12010 |
| 77651 | fuel tank bracket seal | 77276-12010 |
| 77652 | No. 1 fuel tank liner | 77651-12030 · 77651-13020 · 77652-12030 |
| 77653 | fuel tank drain plug cover | 77292-12010 |
| 77655 | No. 3 fuel tank liner | 77653-12020 |
| 77662 | fuel tank cover | 77662-12010 · 77662-13010 |
| 77701T | Check valve (for main fuel tank) | 90917-10025 · 90917-10029 |
| 77740 | Carbon canister assembly | 77740-12100 · 77740-12101 · 77740-12260 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 95331-04012 · 95331-04013 · 95332-04013 |
| 77740D | No. 4 fuel hose (for charcoal canister) | 90445-14031 · 95331-08010 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-12020 · 77264-12021 |
| 77758 | Carbon canister cover | 77758-12020 · 77758-12030 · 77758-30020 |
