Toyota COROLLA 木纹面板和防护条 — Figure 7505

Toyota COROLLA EPC diagram 7505, 木纹面板和防护条, with 1 images and 24 PNC and OE references.

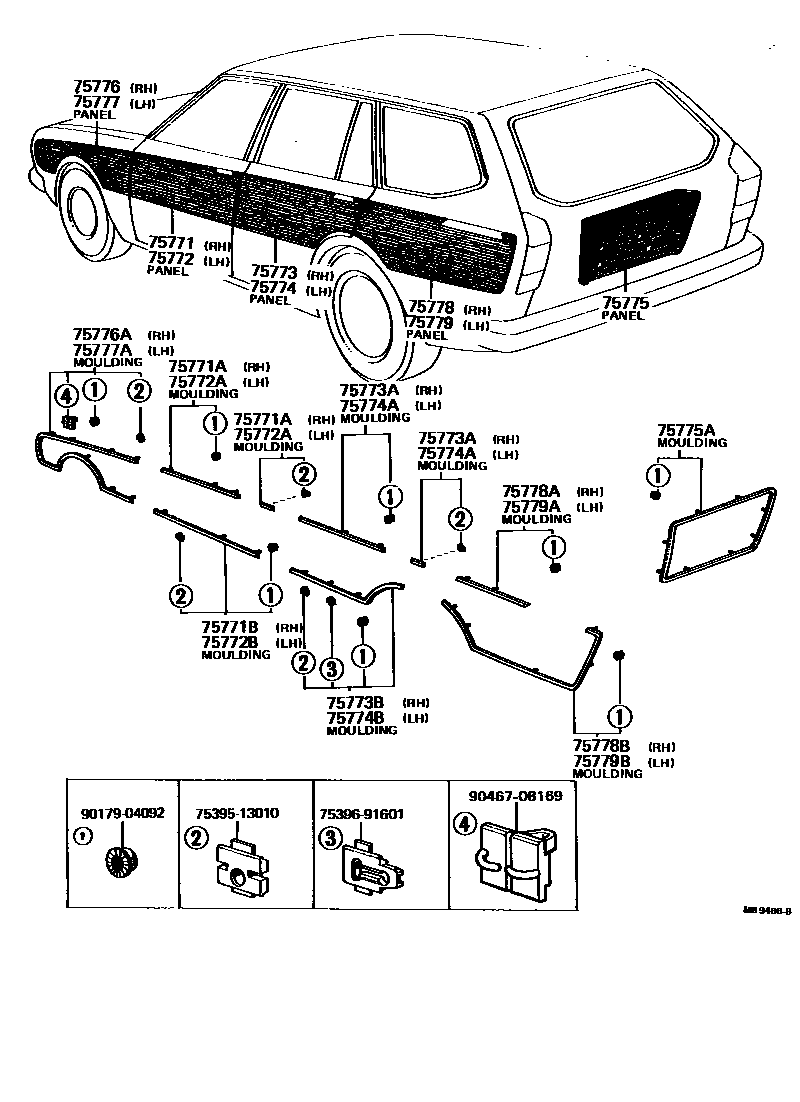

Toyota COROLLA 木纹面板和防护条 EPC diagram — MB9466B
木纹面板和防护条 — MB9466B (197609 – 197908)

PNC and OE references

PNCPart nameOE numbers
75771Right front door outer trim panel75985-13020
75771ANo. 1 right front door outer trim panel protective strip75071-19025 · 75733-19025
75771BNo. 2 right front door outer trim panel protective strip75073-19025
75772Left front door outer trim panel75986-13020
75772ANo. 1 left front door outer trim panel protective strip75072-19025 · 75734-19015
75772BNo. 2 left front door outer trim panel protective strip75074-19025
75773Right rear door outer trim panel75987-13010
75773ANo. 1 right rear door outer trim panel protective strip75075-19015 · 75743-19025
75773BNo. 2 right rear door outer trim panel protective strip75077-19035
75774Left rear door outer trim panel75988-13010
75774ANo. 1 left rear door outer trim panel protective strip75076-19035 · 75744-19015
75774BNo. 2 left rear door outer trim panel protective strip75078-19015
75775Rear door outer trim panel75995-13010
75775ANo. 1 rear door outer trim panel protective strip75801-19055
75776Right front fender outer trim panel75981-13010
75776ANo. 1 right front fender outer trim protective strip75601-19035
75777Left front fender outer trim panel75982-13010
75777ANo. 1 left front fender outer trim protective strip75602-19035
75778Right side enclosure outer decorative panel75991-13020
75778ANo. 1 right side enclosure outer decorative panel protective strip75605-19025
75778BNo. 2 right side enclosure outer decorative panel protective strip75065-19025
75779Decorative panel on the outside of the left side enclosure75992-13020
75779ANo. 1 left side enclosure outer decorative panel protective strip75606-19025
75779BNo. 2 left side enclosure outer decorative panel protective strip75066-19025
