Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

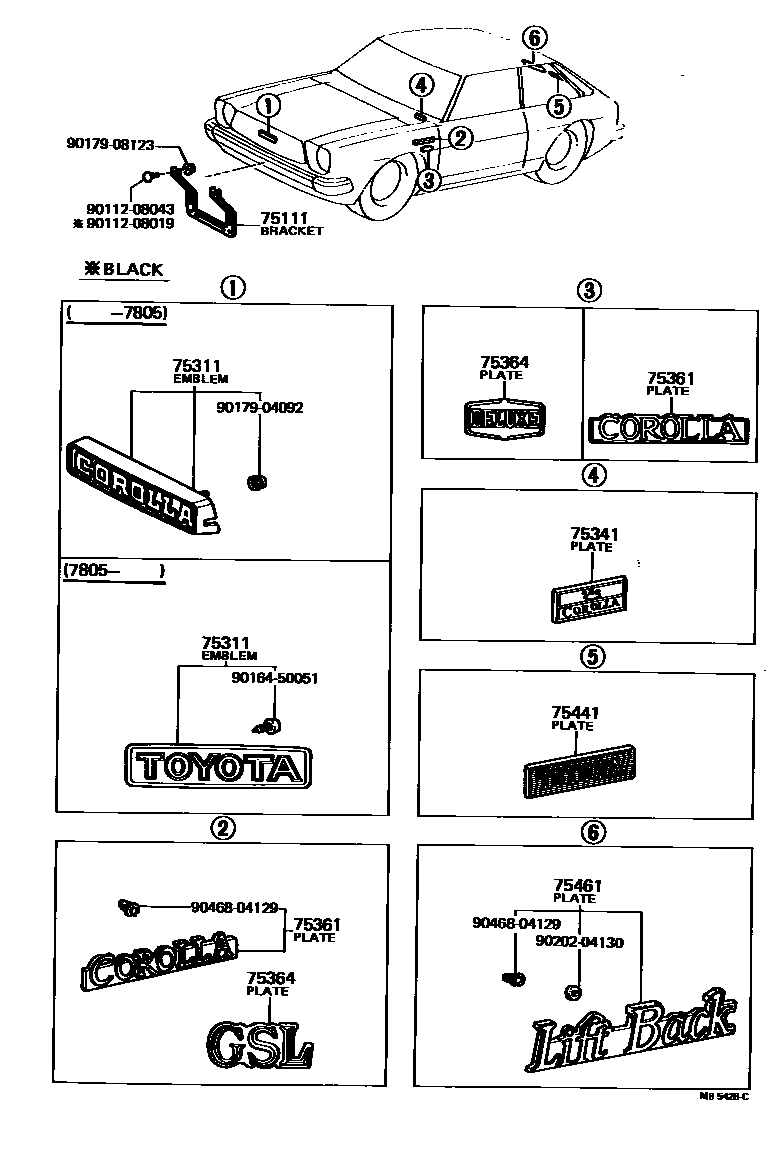

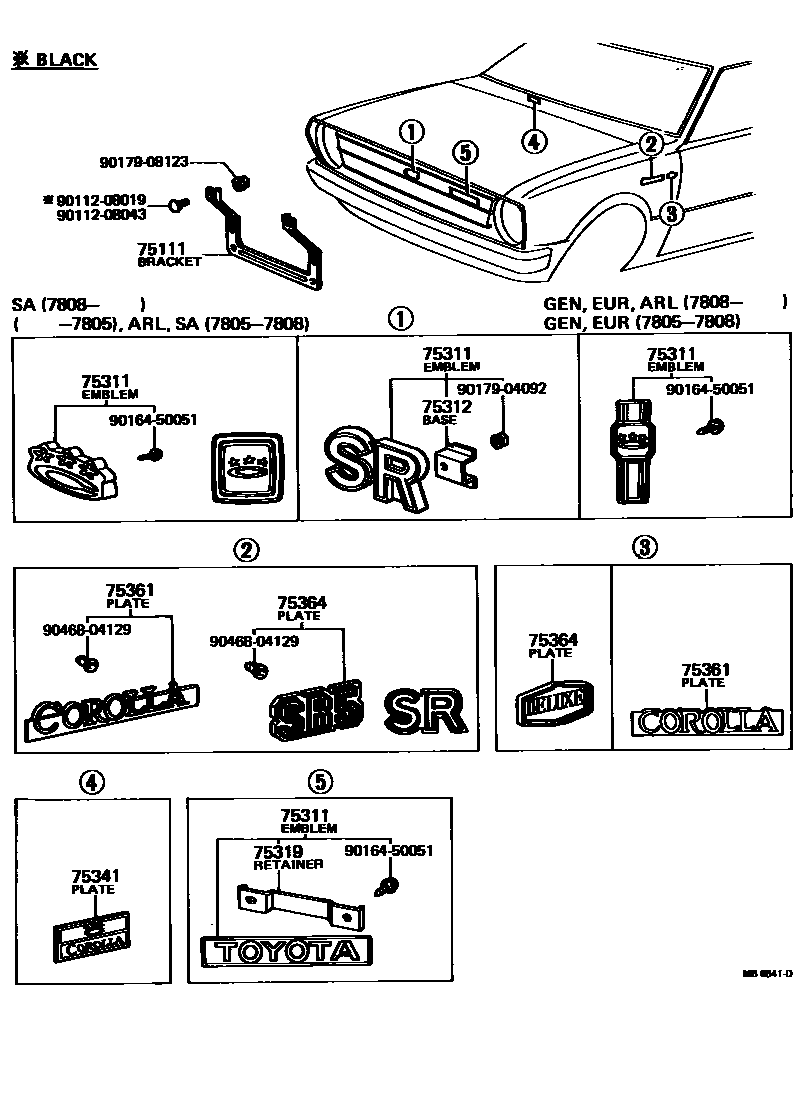

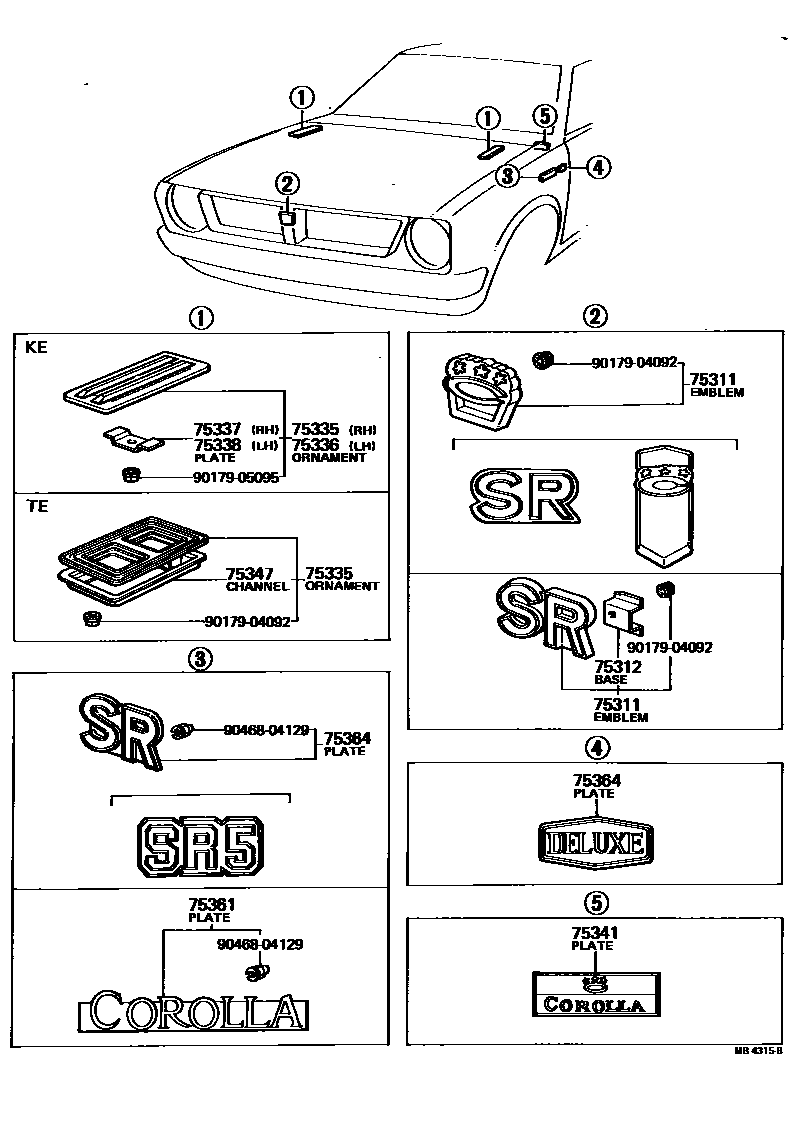

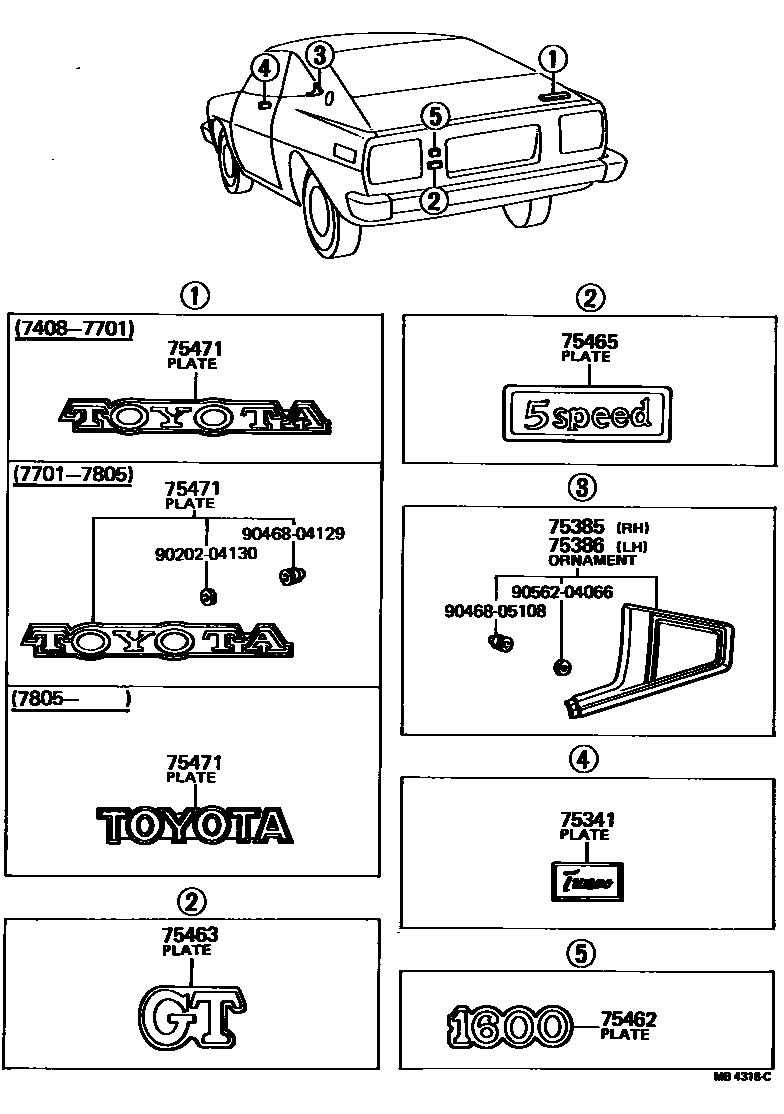

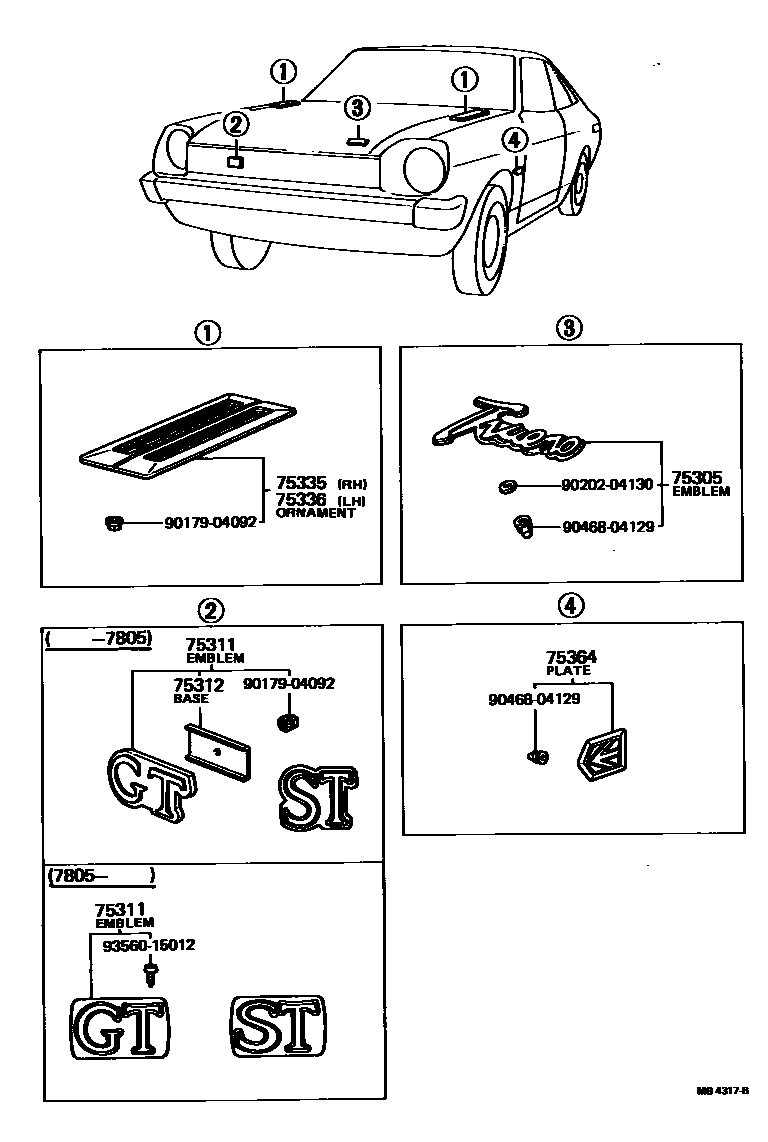

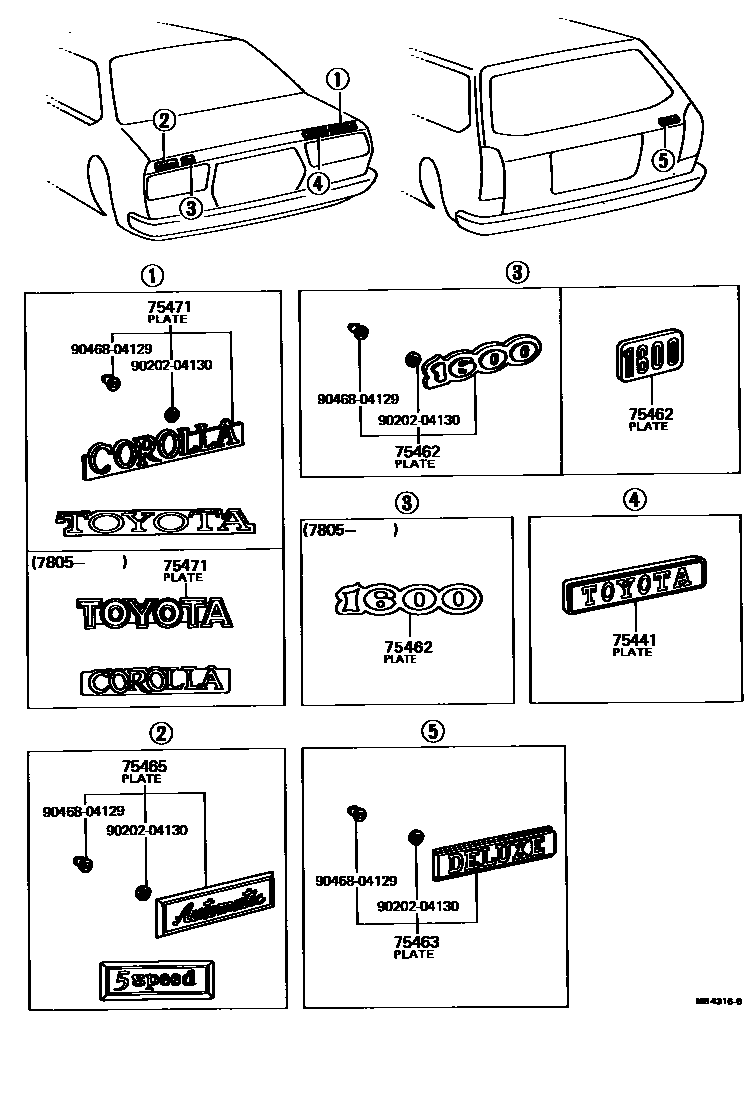

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75111 | front license plate bracket | 75111-12040 |
| 75305 | engine cover plate | 75341-12070 |
| 75311 | Radiator grille (or front panel) plate | 75301-19035 · 75301-19045 · 75301-19095 · 75301-19105 · 75311-19245 · 75311-19255 · 75311-19295 · 75311-19305 · 75311-19345 · 75311-19375 · 75311-19415 · 75311-19545 · 75311-19575 · 75311-19645 · 75311-19655 |
| 75312 | Radiator grille plate base | 75318-12020 · 75324-12010 · 75324-12011 |
| 75319 | Radiator grille (or front panel) nameplate fixings | 75318-12060 |
| 75335 | Engine cover decoupling right trim part | 75033-19035 · 75335-19085 · 75335-19086 |
| 75336 | Engine cover unhook left trim part | 75034-19035 · 75336-19085 · 75336-19086 |
| 75337 | Engine hood unhook right trim lower panel | 75491-12010 |
| 75338 | Engine cover unhook left trim lower panel | 75491-12010 |
| 75341 | Instrument panel nameplate No. 1 | 55511-12080 · 55511-12130 |
| 75347 | Engine cover unhook right trim drain channel | 75303-12010 |
| 75361 | Front fender No. 1 nameplate (model mark) | 75361-12080 · 75441-13030 |
| 75364 | Front fender No. 2 nameplate (grade mark) | 75361-12050 · 75361-12110 · 75362-12160 · 75362-12220 · 75362-12230 |
| 75441 | No. 1 rear nameplate | 75441-12230 · 75444-12030 |
| 75461 | No. 2 rear nameplate (model mark) | 75441-12170 |
| 75462 | No. 3 rear nameplate (displacement) | 75442-12530 · 75443-12060 · 75443-12080 · 75462-12020 |
| 75463 | No. 4 rear nameplate (grade mark) | 75441-13010 · 75443-12070 |
| 75465 | No. 5 rear nameplate (organization) | 75442-12510 · 75442-12520 · 75442-12540 · 75442-12550 · 75442-12630 · 75442-12640 · 75461-12020 |
| 75471 | Rear body No. 1 nameplate (model mark) | 75441-12080 · 75441-12090 · 75441-12140 · 75441-12150 · 75441-12160 · 75441-12210 · 75441-12230 · 75441-12250 |
